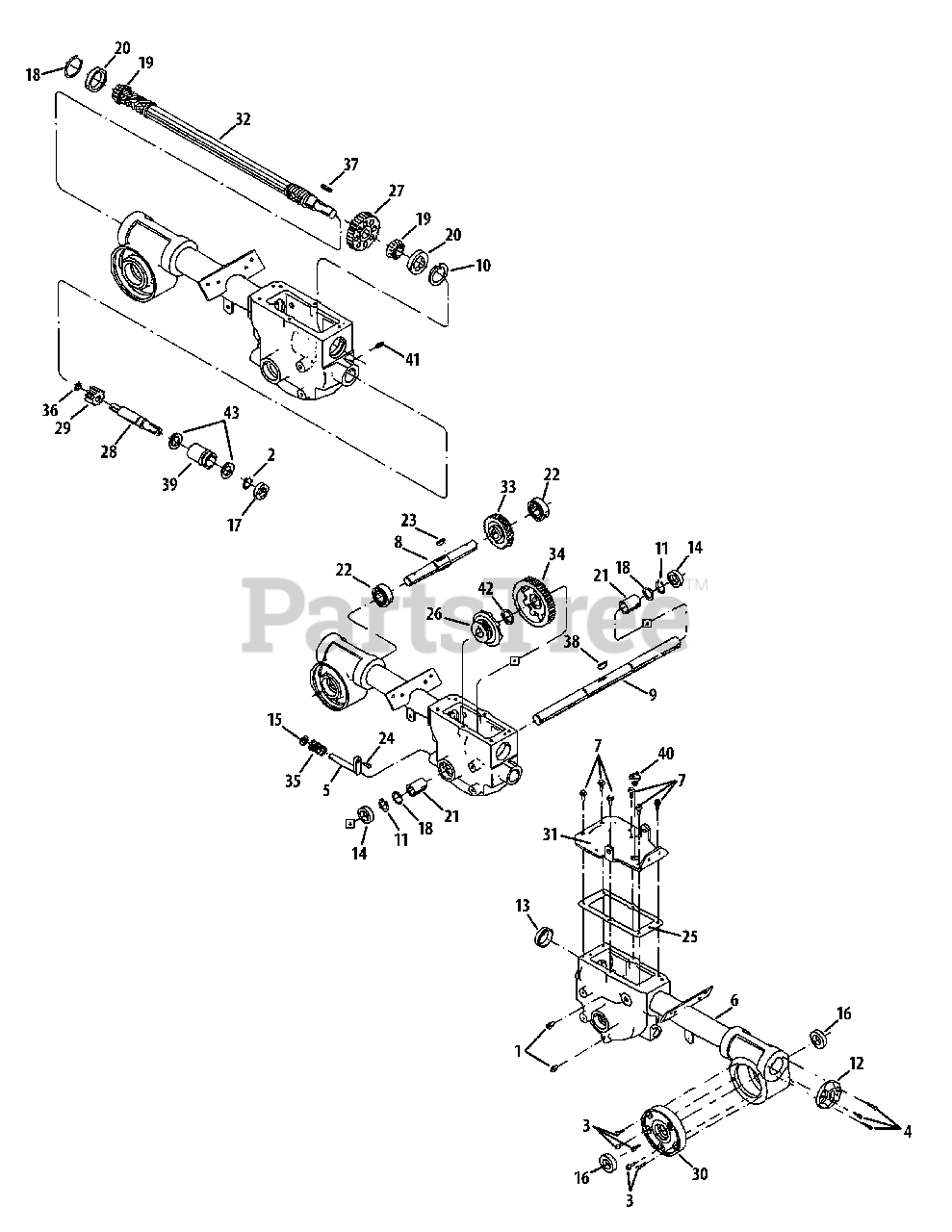

Troy-Bilt 21A-662G766 - Troy-Bilt Pony Rear-Tine Tiller (2015) Transmission Parts Lookup with Diagrams

1

Troy-Bilt 1105620

Pipe Plug

$4.49

$

In Stock, only 3 left!

2

Troy-Bilt 916-0101

Retaining Ring

(Superseded to 716-0101) 

$3.99

$

In Stock, Qty 20+

3

Troy-Bilt 1915068

Hex Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

4

Troy-Bilt 1915069

Self-Sealing Screw, 1/4-20 x .875

$4.49

$

In Stock, only 3 left!

5

Troy-Bilt 611-04002

Eccentric Shaft

$81.99

$

In Stock, only 1 left!

6

Troy-Bilt 919-04010

Transmission Housing

$456.99

$

Usually ships in 3-6 days

7

Troy-Bilt 710-04043

Hex Flange Screw, 5/16-18 x .750

$4.49

$

Usually ships in 3-6 days

8

Troy-Bilt GW-20896

Tiller Shaft

$110.99

$

In Stock, only 1 left!

9

Troy-Bilt 911-04482

Wheel Shaft

$134.99

$

Usually ships in 3-6 days

10

Troy-Bilt 716-04102

Retaining Ring

$4.49

$

In Stock, Qty 20+

11

Troy-Bilt 716-04104

Retaining Ring

$4.49

$

In Stock, Qty 20+

12

Troy-Bilt 718-04406

Rear Bearing Cover

$50.99

$

In Stock, Qty 5

13

Troy-Bilt 721-04001

Oil Seal, 1.79 x .25

$10.99

$

In Stock, only 3 left!

14

Troy-Bilt 921-04031

Oil Seal, 1.0 x 1.499

$10.99

$

In Stock, Qty 20+

15

Troy-Bilt 921-04034

Oil Seal, .625 x 1.0

$10.99

$

In Stock, Qty 20+

16

Troy-Bilt 921-04035

Oil Seal, .984 x 1.75

$11.99

$

In Stock, Qty 20+

17

Troy-Bilt 921-04044

Oil Seal, .750 x 125

$9.49

$

In Stock, Qty 20+

18

Troy-Bilt 736-04258

Washer, 1.375 x 1.015 x .01

Note: (The flat washers listed are used as required to obtain .005 to .030 in allowable end play on the wheel shaft and tine shaft and a .005 to .015 in end play on the drive shaft.)

$3.99

$

In Stock, Qty 20+

18

Troy-Bilt 736-04259

Washer, 1.375 x 1.015 x .015

Note: (The flat washers listed are used as required to obtain .005 to .030 in allowable end play on the wheel shaft and tine shaft and a .005 to .015 in end play on the drive shaft.)

$6.99

$

In Stock, Qty 5

18

Troy-Bilt 736-04260

Washer, 1.375 x 1.015 x .03

Note: (The flat washers listed are used as required to obtain .005 to .030 in allowable end play on the wheel shaft and tine shaft and a .005 to .015 in end play on the drive shaft.)

$6.99

$

In Stock, only 2 left!

18

Troy-Bilt 736-04305

Washer, 1.75 x 1.5 x .062

Note: (The flat washers listed are used as required to obtain .005 to .030 in allowable end play on the wheel shaft and tine shaft and a .005 to .015 in end play on the drive shaft.)

$3.99

$

In Stock, Qty 13

18

Troy-Bilt 736-04306

Washer, 1.75 x 1.5 x .005

Note: (The flat washers listed are used as required to obtain .005 to .030 in allowable end play on the wheel shaft and tine shaft and a .005 to .015 in end play on the drive shaft.)

$4.49

$

In Stock, Qty 20+

18

Troy-Bilt 736-04307

Washer, 1.75 x 1.5 x .03

Note: (The flat washers listed are used as required to obtain .005 to .030 in allowable end play on the wheel shaft and tine shaft and a .005 to .015 in end play on the drive shaft.)

$4.49

$

In Stock, only 3 left!

18

Troy-Bilt 736-04308

Washer, 1.75 x 1.5 x .01

Note: (The flat washers listed are used as required to obtain .005 to .030 in allowable end play on the wheel shaft and tine shaft and a .005 to .015 in end play on the drive shaft.)

$4.49

$

In Stock, Qty 20+

18

Troy-Bilt 736-04309

Washer, 1.375 x 1.015 x .062

Note: (The flat washers listed are used as required to obtain .005 to .030 in allowable end play on the wheel shaft and tine shaft and a .005 to .015 in end play on the drive shaft.)

$4.49

$

In Stock, Qty 20+
