21A-654J766 - Troy-Bilt Rear-Tine Tiller (2004) Wheels And Tines Parts Diagram

Rear-Tine Tiller

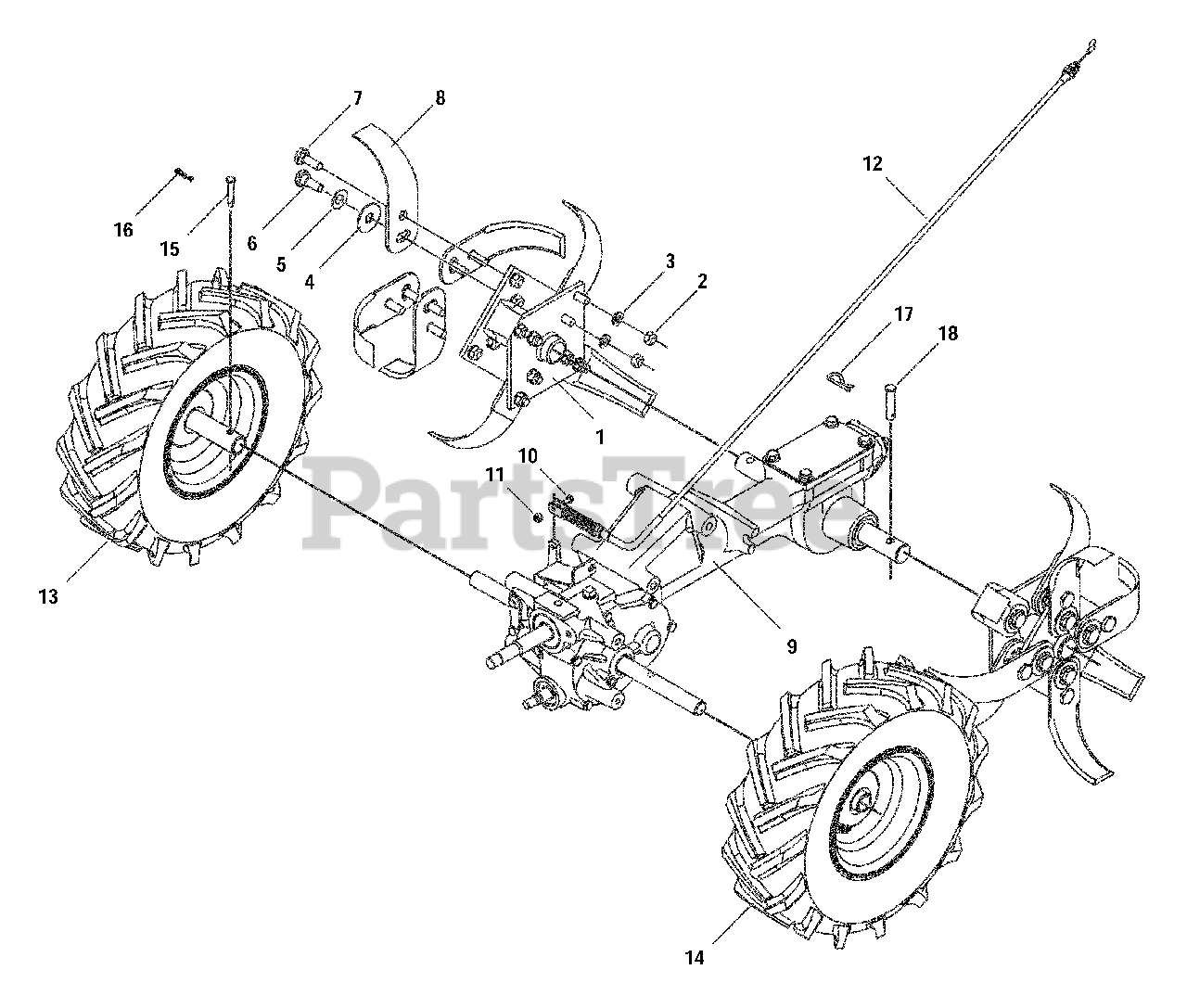

Wheels And Tines Parts Diagram

  • Title

1

Troy-Bilt 642-04015

Adapter Assembly, Tine

$

$

Currently unavailable

2

Troy-Bilt 712-3054

Nut, 3/8-24, Hex, Lock

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 736-0169

Washer, Lock, 3/8, Regular Duty

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-0208

Washer, Flat,.51 x 1.5 x.07

$4.49

$

In Stock, Qty 9

0

5

Troy-Bilt 736-0253

Washer, Bell,.525 x 1.00 x.050

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 738-0688

Screw, Shld 1/2 Dia x.325
(Superseded to 938-0688)

$9.99

$

In Stock, Qty 15

0

7

Troy-Bilt 738-0689

Screw, Shld 1/2 Dia x.180, 3/8-2
(Superseded to 938-0689)

$8.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 742-0305

Tine, Articulating
(Superseded to 742-0305A-0637)

Variations

Troy-Bilt 742-0305-0637

Articulating Tine, Black - POWDER BLACK (0637)

$20.99

$

In Stock, Qty 20+

0

$20.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 618-04120

Transmission Assembly, Dual Direction

$

$

Currently unavailable

10

Troy-Bilt 710-1194

Screw, Machine, #10-24, 1.00, Gr5

$3.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 712-0161

Nut, Hex Lock, #10-24, Gr2, Nylon

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 746-04150

Cable, Shift, Wheel

$

$

Currently unavailable

13

MTD 634-0240

Wheel, Complete, 14 x 4.5 x 6, RH, Gray

$

$

Not available

14

Troy-Bilt 634-0241

Wheel, Complete, 14 x 4.5 x 6, LH, Gray

$

$

Not available

15

Troy-Bilt 711-1017

Pin, Clevis,.250 x 1.53

$7.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 714-0104

Pin, Cotter,.072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

18

Troy-Bilt 711-0415

Pin, Clevis, 3/8, 1.75

$4.99

$

In Stock, Qty 18

0
