21A-654J766 - Troy-Bilt Rear-Tine Tiller (2004) Handlebar And Controls Parts Diagram

Rear-Tine Tiller

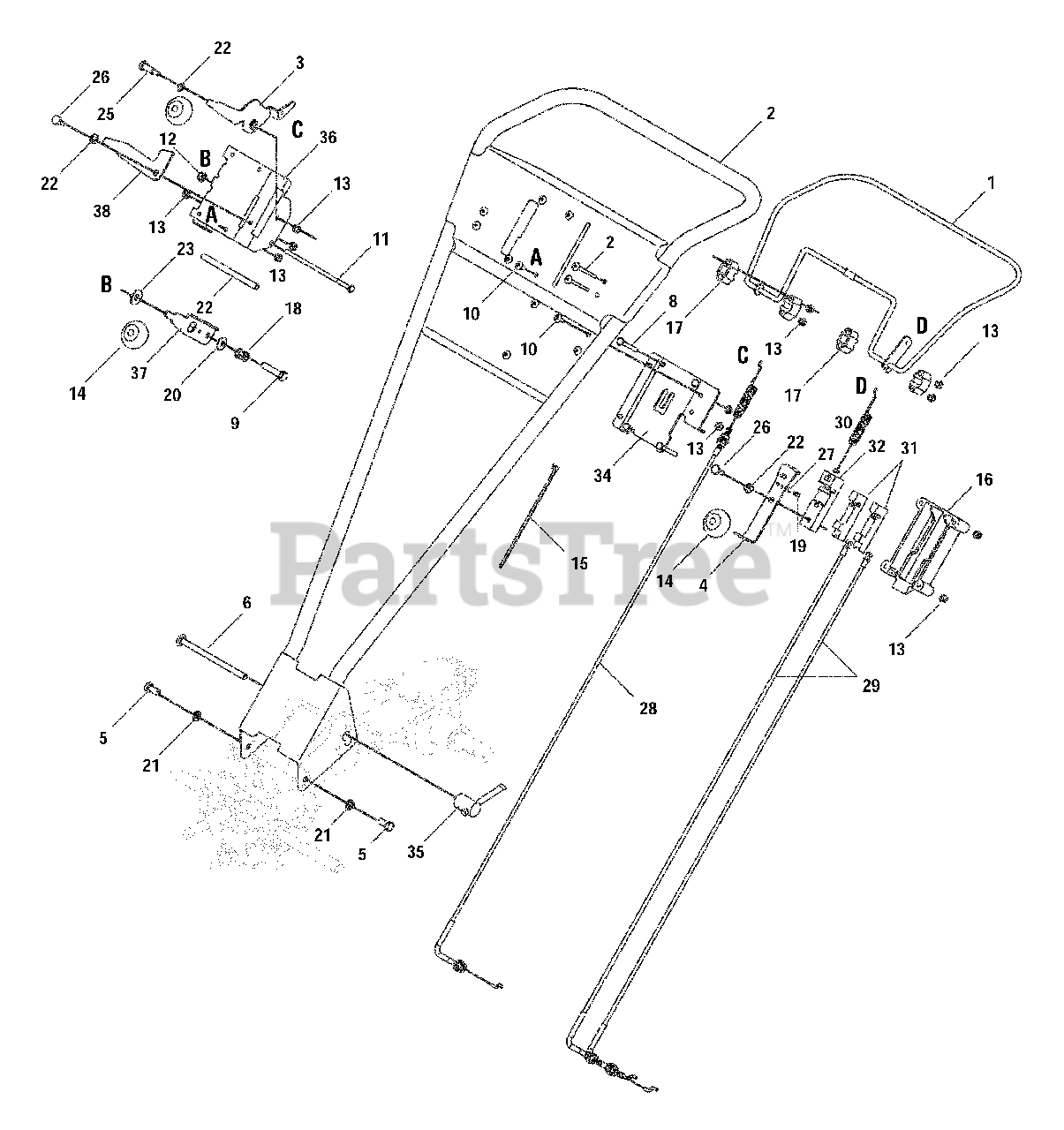

Handlebar And Controls Parts Diagram

  • Title

1

Troy-Bilt 647-04026

Bail Assembly, Control, Wheel

$

$

Currently unavailable

2

Troy-Bilt 649-04014

Handle Assembly, Loop

$

$

Currently unavailable

3

Troy-Bilt 686-04038

Lever Assembly, Control, Tine

$

$

Currently unavailable

4

Troy-Bilt 686-04040

Lever Assembly, Pivot

$

$

Currently unavailable

5

Troy-Bilt 710-0216

Hex Screw, 3/8-16,.75, Gr5

$4.49

$

In Stock, Qty 15

0

6

Troy-Bilt 710-04198

Screw, Carriage, 3/8-16, 6.00, Gr5

$

$

Currently unavailable

7

Troy-Bilt 710-04202

Screw, Machine, 1/4-20, 2.500

$

$

Currently unavailable

8

Troy-Bilt 710-0501

Hex Screw, 1/4-20, 2.0, Gr5

$7.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0539

Hex Screw, 3/8-24, 1.75, Gr5

$4.99

$

In Stock, Qty 11

0

10

Troy-Bilt 710-0946

Screw, Machine, 1/4-20, 0.625

$3.99

$

Usually ships in 3-6 days

0

11

MTD 710-1656

Hex Screw, 1/4-20, 6.00, Gr5

$

$

Not available

12

Troy-Bilt 712-0116

Nut, Jam Lock, 3/8-24, Gr5, Nylon

$4.99

$

In Stock, Qty 6

0

13

Troy-Bilt 712-0324

Nut, Hex Lock, 1/4-20, Gr8, Nylon

$3.99

$

In Stock, Qty 16

0

14

Troy-Bilt 720-04039

Knob, Shift

$10.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 725-0157

Cable, Tie, 3/16 x.05 x 7.4

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 731-04616

Box, Control, Select, Tine

$

$

Currently unavailable

17

Troy-Bilt 731-04644

Block, Mounting, Bail

$

$

Currently unavailable

18

Troy-Bilt 732-0193

Spring, Compression,.39x.60 x.88 Lg

$4.99

$

In Stock, Qty 6

0

19

Troy-Bilt 732-0590A

Spring, Compression

$3.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 736-0105

Washer, Bell,.375 x.870 x.063

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-0169

Washer, Lock, 3/8, Regular Duty

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-3012

Washer, Wave,.390 x.625 x.016
(Superseded to 736-0413)

$6.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 736-3052

Washer, Flat,.406 x 1.00 x.105

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 738-04072

Screw, Shoulder,.373 x.830, 1/4-20

$

$

Currently unavailable

26

Troy-Bilt 738-04088

Screw, Shoulder,.373 x.180 x 1/4-20

$

$

Currently unavailable

27

Troy-Bilt 741-0862

Ball, Detent,.250

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 746-04098

Cable, Clutch, Drive, Wheel

$

$

Currently unavailable

29

Troy-Bilt 746-04099

Cable, Clutch, Drive, Tine

$

$

Currently unavailable

30

Troy-Bilt 746-04100

Cable, Engagement, Tine

$

$

Currently unavailable

31

Troy-Bilt 746-04107

Block, Control, Select, Tine

$

$

Currently unavailable

32

Troy-Bilt 746-04108

Block, Control, Engage, Tine

$

$

Currently unavailable

33

Troy-Bilt 750-04226

Spacer,.270 x.375 x 5.00 Lg

$

$

Currently unavailable

34

Troy-Bilt 786-04162

Bracket, Mounting, Control

$

$

Currently unavailable

35

Troy-Bilt 786-04199

Crank, Adjustment, Handle

$

$

Currently unavailable

36

Troy-Bilt 786-04212

Bracket, Mounting, Control

$

$

Currently unavailable

37

Troy-Bilt 786-04213

Lever, Shift

$

$

Currently unavailable

38

Troy-Bilt 786-04214

Bracket, Pivot, Interlock

$

$

Currently unavailable
