21A-654J766 - Troy-Bilt Rear-Tine Tiller (2004) Drive System Parts Diagram

Rear-Tine Tiller

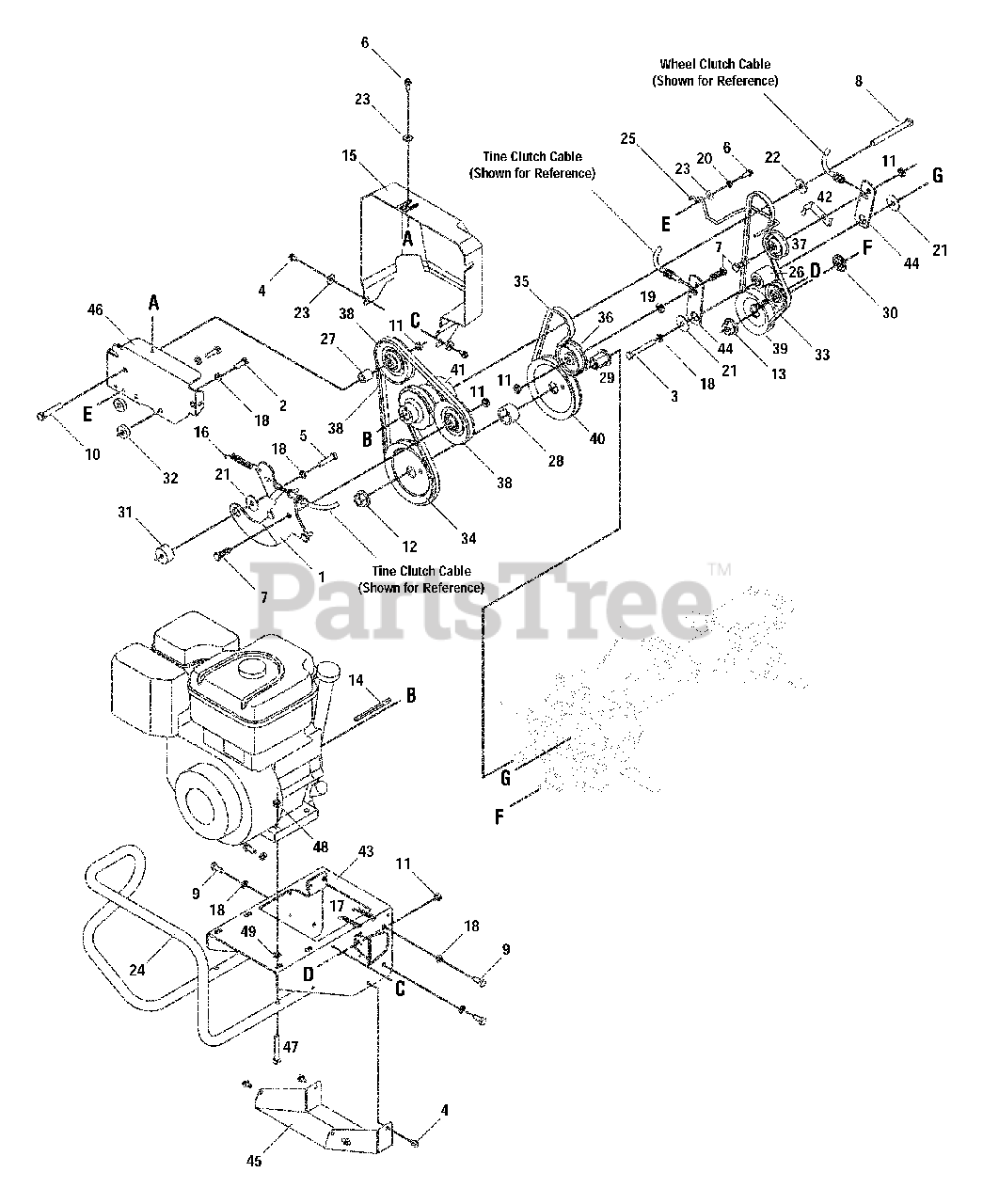

Drive System Parts Diagram

  • Title

1

Troy-Bilt 686-04034

Bracket Assembly, Clutch

$

$

Currently unavailable

2

Troy-Bilt 710-0117

Hex Screw, 5/16-24, 1.00, Gr5
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 5

0

3

Troy-Bilt 710-0378

Hex Screw, 5/16-18, 2.50, Gr5

$4.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0624

Hex Screw, 5/16-24, 1.50, Gr5

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0642

Screw, Self-tapping, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0723

Hex Screw, 3/8-16, 1.25, Gr5

$4.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 710-0902

Hex Screw, 3/8-24, 3.75, Gr5

$7.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-3008

Hex Screw, 5/16-18,.75, Gr5

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-3144

Hex Screw, 3/8-16, 2.00, Gr5

$4.49

$

In Stock, Qty 7

0

11

Troy-Bilt 712-0266

Nut, Jam Lock, 3/8-16, Gr2
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

12

Troy-Bilt 712-0700

Nut, Flange, 9/16-18, Gr2

$10.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 712-0702

Nut, Flange, 7/16-20, Gr2
(Superseded to 912-0702)

$18.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 714-04032

Key, Sq,.1875 x 3.625

$

$

Currently unavailable

15

Troy-Bilt 731-04590

Cover, Belt

$

$

Currently unavailable

16

Troy-Bilt 732-0320

Spring, Extension,.38 x 3.25
(Superseded to 932-0320)

$10.99

$

In Stock, only 1 left!

0

17

MTD 732-0545

Extension Spring.35 x 1.14
(Superseded to 932-0545)

$

$

Not available

18

Troy-Bilt 736-0119

Washer, Lock, 5/16, Regular Duty
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0185

Washer, Flat,.375 x.738 x.063

$3.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 736-0329

Washer, Lock, 1/4, Regular Duty
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

21

Troy-Bilt 736-0362

Washer, Flat,.330 x 1.25 x.06, Ht

$4.49

$

In Stock, Qty 9

0

22

Troy-Bilt 736-0452

Washer, Bell,.396 x 1.140 x.095

$4.99

$

In Stock, Qty 7

0

23

Troy-Bilt 736-3090

Washer, Flat,.260 x.720 x.060

$6.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 1918749

Bumper

$

$

Currently unavailable

25

Troy-Bilt 747-04191

Keeper, Belt

$

$

Currently unavailable

26

Troy-Bilt 750-04221

Spacer,.330 x 1.25 x 1.605

$

$

Currently unavailable

27

Troy-Bilt 750-04223

Spacer,.390 x.750 x.812

$

$

Currently unavailable

28

Troy-Bilt 750-04225

Spacer, 1.030 x 1.375 x.830 Lg

$

$

Currently unavailable

29

Troy-Bilt 750-04258

Hub, Pulley, Input, 5/8

$

$

Currently unavailable

30

Troy-Bilt 750-04259

Hub, Pulley, Input, 1/2

$

$

Currently unavailable

31

Troy-Bilt 750-04261

Spacer,.330 x 1.250 x.845

$

$

Currently unavailable

32

Troy-Bilt 750-0943

Spacer.33 x 1.0 OD

$

$

Currently unavailable

33

Troy-Bilt 754-0346

V-belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 6

0

34

Troy-Bilt 754-04036

Belt
(Superseded to 954-04036)

$

$

Not available

35

Troy-Bilt 754-04056

Belt
(Superseded to 954-04056)

$

$

Not available

36

MTD 756-0137

Pulley, Idler, Flat w/ Flange 2.25 OD

$

$

Not available

37

Troy-Bilt 756-0313

Pulley, Idler, Flat 1.88 OD

$26.99

$

In Stock, Qty 6

0

38

Troy-Bilt 756-0399

Pulley, Idler, V-type 3.5 Dia
(Superseded to 956-0399)

$50.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 756-04081

Pulley, 3l, 3.088 Eff Dia

$

$

Currently unavailable

40

Troy-Bilt 756-04082

Pulley, 4l, 5.0 Eff Dia

$

$

Currently unavailable

41

Troy-Bilt 756-04090

Pulley, Engine, 3 Belt

$

$

Currently unavailable

42

Troy-Bilt 786-0149

Keeper, Belt, Idler

$9.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 786-04177

Frame, Engine

$

$

Currently unavailable

44

Troy-Bilt 786-04178

Bracket, Clutch, Forward

$

$

Currently unavailable

45

Troy-Bilt 786-04180

Cover, Bottom, Frame, Engine

$

$

Currently unavailable

46

Troy-Bilt 786-04182

Bracket, Mounting, Cover, Belt

$

$

Currently unavailable

47

Troy-Bilt 710-0395

Hex Screw, 5/16-18, 2.25, Gr5

$4.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 712-0429

Nut, Hex Lock, 5/16-18, Gr5, Nylon

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 726-0201

Nut, Speed,.3125 ID

$6.99

$

Usually ships in 3-6 days

0
