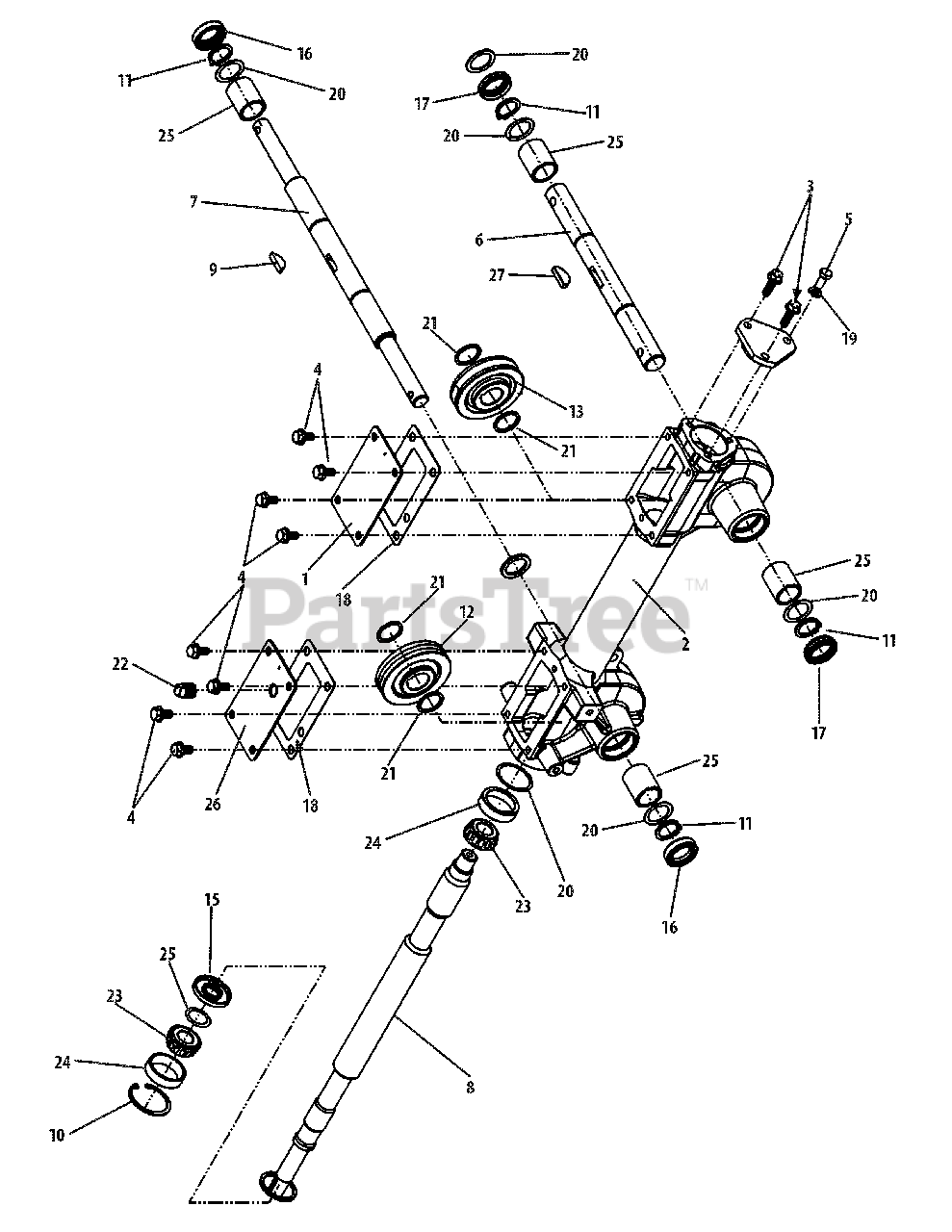

21A-64M1011 - Troy-Bilt Bronco CRT Tiller (2008) Transmission Assembly Parts Diagram

Bronco CRT Tiller

Transmission Assembly Parts Diagram

  • Title

1

Troy-Bilt 1918377

Cover Housing
(Superseded to 1916109001)

$

$

Not available

2

Troy-Bilt 619-04013

Transmission Housing
(Superseded to 919-04013)

$211.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-04048

Hex Head Flange Screw

$4.99

$

In Stock, Qty 7

0

4

Troy-Bilt 710-04049

Hex Head Flange Screw

$4.99

$

In Stock, Qty 11

0

5

Troy-Bilt 710-3008

Hex Screw

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 711-04078

Tiller Shaft
(Superseded to 911-04078)

$141.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 711-04486

Wheel Shaft
(Superseded to 911-04486)

$71.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 711-04882

Drive Shaft
(Superseded to 911-04882)

$

$

Not available

9

Troy-Bilt 714-04059

Hi-Pro Key

$6.99

$

In Stock, Qty 8

0

10

Troy-Bilt 716-04102

Retaining Ring

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 716-04104

Retaining Ring

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 717-04380

Worm Gear, 61T
(Superseded to 917-04380)

$157.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 717-04381

Worm Gear, 30T
(Superseded to 917-04381)

$145.99

$

In Stock, only 3 left!

0

14

Troy-Bilt 718-04008

Rear Bearing Cover
(Superseded to 918-04435)

$22.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 721-04030

Oil Seal, .75 x 1.783
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 721-04031

Oil Seal, 1.0 x 1.499
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 721-04036

Oil Seal, 1.0 x 1.5
(Superseded to 921-04036)

$18.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 721-04229

Gear Housing Gasket
(Superseded to 921-04229)

$6.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-04309

Flat Washer, 1.375 x 1.015 x .062

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-04308

Flat Washer, 1.5 x 1.75 x .01

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-04307

Flat Washer, 1.5 x 1.75 x .03

$4.49

$

In Stock, only 3 left!

0

20

Troy-Bilt 736-04306

Flat Washer, 1.5 x 1.75 x .005

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-04305

Flat Washer, 1.5 x 1.75 x .062

$3.99

$

In Stock, Qty 16

0

20

Troy-Bilt 736-04304

Flat Washer, 1.25 x .75 x .06

$4.49

$

In Stock, Qty 12

0

20

Troy-Bilt 736-04260

Flat Washer, 1.015 x 1.375 x .03

$6.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 736-04259

Flat Washer, 1.015 x 1.375 x .015

$6.99

$

In Stock, Qty 5

0

20

Troy-Bilt 736-04258

Flat Washer, 1.015 x 1.375 x .01

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-04257

Flat Washer, 1.015 x 1.375 x .005

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-04310

Flat Washer, 1.015 x 1.234 x .062

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 737-04202

Pipe Plug

$6.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 741-04298

Cone Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

24

Troy-Bilt 741-04299

Cup Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 741-04300

Bushing, 1.005 x 1.25 x 1.5
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 8

0

26

Troy-Bilt 786-04359

Transmission Cover

$24.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt GW-1104

Woodruff Key, .25 x 1.12

$9.49

$

In Stock, Qty 20+
