21A-645A063 - Troy-Bilt Rear-Tine Tiller (2003) Handlebar Parts Diagram

Rear-Tine Tiller

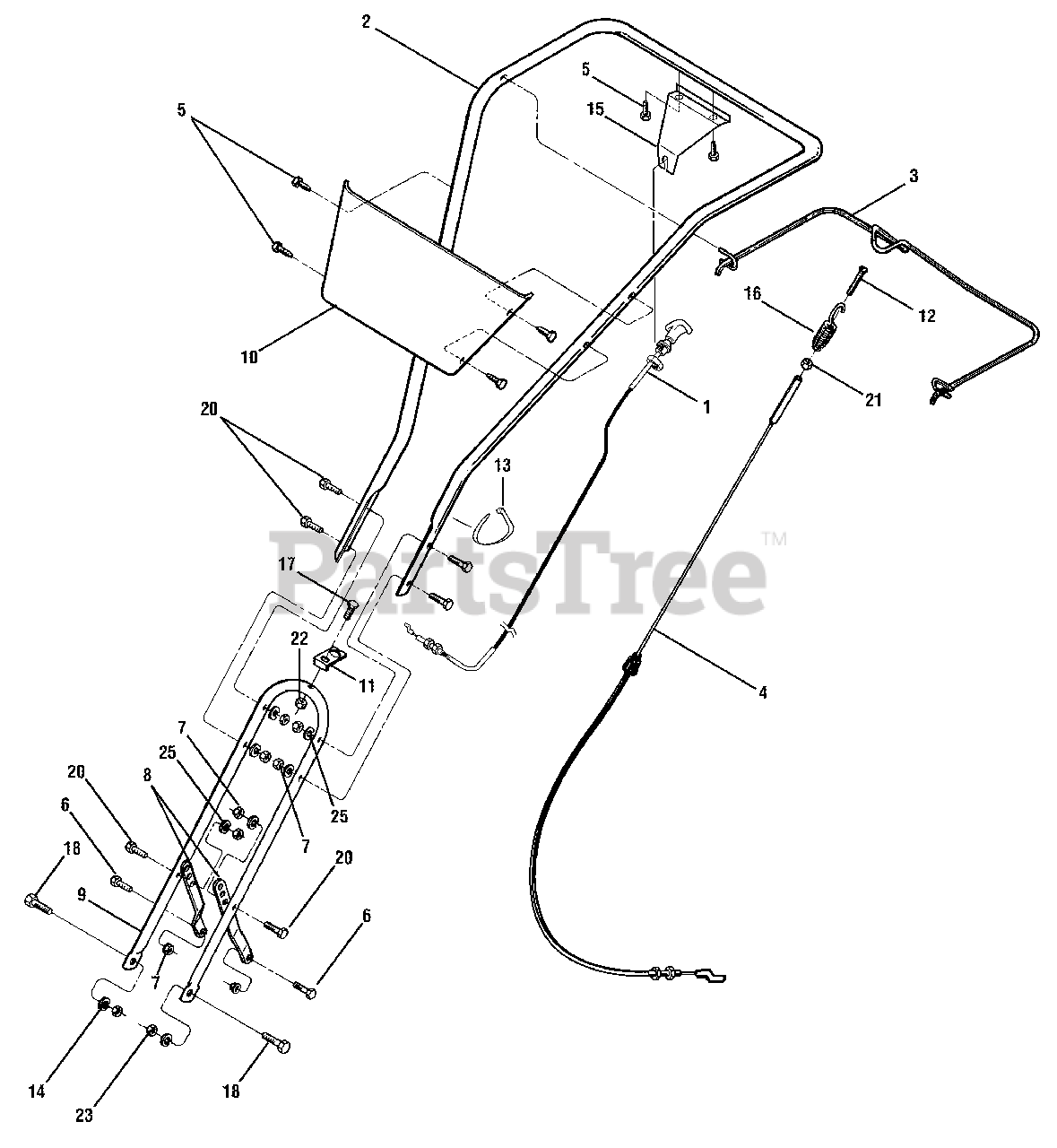

Handlebar Parts Diagram

  • Title

1

Troy-Bilt 1916719

Cable Assembly, Reverse Clutch
(Superseded to 946-04058)

$60.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 1916996

Upper Handlebar
(Superseded to 749-04084-0638)

$110.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt GW-55104

Bail, Forward Clutch
(Superseded to 749-04084-0638)

$110.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 1918745

Cable Assembly, Forward Clutch
(Superseded to 946-04208)

$38.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0599

Screw, Self-Tapping,1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3008

Screw, Hex, 5/16-18 x 3/4

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-3009

Hex Lock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt GW-55042

Handlebar Support
(Superseded to 1916107001)

$

$

Not available

9

Troy-Bilt GW-55043

Lower Handlebar
(Superseded to 753-06459A)

$89.99

$

In Stock, Qty 10

0

10

MTD GW-55102

Panel

$

$

Not available

11

Troy-Bilt GW-55044

Tab, Conduit Mount

$19.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9855

Screw, #10-24 x 2
(Superseded to 710-04163)

$

$

Not available

13

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 736-3050

Flat Washer, 3/8

$4.49

$

In Stock, Qty 16

0

15

Troy-Bilt 1916674001

Bracket, Reverse Clutch Cable
(Superseded to 786-04040-0637)

$

$

Not available

16

Troy-Bilt 1916712

Spring, Forward Clutch
(Superseded to 732-04185)

$7.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 710-0106

Hex Hd. Screw, 1/4-20 x 1-1/4

$3.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 710-0216

Screw, Hex, 3/8-16 x 3/4

$4.49

$

In Stock, Qty 16

0

20

Troy-Bilt 710-0805

Screw, Hex, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

21

Troy-Bilt 712-0121

Hex Nut, #10-24

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-0291

Hex Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 8

0

23

Troy-Bilt 712-3000

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

25

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
