21A-644H766 - Troy-Bilt Rear-Tine Tiller (2004) Tines & Wheels Parts Diagram

Rear-Tine Tiller

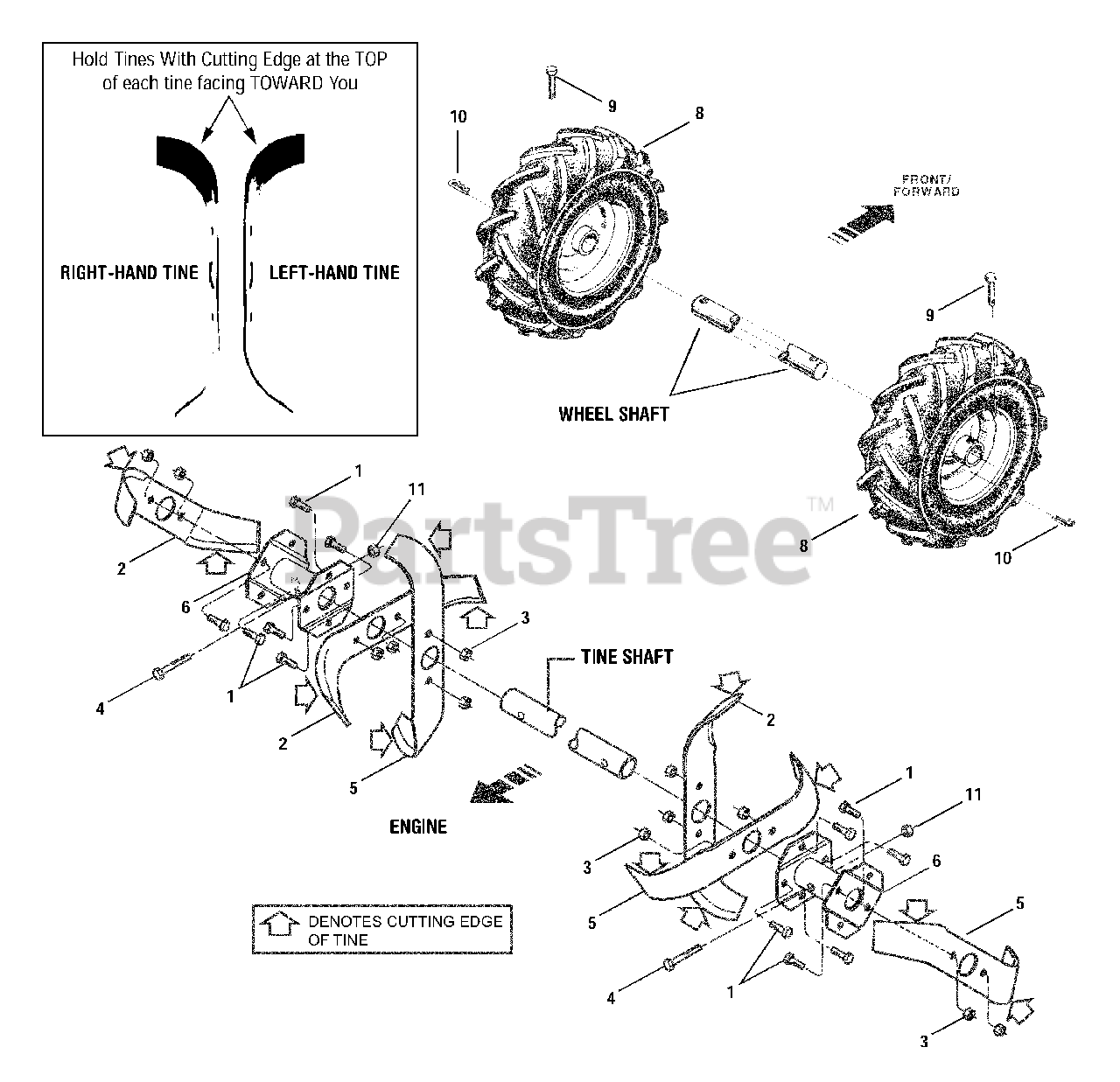

Tines & Wheels Parts Diagram

  • Title

1

Troy-Bilt 710-3008

Hex Hd. Screw, 5/16-18 x 3/4, Grade 5

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 1817060

Single Tine - Right Hand
(Superseded to 742-04032-0637)

$26.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 712-3009

Hex Lock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-3096

Hex Hd. Screw, 3/8-16 x 2

$7.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 1817059

Single Tine - Left Hand
(Superseded to 742-04033-0637)

$26.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1916702

LH Tine Holder

$

$

Currently unavailable

7

Troy-Bilt 1916703

RH Tine Holder

$

$

Currently unavailable

8

MTD 1917487

Wheel & Tire Ass'y - Left/Right Side
(Superseded to 634-04202-0911)

$

$

Not available

9

Troy-Bilt GW-9380

Clevis Pin,.312" x 1-3/4"
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

10

Troy-Bilt GW-9338

Hair Pin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 712-3000

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

Troy-Bilt 642-04005

RH Tine Assembly

Note: (Incl. two RH tines and one LH tine assembled to RH tine holder)

$

$

Currently unavailable

Troy-Bilt 642-04006

LH Tine Assembly

Note: (Incl. two LH tines and one RH tine assembled to LH tine holder)

$

$

Currently unavailable
