21A-643C766 - Troy-Bilt Bronco CRT Tiller (2006) Drive Shaft Parts Diagram

Bronco CRT Tiller

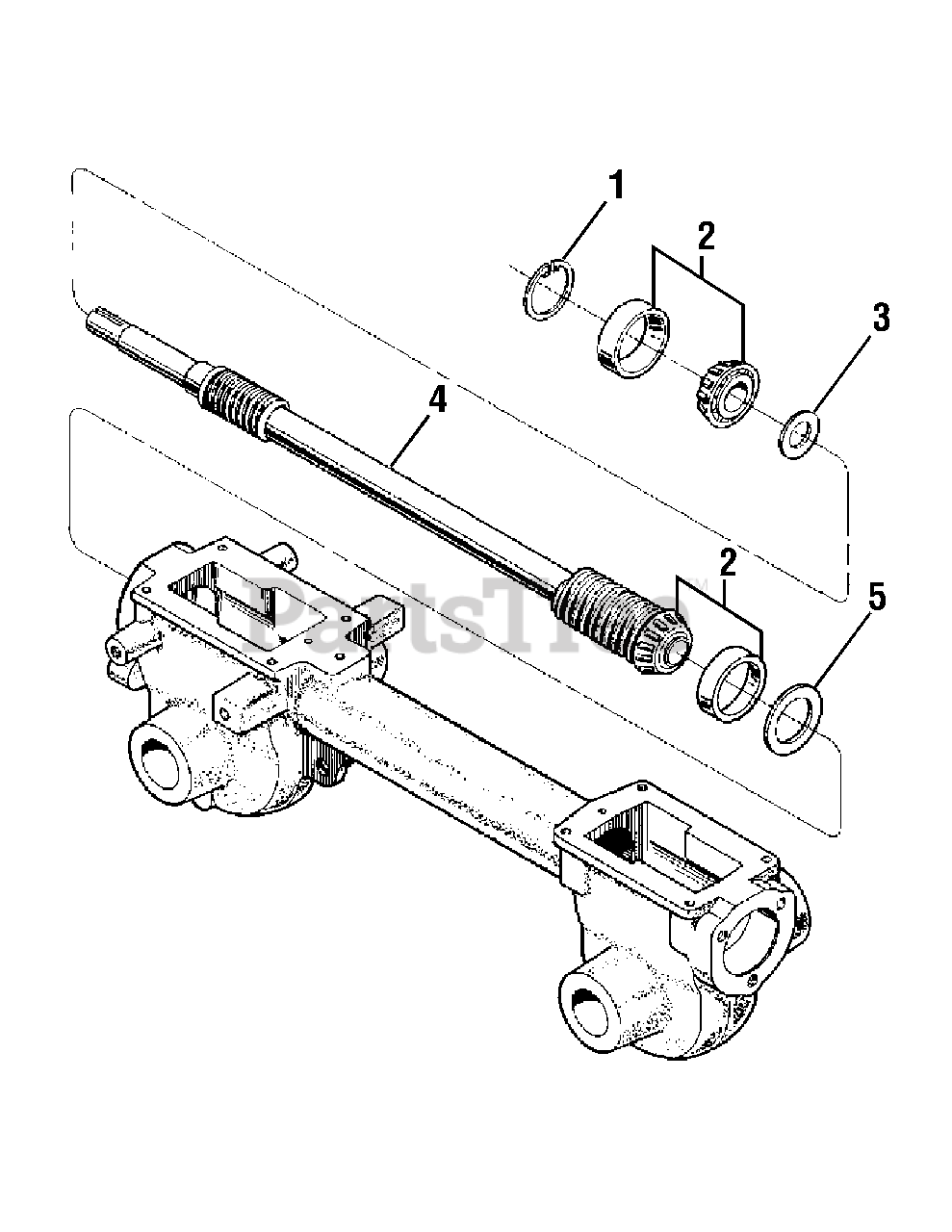

Drive Shaft Parts Diagram

  • Title
1

Troy-Bilt GW-9517

Snap Ring
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt GW-1714

Bearing, Tapered Roller (with race)
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

3

Troy-Bilt GW-50043

Support Washer, Rear
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 12

0

4

Troy-Bilt 711-04110

Drive Shaft
(Superseded to 911-04110)

$170.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt GW-1224-1

Shim, Rear Bearing Cap, .010" thick
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-1224-2

Shim, same as above, except .030" thick
(Superseded to 736-04307)

$4.49

$

In Stock, only 1 left!

0

5

Troy-Bilt GW-1224-3

Shim, same as above, except .005" thick
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-1224-4

Shim, same as above, except .062" thick
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 13

0

5

$15.99

$

In Stock, only 2 left!

0
