21A-643B066 - Troy-Bilt Bronco CRT Tiller (2007) Drive & Wheels Parts Diagram

Bronco CRT Tiller

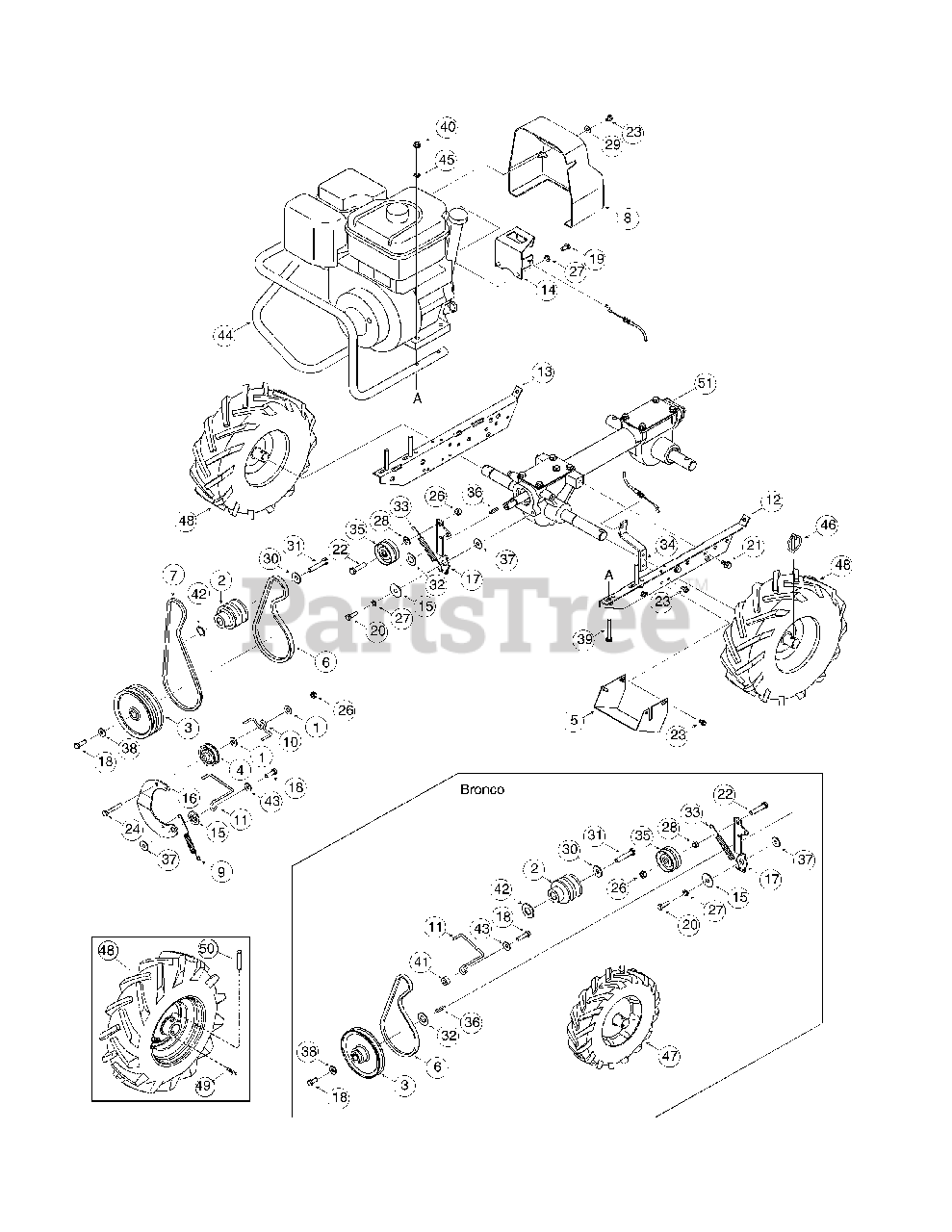

Drive & Wheels Parts Diagram

  • Title

1

Troy-Bilt 736-0159

Flat Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 756-04198

Pulley, Engine Drive
(Superseded to 756-04198A)

$55.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 656-04023

Transmission Pulley
(Superseded to 656-04023A)

Note: Bronco Model

$79.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 656-04005

Transmission Pulley
(Superseded to 656-04005A)

Note: Super Bronco and Pro-Line Models

$

$

Not available

4

Troy-Bilt 756-04169

Pulley, Reverse Idler

Note: Super Bronco and Pro-Line Models

$25.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 786-04095

Guard, Belts/Pulleys
(Superseded to 786-04095-0637)

Variations

Troy-Bilt 786-04095-0637

Trans Pulley Guard - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 754-04090

Forward Drive Belt
(Superseded to 954-04090)

$20.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 754-04091

Reverse Drive Belt
(Superseded to 954-04091)

Note: Super Bronco and Pro-Line Models

$18.99

$

In Stock, Qty 5

0

8

Troy-Bilt 731-05268

Belt Cover

$39.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 732-04289

Reverse Return Spring
(Superseded to 1916724)

Note: Super Bronco and Pro-Line Models

$

$

Not available

10

Troy-Bilt 732-04081

Belt Guide

Note: Super Bronco and Pro-Line Models

$10.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 732-04079

Belt Guide
(Superseded to 1916726)

$

$

Not available

12

MTD 786-04068

Engine Bracket, Left

$

$

Not available

13

Troy-Bilt 786-04069

Engine Bracket, Right

$

$

Not available

14

Troy-Bilt 786-04070

Bracket, Belt Cover
(Superseded to 786-04070-0637)

Variations

Troy-Bilt 786-04070-0637

Belt Cover Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

15

Troy-Bilt 748-04087

Shoulder Washer
(Superseded to 748-04087A)

$6.49

$

In Stock, Qty 9

0

16

Troy-Bilt 786-04276

Reverse Idler Arm

Note: Super Bronco and Pro-Line Models

$16.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 786-04275

Forward Idler Lever
(Superseded to 786-04275-0637)

Variations

Troy-Bilt 786-04275-0637

Idler Arm, Forward - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 710-0672

Hex Hd. Screw, 5/16-24 x 1.25

Note: Bronco Model

$4.49

$

In Stock, Qty 18

0

18

Troy-Bilt 710-0117

Hex Hd. Screw, 5/16-24 x 1
(Superseded to 710-0888)

Note: Super Bronco and Pro-Line Models

$4.49

$

In Stock, Qty 5

0

19

Troy-Bilt 710-0237

Hex Hd. Screw, 5/16-24 x 5/8

$4.49

$

In Stock, only 1 left!

0

20

Troy-Bilt 710-0376

Hex Hd. Screw, 5/16-18 x 1

$3.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 710-04049

Hex Hd. Screw, 5/16-18 x 5/8

$4.99

$

In Stock, Qty 11

0

22

Troy-Bilt 710-0347

Hex Hd. Screw, 3/8-16 x 1-3/4

Note: Bronco Model

$5.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-0520

Hex Hd. Screw, 3/8-16 x 1.50

Note: Super Bronco and Pro-Line Models

$4.49

$

In Stock, Qty 6

0

23

Troy-Bilt 710-0599

Screw, Self-Tapping, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-3103

Hex Hd. Screw, 5/16-18 x 2

Note: Super Bronco and Pro-Line Models

$4.49

$

In Stock, only 4 left!

0

25

Troy-Bilt 712-3000

Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

26

Troy-Bilt 712-3009

Lock Nut, 5/16-18

Note: Super Bronco and Pro-Line Models

$6.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

Note: Bronco Model

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 750-0535

Spacer, .380 ID x .625 OD x .21
(Superseded to 950-0535)

Note: Bronco Model

$4.49

$

In Stock, only 4 left!

0

28

Troy-Bilt 736-3050

Flat Washer .406 x .812 x .051

Note: Super Bronco and Pro-Line Models

$4.49

$

In Stock, Qty 16

0

29

Troy-Bilt 736-3090

Flat Washer

$6.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 736-0452

Bell Washer

$4.99

$

In Stock, Qty 7

0

31

Troy-Bilt 710-0459A

Hex Hd. Screw, 3/8-24 x 1.50, GR5

$6.99

$

In Stock, Qty 8

0

32

Troy-Bilt 736-04181

Support Washer
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 7

0

33

Troy-Bilt 732-04085

Forward Return Spring

$14.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 786-04107

Bracket, Cable Mounting

Variations

Troy-Bilt 786-04107-0637

BRACKET:CABLE MT - POWDER BLACK (0637)

$

$

Not available

$

$

35

Troy-Bilt 756-04170

Forward Idler Pulley

$35.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 714-0105

Key, 3/16" x 1"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 736-3078

Flat Washer

$4.49

$

In Stock, only 4 left!

0

38

Troy-Bilt 736-04193

Belleville Washer

$6.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 710-0805

Hex Screw, 5/16-18 x 1.50 Gr5
(Superseded to 710-0805A)

Note: Super Bronco and Pro-Line Models

$4.49

$

In Stock, only 3 left!

0

39

Troy-Bilt 710-0395

Hex Screw, 5/16-18 x 2-1/4, Gr5

Note: Pro-Line Model

$4.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 712-04063

Nut, Hex Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 750-0258

Spacer, Shoulder

Note: Bronco Model

$11.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 736-0315

Washer, Flat, .75 x 1.5 x .125

Note: Bronco Model

$6.99

$

In Stock, Qty 6

0

42

Troy-Bilt 736-04192

Flat Washer .786 x 1.000 x .031

Note: Super Bronco and Pro-Line Models

$6.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 749-04193

Bumper
(Superseded to 749-04193-0637)

Note: Pro-Line Model

Variations

Troy-Bilt 749-04193-0637

Bumper, Tiller Black - POWDER BLACK (0637)

$54.99

$

In Stock, Qty 6

0

$54.99

$

In Stock, Qty 6

0

45

Troy-Bilt 726-0201

Nut, Speed, 5/16-18

Note: Pro-Line Model

$6.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 714-0143

Klik Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

47

Troy-Bilt 734-04188

Complete Wheel Assembly 10 x 2.75

Note: Bronco Model

$

$

Not available

48

Troy-Bilt 634-04232

Complete Wheel Assembly 13x 5 x 6
(Superseded to 934-04232)

Note: Super Bronco and Pro-Line Models

$172.99

$

In Stock, only 3 left!

0

Troy-Bilt 634-04218

Rim Assembly

Note: Super Bronco and Pro-Line Models

$

$

Currently unavailable

Troy-Bilt 734-04163

Tire
(Superseded to 734-04163A)

Note: Super Bronco and Pro-Line Models

Variations

Troy-Bilt 734-04163-0901

Tiller Ag Tire - Carlisle (0901)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 714-04048

Cotter Pin

$8.49

$

In Stock, only 2 left!

0

50

Troy-Bilt 711-04126

Clevis Pin

$4.49

$

In Stock, Qty 5

0

51

Troy-Bilt 618-04360

Transmission Assembly
(Superseded to 753-05894B)

Note: Bronco Model

$885.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 618-04362

Transmission Assembly
(Superseded to 918-04362)

Note: Super Bronco and Pro-Line Models

$885.99

$

Usually ships in 3-6 days

0
