21A-634K766 - Troy-Bilt FRT Rear-Tine Tiller (2005) Handle Parts Diagram

FRT Rear-Tine Tiller

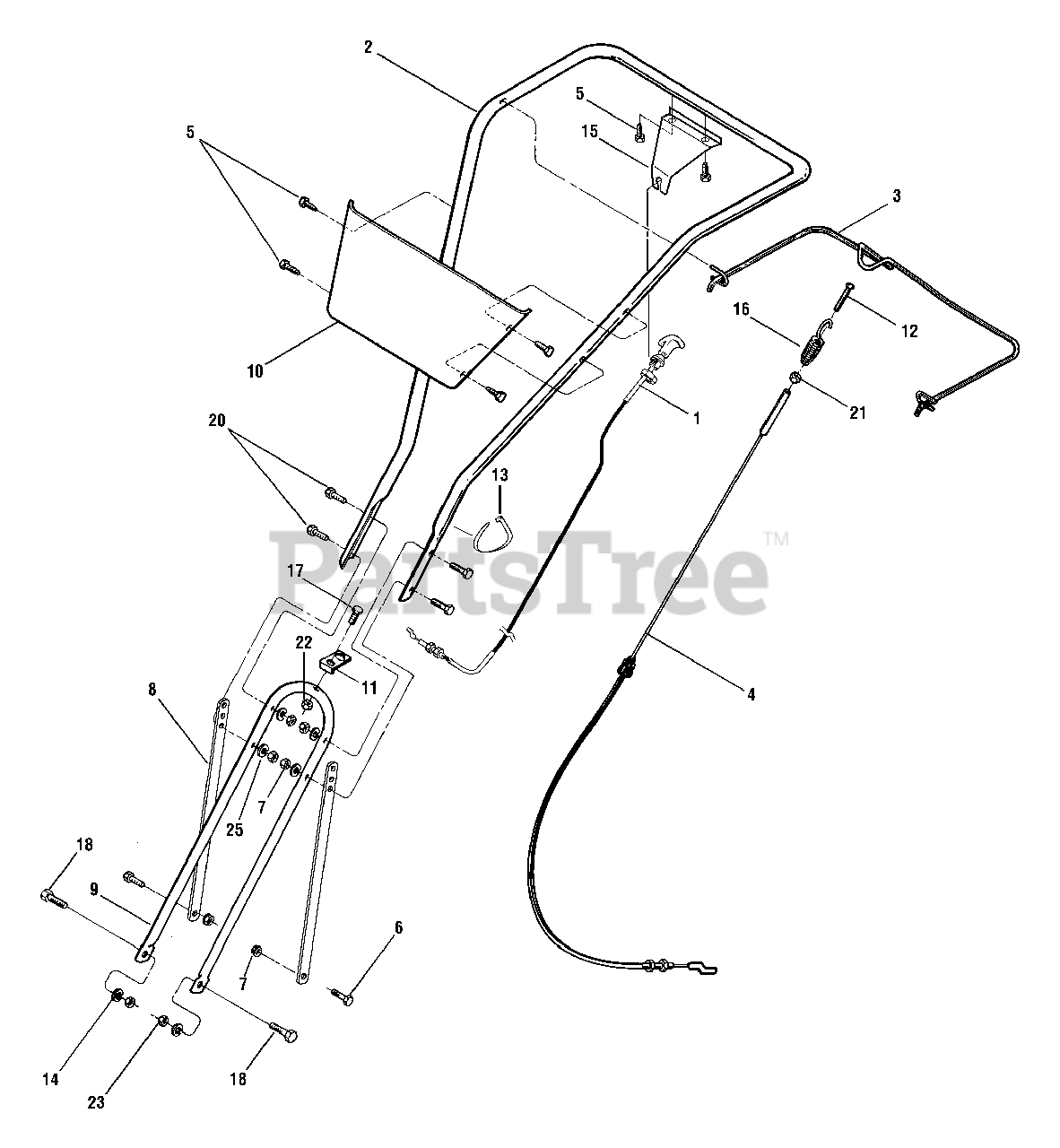

Handle Parts Diagram

  • Title
1

Troy-Bilt 1916719

Cable Assembly, Reverse Clutch
(Superseded to 946-04058)

Note: For Model 634A and 634K

$60.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 1916755

Upper Handlebar
(Superseded to 749-04084-0638)

$

$

Not available

3

Troy-Bilt 747-04210

Bail, Forward Clutch
(Superseded to 1916106001)

$51.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 1918745

Cable Assembly, Forward Clutch
(Superseded to 946-04208)

$38.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0599

Screw, Self-Tapping,1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3008

Screw, Hex, 5/16-18 x 3/4

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-3009

Hex Lock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 786-04188

Handlebar Support
(Superseded to 786-04188-0638)

Variations

Troy-Bilt 786-04188-0638

Handle Support Bracket - MTD/TROY-BILT RED (0638)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt GW-55043

Lower Handlebar
(Superseded to 753-06459A)

$89.99

$

In Stock, Qty 9

0

10

Variations

Troy-Bilt 786-04200-0638

Panel Handle, Red - MTD/TROY-BILT RED (0638)

$28.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt GW-55044

Tab, Conduit Mount

$19.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt GW-9855

Screw, #10-24 x 2
(Superseded to 710-04163)

$

$

Not available

13

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-3050

Flat Washer, 3/8

$4.49

$

In Stock, Qty 16

0

15

Troy-Bilt 786-04040

Bracket, Reverse Clutch Cable

Note: For Model 634A and 634K

Variations

Troy-Bilt 786-04040-0637

Reverse Cable Bracket - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 786-04040-0638

BRACKET-REV CABLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

16

Troy-Bilt 732-04185

Spring, Forward Clutch

$7.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 710-0106

Hex Hd. Screw, 1/4-20 x 1-1/4

$3.99

$

In Stock, Qty 12

0

18

Troy-Bilt 710-0216

Screw, Hex, 3/8-16 x 3/4

$4.49

$

In Stock, Qty 15

0

20

Troy-Bilt 710-0805

Screw, Hex, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-0121

Hex Nut, #10-24

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-0291

Hex Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 8

0

23

Troy-Bilt 712-3000

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

25

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
