21A-634K766 - Troy-Bilt FRT Rear-Tine Tiller (2005) Drive Shaft Parts Diagram

FRT Rear-Tine Tiller

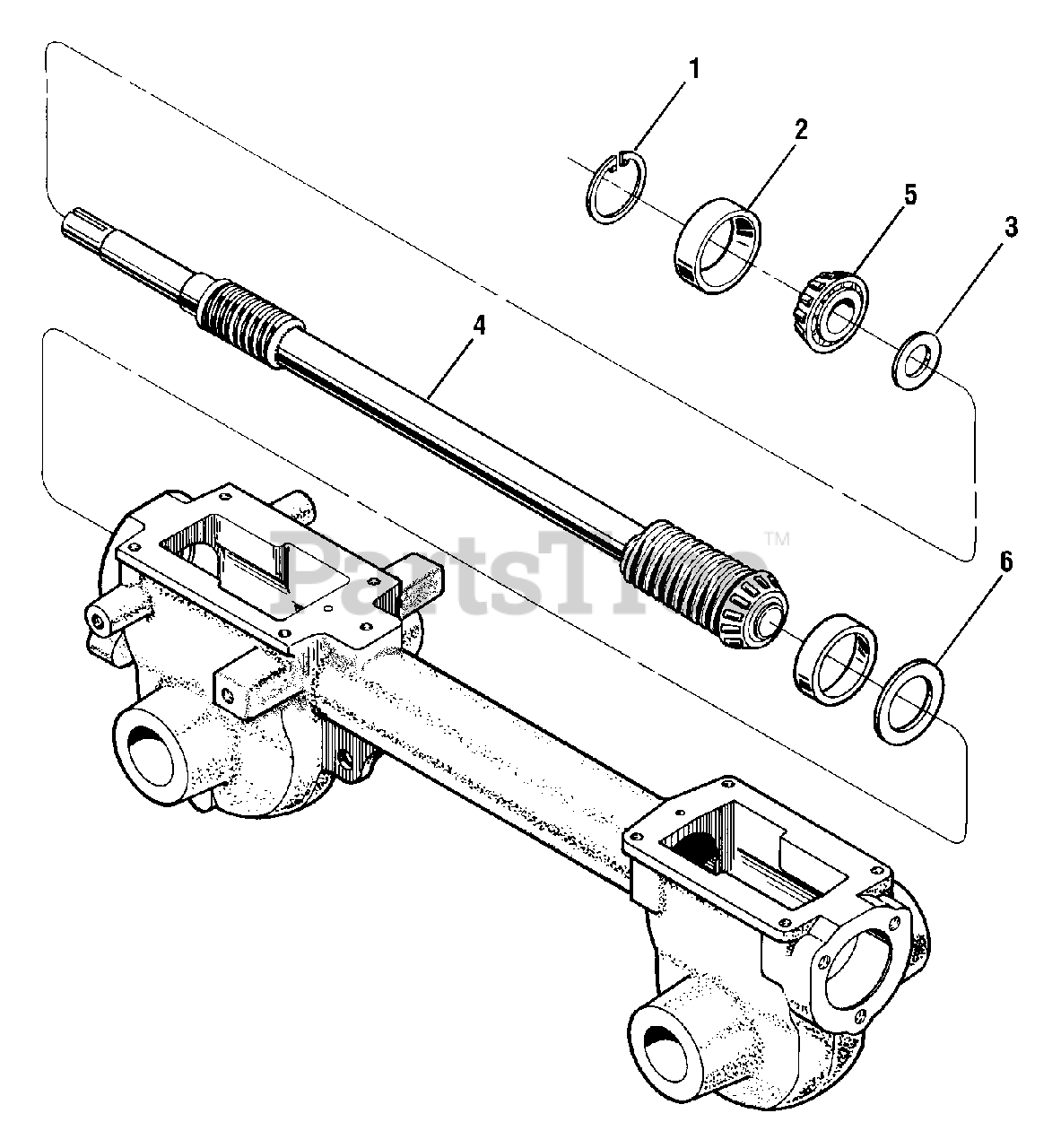

Drive Shaft Parts Diagram

  • Title

1

Troy-Bilt GW-9517

Snap Ring
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt GW-9400

Drive Shaft Bearing Cup
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-50043

Support Washer, Rear
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 12

0

4

Troy-Bilt 711-04109

Drive Shaft
(Superseded to 1904281)

Note: For Model 634A and 634K

$

$

Not available

Troy-Bilt 711-04110

Drive Shaft
(Superseded to 911-04110)

Note: For Model 630C

$170.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt GW-9401

Drive Shaft Bearing Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

6

Troy-Bilt GW-1224-1

Shim, Rear Bearing Cap,.010" thick
(Superseded to 736-04308)

Note: Use as required to obtain between.005" and.015" allowable end-play.

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt GW-1224-2

Shim, same as above, except.030" thick
(Superseded to 736-04307)

Note: Use as required to obtain between.005" and.015" allowable end-play.

$4.49

$

In Stock, only 3 left!

0

Troy-Bilt GW-1224-3

Shim, same as above, except.005" thick
(Superseded to 736-04306)

Note: Use as required to obtain between.005" and.015" allowable end-play.

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt GW-1224-4

Shim, same as above, except.062" thick
(Superseded to 736-04305)

Note: Use as required to obtain between.005" and.015" allowable end-play.

$3.99

$

In Stock, Qty 13

0

Troy-Bilt GW-1325C

Shim Set

Note: (Incl. the following shims: two #1224-1, two 1224-2 & one #1224-4)

$15.99

$

In Stock, only 2 left!

0
