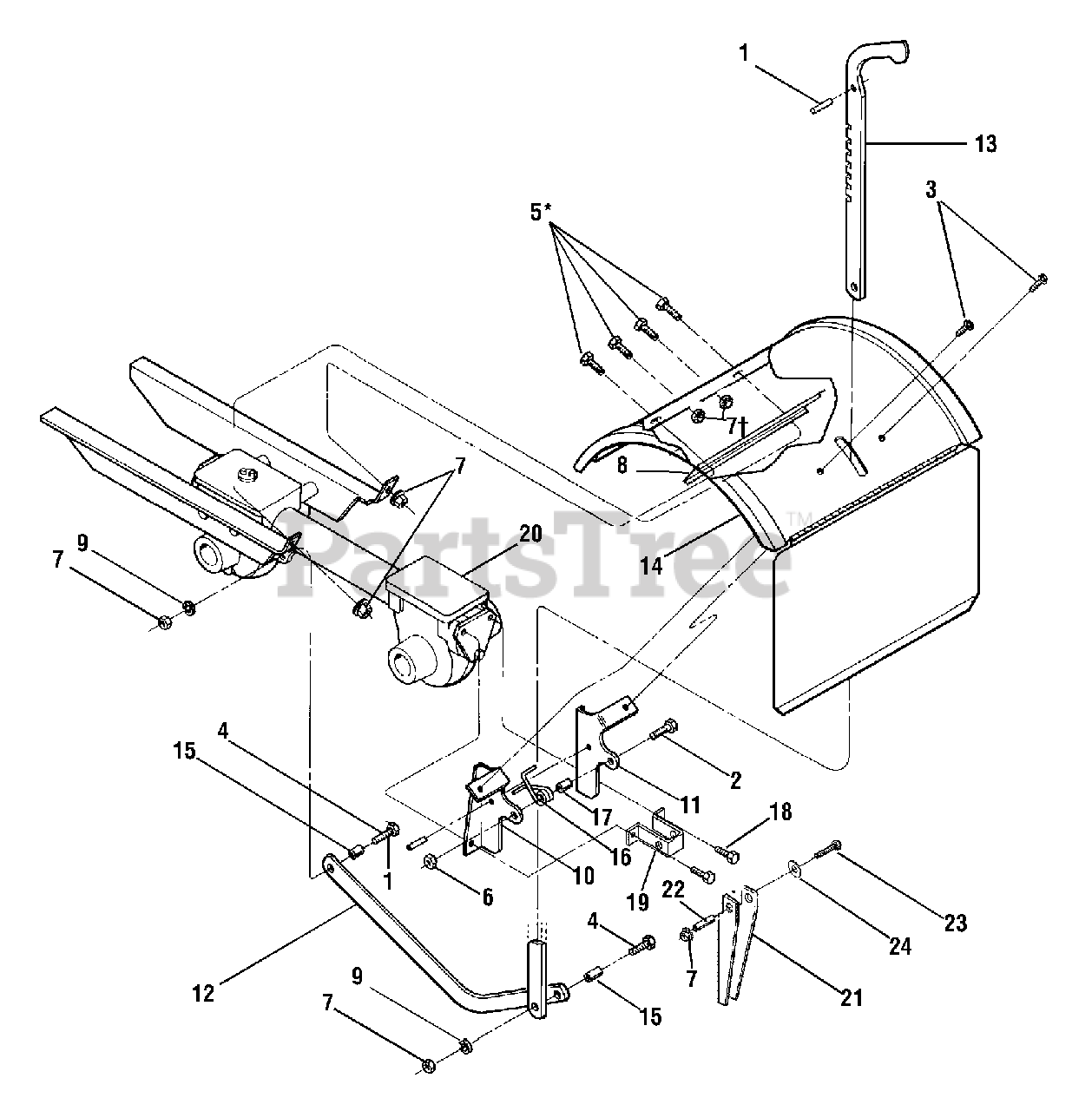

21A-634K711 - Troy-Bilt FRT Rear-Tine Tiller (2005) Hood Assembly Parts Diagram

FRT Rear-Tine Tiller

Hood Assembly Parts Diagram

  • Title

1

Troy-Bilt 1185469

Spirol Pin
(Superseded to 715-04034)

Note: For Model 634A and 634K

$6.99

$

In Stock, Qty 20+

0

Troy-Bilt 715-0108

Spirol Pin

Note: For Model 630C

$4.99

$

In Stock, Qty 15

0

2

Troy-Bilt 710-0597

Hex Hd. Screw, 1/4-20 x 1

$3.99

$

In Stock, Qty 14

0

3

Troy-Bilt 710-0599

Screw, Self-Tapping,1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0874

Hex Hd. Screw, 5/16-18 x 1-1/4

$6.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-3008

Hex Hd. Screw, 5/16-18 x 3/4

Note: 4 on Model 634A

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-0324

Lock Nut, 1/4-20

Note: For Model 634A and 634K

$3.99

$

In Stock, Qty 16

0

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

Note: For Model 630C

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-0429

Lock Nut, 5/16-18

Note: For Model 634A and 634K; 6 on Model 634A and 634K

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

Note: For Model 630C

$3.99

$

In Stock, Qty 20+

0

8

MTD 1916707

Support Bracket
(Superseded to 1916707001)

$

$

Not available

9

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

Note: For Model 634A and 634K

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt GW-55013-1

Hood Bracket, Left Hand
(Superseded to 786-04290-0638)

$31.99

$

In Stock, only 1 left!

0

11

Troy-Bilt GW-55013-2

Hood Bracket, Right Hand
(Superseded to 786-04291-0638)

$

$

Not available

12

Troy-Bilt GW-55015

Drag Bar
(Superseded to 786-04104)

$33.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt GW-55018

Depth Regulator Lever
(Superseded to 786-04292A-0638)

$66.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 686-04041

Tine Hood Assembly
(Superseded to 686-04077B-0638)

Note: For Model 634A and 634K

$195.99

$

In Stock, only 1 left!

0

Troy-Bilt 686-04043

Tine Hood Assembly
(Superseded to 686-04076A-0638)

Note: For Model 630C

$89.99

$

In Stock, only 3 left!

0

15

Troy-Bilt GW-55088

Bushing

$

$

Not available

16

Troy-Bilt GW-9384

Spring, Depth Regulator
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 11

0

17

Troy-Bilt GW-9534

Spacer

$4.49

$

In Stock, Qty 9

0

18

Troy-Bilt 710-04048

Hex Hd. Flange Screw, 5/16-18 x 1

$4.99

$

In Stock, Qty 7

0

19

Troy-Bilt 786-04191

Trail Shield Stop Bracket
(Superseded to 786-04191-0637)

Variations

Troy-Bilt 786-04191-0637

BRACKET-HOOD STOP - POWDER BLACK (0637)

$

$

Not available

$

$

20

Troy-Bilt 618-04000

Transmission Assembly
(Superseded to 753-05332)

Note: For Model 634A and 634K

$1151.99

$

Usually ships in 3-6 days

0

Troy-Bilt 618-04254

Transmission Assembly
(Superseded to 918-04254)

Note: For Model 630C

$

$

Not available

21

Troy-Bilt 1916570

Reverse Stop Arm
(Superseded to 786-04092)

Note: For Model 630C

$25.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 1916771

Split Spacer,.462 x.328 x 1.63

Note: For Model 630C

$

$

Not available

23

Troy-Bilt 710-0395

Screw, 5/16-18 x 2.25

Note: For Model 630C

$4.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 736-0275

Flat Washer,.344 x.688 x.065

Note: For Model 630C

$6.99

$

Usually ships in 3-6 days

0
