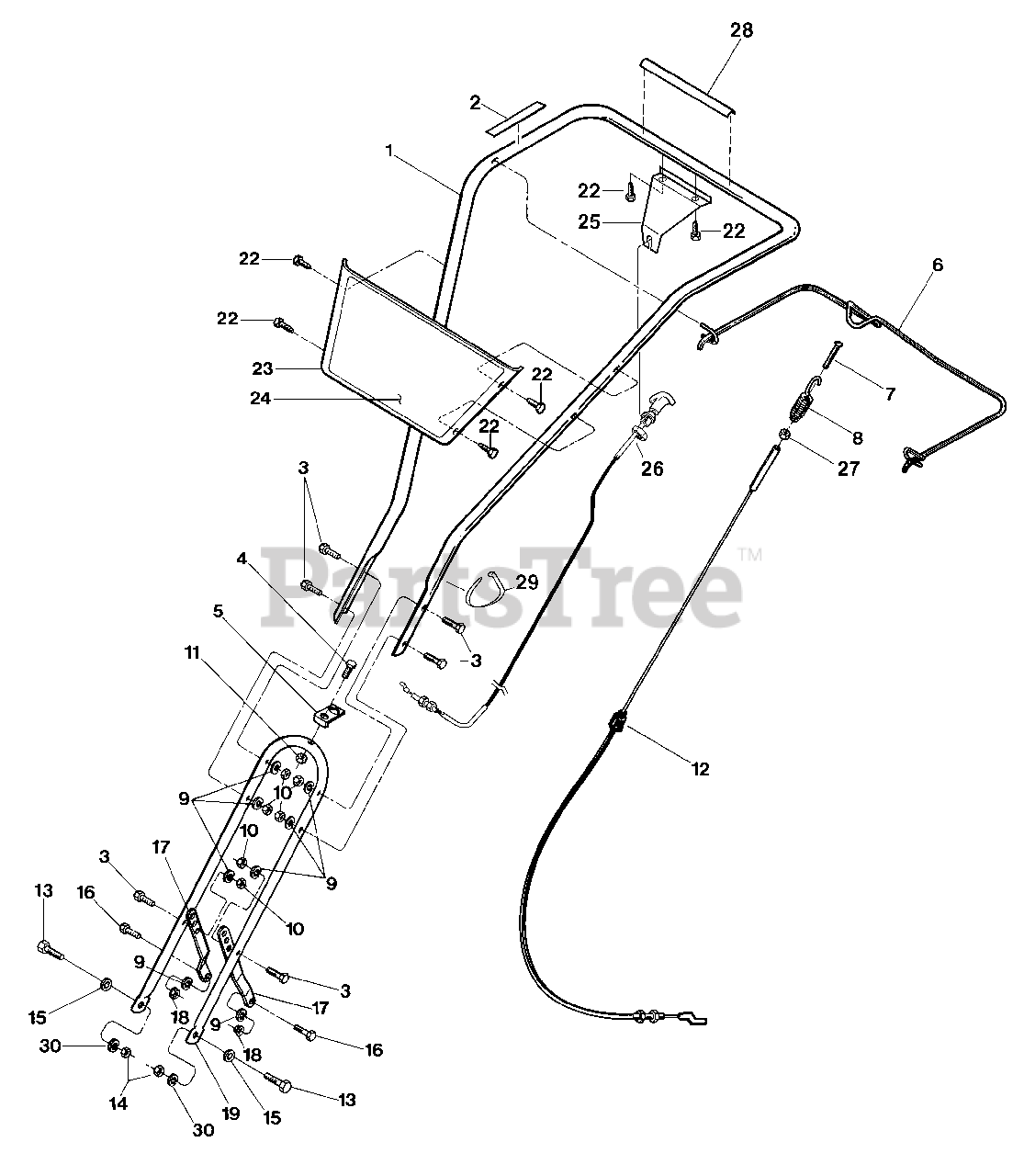

21A-634F063 - Troy-Bilt Rear-Tine Tiller (2002) Handle Parts Diagram

Rear-Tine Tiller

Handle Parts Diagram

  • Title

1

Troy-Bilt GW-55104

Upper Handlebar
(Superseded to 749-04084-0638)

Note: (Incl. Ref. 2); (For Model 630B)

$110.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1916996

Upper Handlebar
(Superseded to 749-04084-0638)

Note: (Incl. Refs. 2 & 28); (For Model 634B and 634F)

$110.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 777I20937

Decal, Forward Clutch Bail
(Superseded to 777I23495)

$4.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0805

Hex Hd. Screw, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 710-0106

Hex Hd. Screw, 1/4-20 x 1-1/4

$3.99

$

In Stock, only 2 left!

0

5

Troy-Bilt GW-55044

Bracket, Forward Clutch Cable

$19.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1916106001

Bail, Forward Clutch

$51.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt GW-9855

Screw, #10-24 x 2
(Superseded to 710-04163)

$

$

Not available

8

Troy-Bilt 1916712

Spring, Forward Clutch
(Superseded to 732-04185)

$7.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-0291

Hex Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 8

0

12

Troy-Bilt 1918745

Cable Assembly, Forward Clutch
(Superseded to 946-04208)

$38.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 710-0514

Hex Hd. Screw, 3/8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-3017

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-3050

Flat Washer, 3/8

$4.49

$

In Stock, Qty 16

0

16

Troy-Bilt 710-0376

Hex Hd. Screw, 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

17

Troy-Bilt GW-55042

Handlebar Support
(Superseded to 1916107001)

$

$

Not available

18

Troy-Bilt 712-3010

Hex Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt GW-55043

Lower Handlebar
(Superseded to 753-06459A)

$89.99

$

In Stock, Qty 10

0

22

Troy-Bilt 710-0599

Hex Screw, 1/4-20 x 1/2, Self-Tap

Note: (For Model 630B)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 710-0599

Hex Screw, 1/4-20 x 1/2, Self-Tap

Note: (For Model 634B and 634F)

$4.49

$

In Stock, Qty 20+

0

23

MTD 1901273010

Panel

$

$

Not available

24

Troy-Bilt 777D05556

Decal, Model Name/Logo

Note: (For Model 630B)

$

$

Currently unavailable

Troy-Bilt 777D05551

Decal, Model Name/Logo

Note: (For Model 634B)

$

$

Not available

Troy-Bilt 777D05555

Decal, Model Name/Logo

Note: (For Model 634F)

$

$

Not available

25

Troy-Bilt 1916674001

Bracket, Reverse Clutch Cable
(Superseded to 786-04040-0637)

Note: (For Model 634B and 634F)

$

$

Not available

26

Troy-Bilt 1916719

Cable Ass'y, Reverse Clutch
(Superseded to 946-04058)

Note: (For Model 634B and 634F)

$60.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 712-0121

Hex Nut, #10-24

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 777I20941

Decal, Reverse Drive Control

Note: (For Model 634B and 634F)

$2.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 725-0157

Cable Tie

Note: (For Model 634B and 634F)

$3.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0
