21A-634B063 - Troy-Bilt Rear-Tine Tiller (2003) Drive Parts Diagram

Rear-Tine Tiller

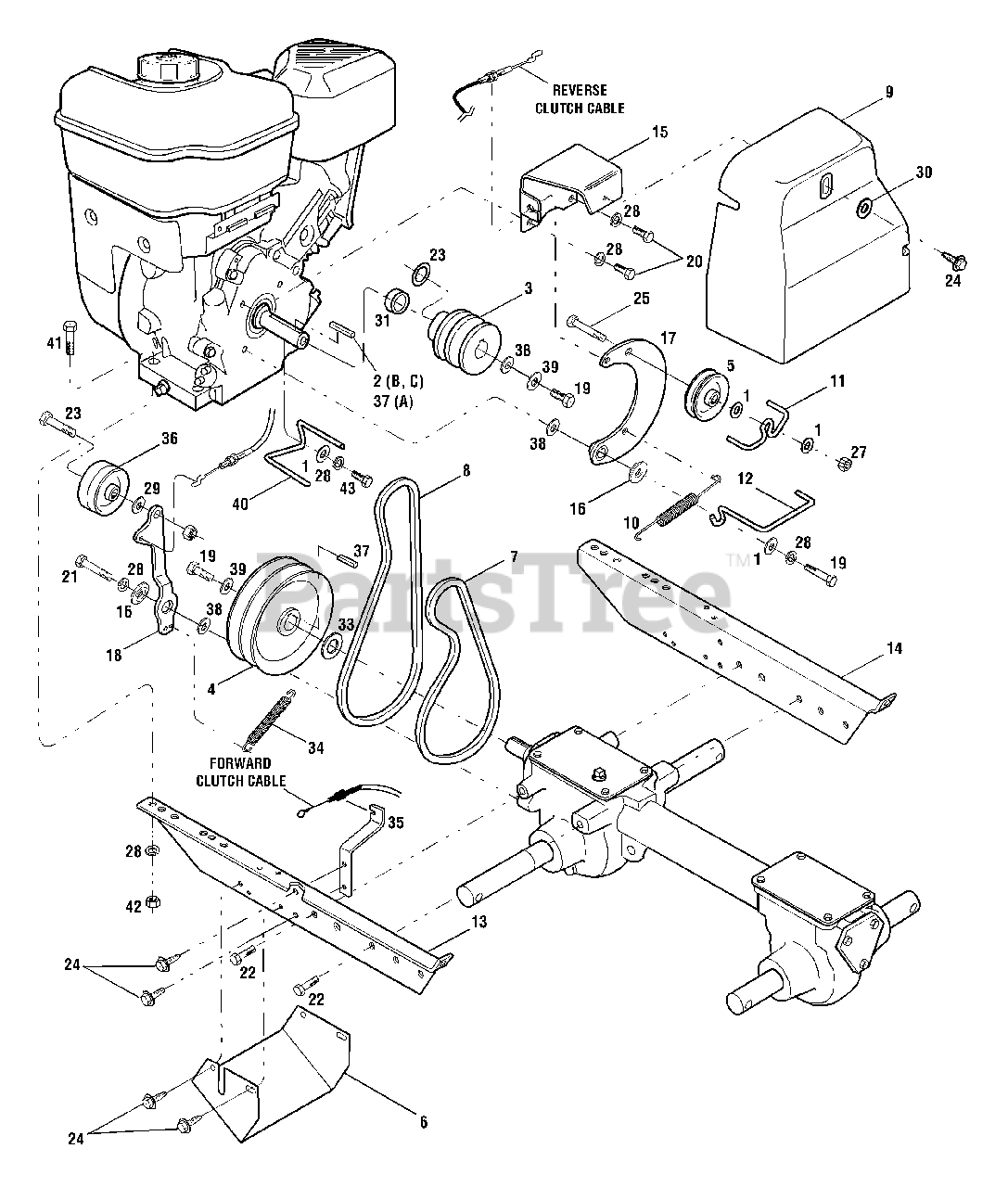

Drive Parts Diagram

  • Title
1

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

2

Troy-Bilt 1108841

Key, 3/16" x 1-1/2"
(Superseded to 914-0133)

Note: For Model 634F/634B

$

$

Not available

3

Troy-Bilt 1916531

Pulley, Engine Drive
(Superseded to 956-04183)

Note: For Model 634F/634B

$87.99

$

Usually ships in 3-6 days

0

Troy-Bilt GW-55035

Pulley, Engine Drive

Note: For Model 630C

$

$

Not available

4

Troy-Bilt 1916532

Transmission Pulley
(Superseded to 656-04005A)

Note: For Model 634F/634B

$

$

Not available

MTD GW-55031

Transmission Pulley
(Superseded to 656-04017)

$

$

Not available

5

Troy-Bilt 1916535

Pulley, Reverse Idler
(Superseded to 756-04169)

Note: For Model 634F/634B

$25.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 1916652

Guard, Belts/Pulleys
(Superseded to 786-04095-0637)

$31.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1916657

Forward Drive Belt
(Superseded to 954-04090)

Note: For Model 634F/634B

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt GW-55037

Forward Drive Belt
(Superseded to 954-04089)

Note: For Model 630C

$25.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1916658

Reverse Drive Belt
(Superseded to 954-04091)

Note: For Model 634F/634B

$18.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 1916660

Belt Cover
(Superseded to 731-05268)

$39.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 1916724

Reverse Return Spring

Note: For Model 634F/634B

$

$

Not available

11

Troy-Bilt 1916725

Belt Guide
(Superseded to 732-04081)

Note: For Model 634F/634B

$10.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 1916726

Forward Belt Guide

Note: For Model 634F/634B

$

$

Not available

13

MTD 1916794

Engine Bracket, Left

$

$

Not available

14

Troy-Bilt 1916795

Engine Bracket, Right
(Superseded to 786-04069)

$

$

Not available

15

Troy-Bilt 1917326

Bracket, Belt Cover
(Superseded to 786-04070-0637)

$

$

Not available

16

Troy-Bilt 1917746

Shoulder Washer
(Superseded to 748-04087A)

$6.49

$

In Stock, Qty 9

0

17

Troy-Bilt 1918731

Reverse Idler Arm
(Superseded to 786-04276)

Note: For Model 634F/634B

$16.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 1918744

Forward Idler Lever
(Superseded to 786-04275-0637)

$35.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 710-0117

Hex Hd. Screw, 5/16-24 x 1
(Superseded to 710-0888)

Note: For Model 634F/634B

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0237

Hex Hd. Screw, 5/16-24 x 5/8

$4.49

$

In Stock, only 1 left!

0

21

Troy-Bilt 710-0376

Hex Hd. Screw, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-04049

Hex Hd. Screw, 5/16-18 x 5/8

$4.99

$

In Stock, Qty 11

0

23

Troy-Bilt 710-0520

Hex Hd. Screw, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 6

0

24

Troy-Bilt 710-0599

Screw, Self-Tapping, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 710-3103

Hex Hd. Screw, 5/16-18 x 2

Note: For Model 634F/634B

$4.49

$

In Stock, Qty 20+

0

?26

Troy-Bilt 712-3000

Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

27

Troy-Bilt 712-3009

Lock Nut, 5/16-18

Note: For Model 634F/634B

$6.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 736-3050

Flat Washer, 3/8

$4.49

$

In Stock, Qty 16

0

30

Troy-Bilt 736-3090

Flat Washer

$6.99

$

In Stock, Qty 11

0

31

MTD 748-04026

Spacer

Note: For Model 630C

$

$

Not available

?32

Troy-Bilt GW-1138-2

Shim
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

33

Troy-Bilt GW-50027

Support Washer

$6.99

$

In Stock, Qty 7

0

34

Troy-Bilt GW-55034

Forward Return Spring
(Superseded to 732-04085)

$14.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt GW-55049

Bracket, Cable Mounting

$

$

Currently unavailable

36

Troy-Bilt GW-9090

Forward Idler Pulley
(Superseded to 756-04170)

$35.99

$

In Stock, only 2 left!

0

37

Troy-Bilt GW-9301

Key, 3/16" x 1"

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt GW-9929

Flat Washer

$3.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt GW-9944

Belleville Washer
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

40

Troy-Bilt GW-55039

Forward Belt Guide

Note: For Model 630C

$

$

Not available

41

Troy-Bilt 710-0805

Hex Hd. Screw, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

Note: For Model 630C

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 712-3010

Hex Nut, 5/16-18

Note: For Model 630C

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 710-0157

Hex Hd. Screw, 5/16-24 x 3/4

Note: For Model 630C

$4.49

$

In Stock, Qty 18

0
