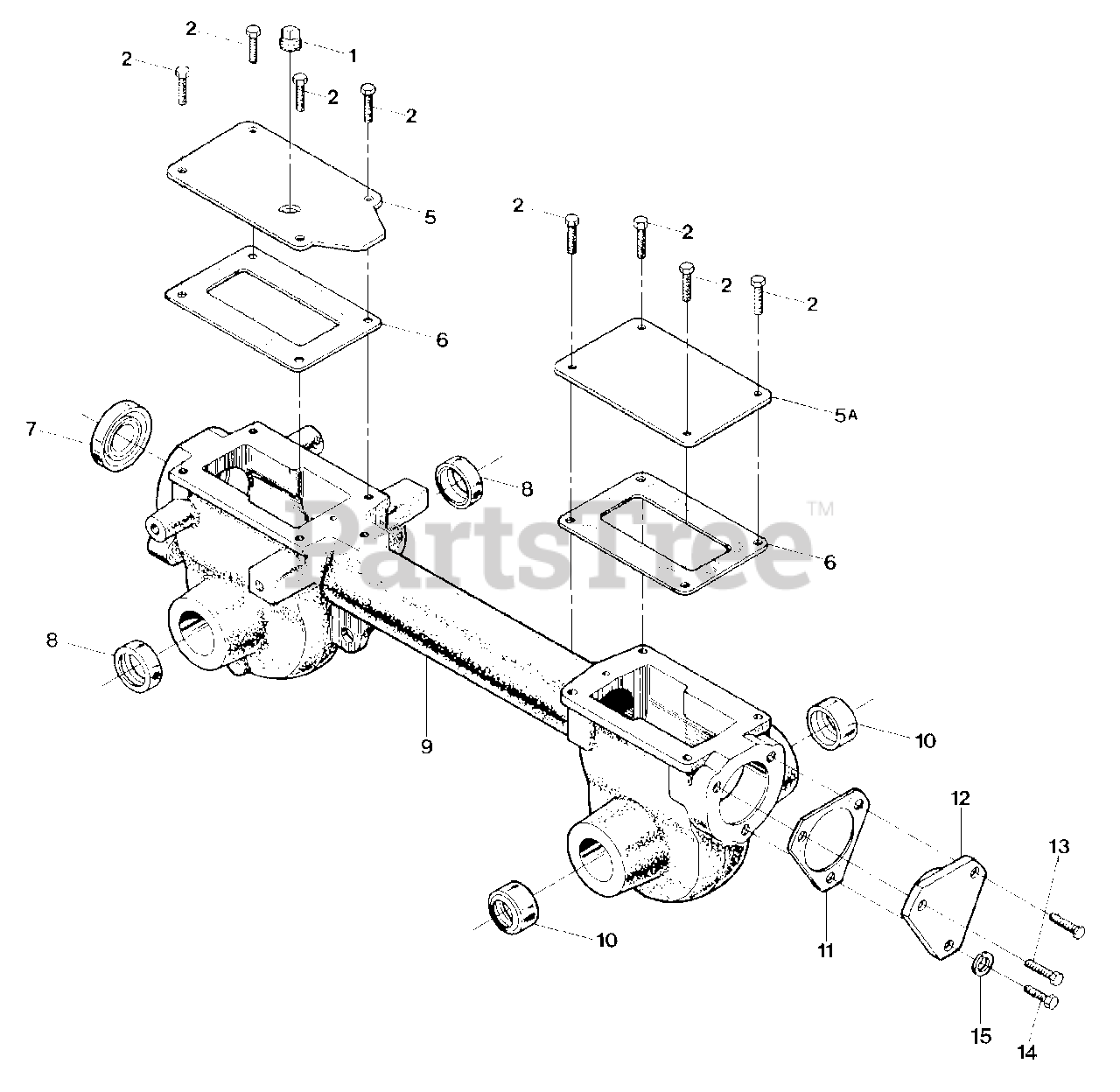

21A-634B063 - Troy-Bilt Rear-Tine Tiller (2002) Transmission Housing Parts Diagram

Rear-Tine Tiller

Transmission Housing Parts Diagram

  • Title

1

Troy-Bilt GW-9727

Plug, Transmission Oil Fill
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1186328

Hex Hd. Flange Screw, 5/16-18 x 5/8, Grade 5
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0

5

Troy-Bilt 1916641001

Front Cover, Transmission
(Superseded to 786-04359)

$24.99

$

Usually ships in 3-6 days

0

5A

Troy-Bilt 1916109001

Rear Cover, Transmission

$

$

Not available

6

Troy-Bilt GW-50032

Gasket, Housing Cover
(Superseded to 921-04229)

$6.99

$

In Stock, Qty 20+

0

7

Troy-Bilt GW-9617

Oil Seal, Drive Shaft
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

8

Troy-Bilt GW-9621

Oil Seal, Wheel Shaft
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1916975001

Transmission Housing Ass'y
(Superseded to 919-04013)

$211.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 1909374

Oil Seal, Tine Shaft
(Superseded to 921-04036)

$18.99

$

In Stock, Qty 20+

0

11

MTD GW-55011-1

Bearing Cap Gasket, .010" thick

$

$

Not available

MTD GW-55011-2

Bearing Cap Gasket, .030" thick

$

$

Not available

12

Troy-Bilt GW-55010

Rear Bearing Cap
(Superseded to 918-04435)

$22.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1186331

Hex Hd. Flange Screw, 5/16-18 x 1
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

14

Troy-Bilt 710-3008

Hex Hd. Flange Screw, 5/16-18 x 3/4

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
