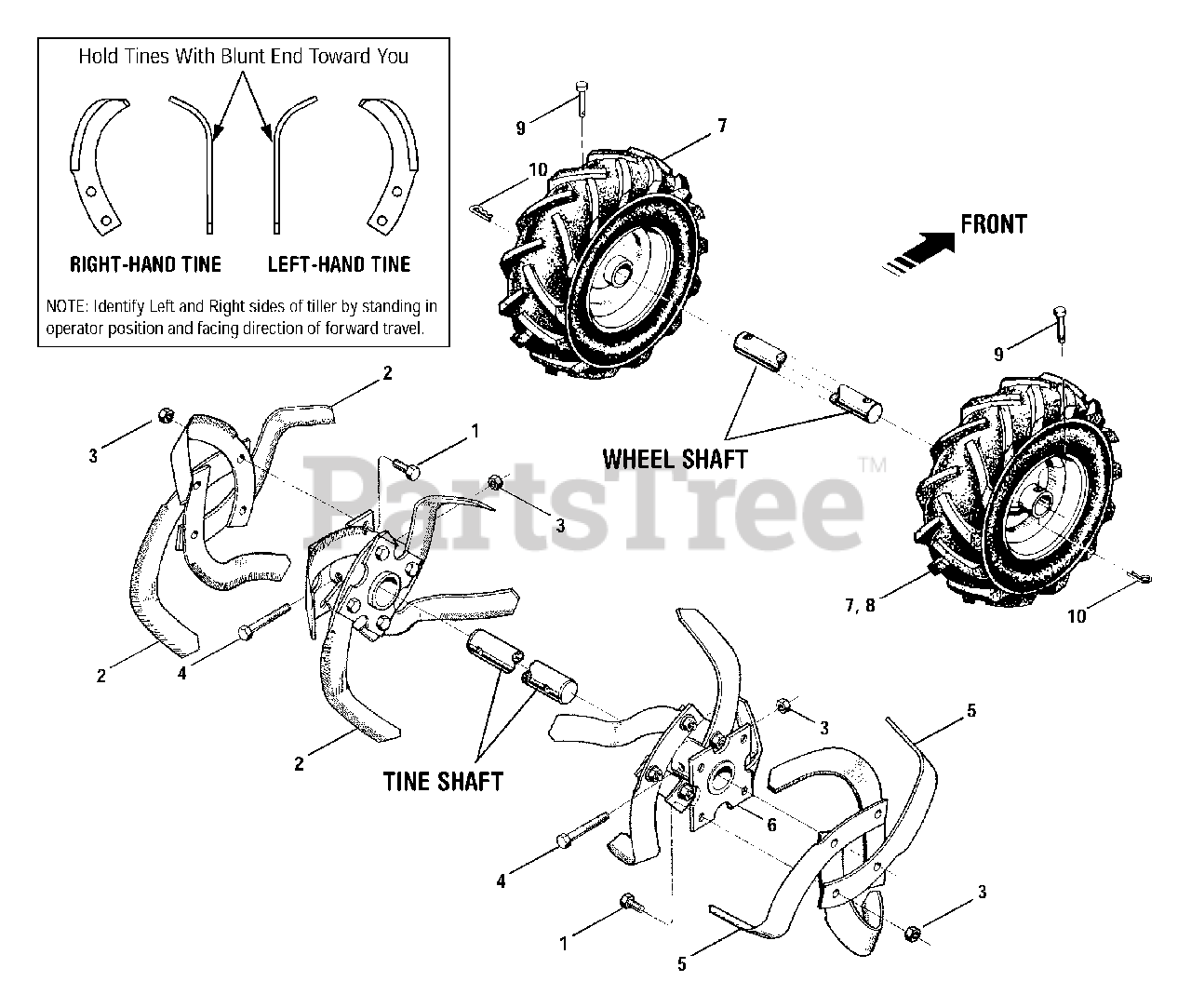

21A-630C766 - Troy-Bilt Rear-Tine Tiller (2004) Tines & Wheels Parts Diagram

Rear-Tine Tiller

Tines & Wheels Parts Diagram

  • Title

1

Troy-Bilt 710-0514

Hex Hd. Screw, 3/8-16 x 1, Grade 5

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt GW-50049-02

Single Bolo Tine - Left Hand
(Superseded to 742-04227-0637)

Note: For Models 630C, 634F & 634A

$16.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 712-3000

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

4

Troy-Bilt 710-0347

Hex Hd. Screw, 3/8-16 x 1-3/4

$5.49

$

In Stock, Qty 20+

0

5

Troy-Bilt GW-50049-01

Single Bolo Tine - Right Hand
(Superseded to 742-04226-0637)

Note: For Models 630C, 634F & 634A

$16.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1916747

Tine Holder
(Superseded to 686-05008-0637)

Note: For Models 634F & 634A

$41.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1915075

Tine Holder
(Superseded to 686-04066-0638)

Note: For Model 630C

$58.99

$

Usually ships in 3-6 days

0

7

MTD 1917486

Wheel & Tire Ass'y - Left/Right Side
(Superseded to 634-04202-0911)

Note: For Model 634F

$

$

Not available

MTD 1917487

Wheel & Tire Ass'y - Left/Right Side
(Superseded to 634-04202-0911)

Note: For Model 634A

$

$

Not available

Troy-Bilt GW-55095-01

Wheel & Tire Ass'y - Left Side Only
(Superseded to 734-04162)

Note: For Model 630C

$

$

Not available

8

Troy-Bilt GW-55095-02

Wheel & Tire Ass'y - Right Side Only
(Superseded to 734-04161)

Note: For Model 630C

$

$

Not available

9

Troy-Bilt GW-9380

Clevis Pin,.312" x 1-3/4"
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

10

Troy-Bilt GW-9338

Hair Pin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

Troy-Bilt GW-1901

Bolo Tine Replacement Set

Note: (Incl. eight right-hand tines, eight left-hand tines and required hardware.

$

$

Not available
