21A-630C766 - Troy-Bilt Rear-Tine Tiller (2004) Drag Bar Parts Diagram

Rear-Tine Tiller

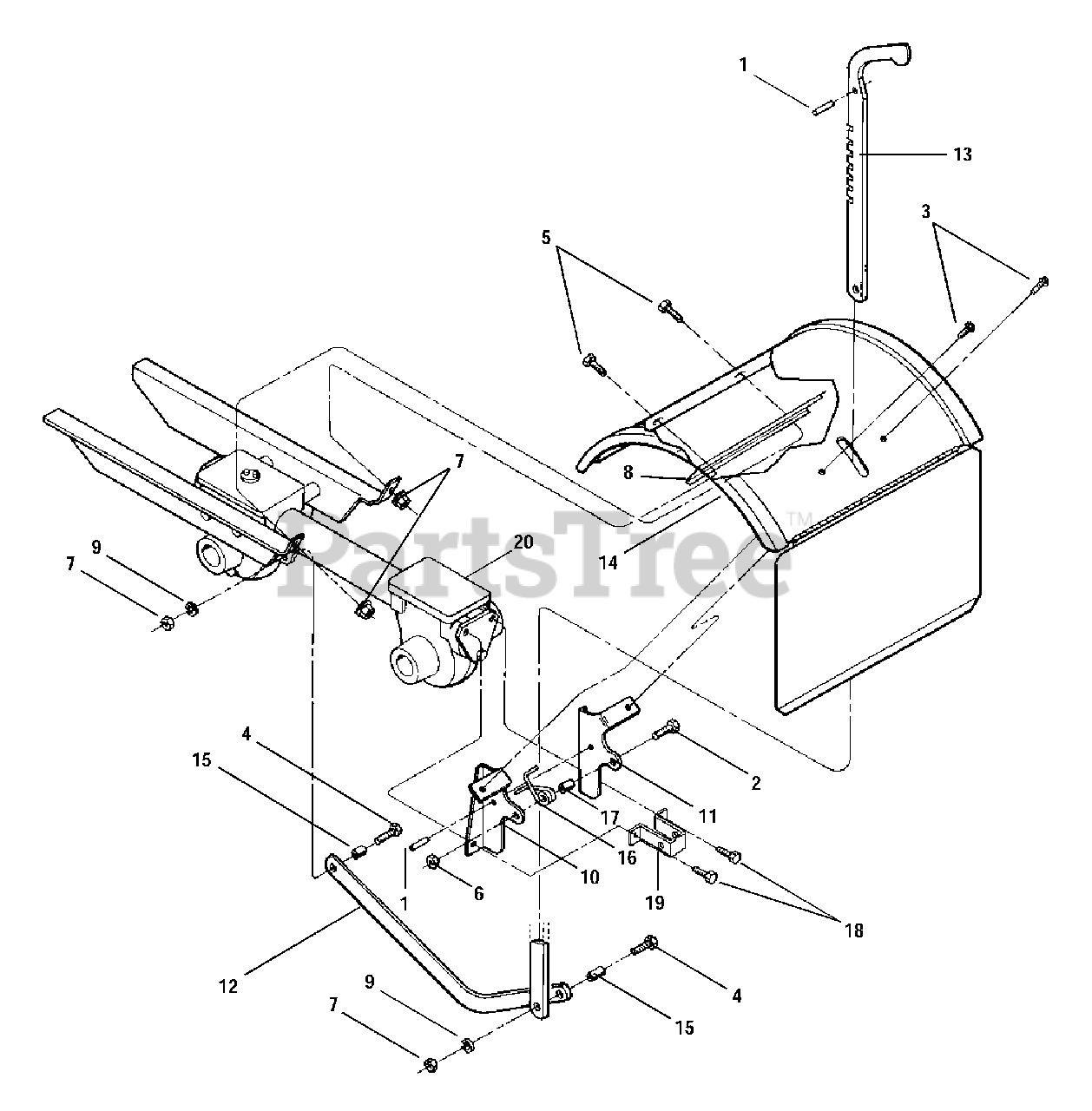

Drag Bar Parts Diagram

  • Title
1

Troy-Bilt 1185469

Spirol Pin
(Superseded to 715-04034)

$6.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 710-0597

Hex Hd. Screw, 1/4-20 x 1

$3.99

$

In Stock, Qty 14

0

3

Troy-Bilt 710-0599

Screw, Self-Tapping,1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0874

Hex Hd. Screw, 5/16-18 x 1-1/4

$6.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-3008

Hex Hd. Screw, 5/16-18 x 3/4

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-0324

Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Troy-Bilt 712-0429

Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

MTD 1916707

Support Bracket
(Superseded to 1916707001)

$

$

Not available

9

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1916120001

Hood Bracket, Left Hand
(Superseded to 786-04290-0638)

$31.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 1916119001

Hood Bracket, Right Hand
(Superseded to 786-04291-0638)

$

$

Not available

12

Troy-Bilt 1916121001

Drag Bar
(Superseded to 786-04104-0638)

$36.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 1916118001

Depth Regulator Lever
(Superseded to 786-04292A-0638)

$66.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1917594

Tine Hood Assembly
(Superseded to 686-04077B-0638)

Note: For Models 634F & 634A

$195.99

$

In Stock, only 1 left!

0

Troy-Bilt 1904572

Tine Hood Assembly
(Superseded to 686-04076A-0638)

Note: For Model 630C

$89.99

$

In Stock, only 3 left!

0

15

$

$

Not available

16

Troy-Bilt GW-9384

Spring, Depth Regulator
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 9

0

17

$4.49

$

In Stock, Qty 8

0

18

Troy-Bilt 710-04048

Hex Hd. Flange Screw, 5/16-18 x 1

$4.99

$

In Stock, Qty 7

0

19

Troy-Bilt 786-04191

Trail Shield Stop Bracket
(Superseded to 786-04191-0637)

Variations

Troy-Bilt 786-04191-0637

BRACKET-HOOD STOP - POWDER BLACK (0637)

$

$

Not available

$

$

20

Troy-Bilt 618-04000

Transmission Assembly
(Superseded to 753-05332)

Note: For Models 634F & 634A

$1151.99

$

Usually ships in 3-6 days

0

MTD 618-04001

Transmission Assembly

Note: For Model 630C

$

$

Not available
