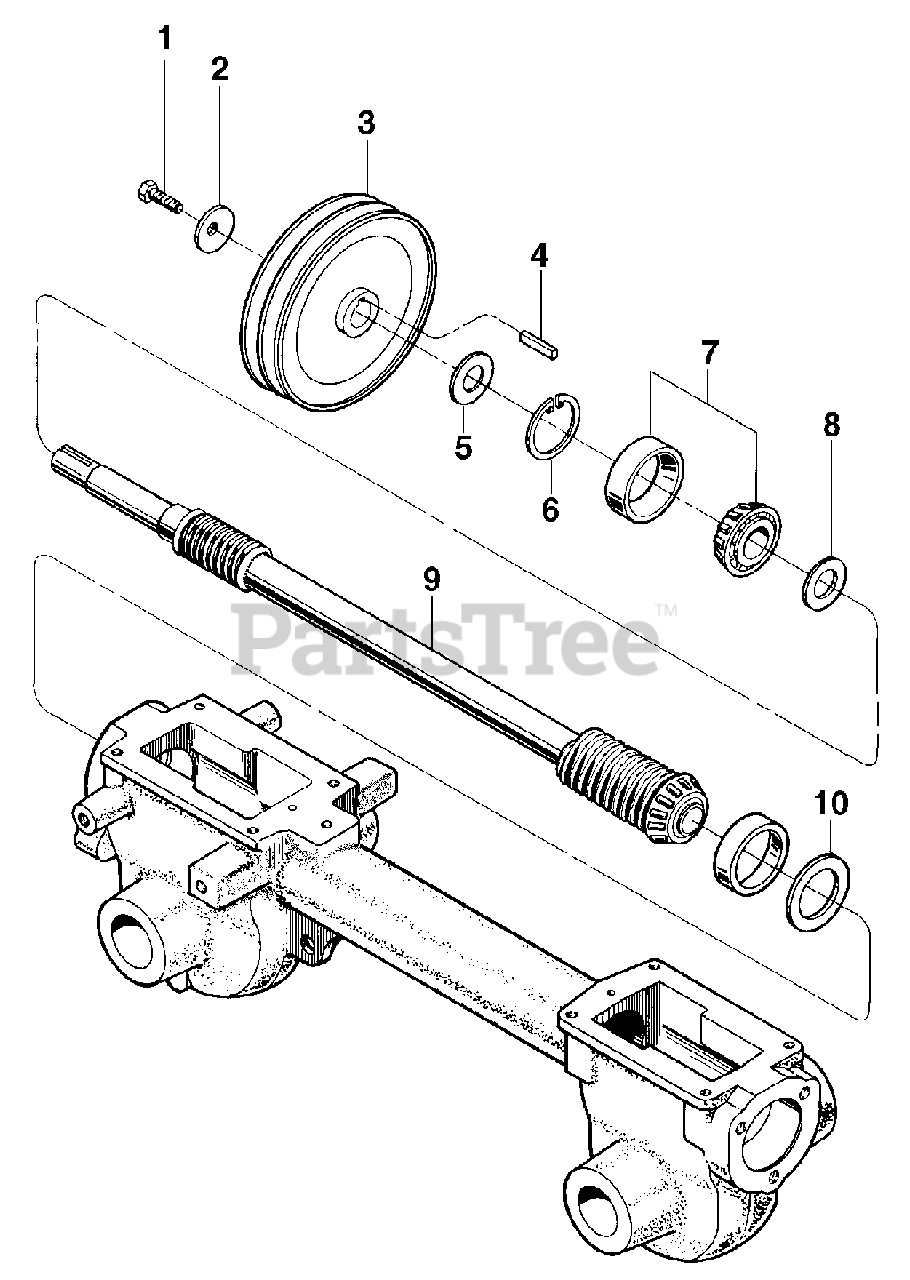

21A-630B063 - Troy-Bilt Rear-Tine Tiller (2002) Drive Shaft Parts Diagram

Rear-Tine Tiller

Drive Shaft Parts Diagram

  • Title

1

Troy-Bilt 710-0157

Hex Screw, 5/16-24 x 3/4, Grade 5

Note: (For Model 630B)

$4.49

$

In Stock, Qty 8

0

Troy-Bilt 910-0888

Hex Screw, 5/16-24 x 1, Grade 5
(Superseded to 710-0888)

Note: (For Model 634B and 634F)

$4.49

$

In Stock, Qty 5

0

2

Troy-Bilt GW-9944

Belleville Washer
(Superseded to 736-04193)

$6.99

$

In Stock, only 1 left!

0

3

MTD GW-55031

Transmission Pulley
(Superseded to 656-04017)

Note: (For Model 630B)

$

$

Not available

Troy-Bilt 1916532

Transmission Pulley
(Superseded to 656-04005A)

Note: (For Model 634B and 634F)

$

$

Not available

4

Troy-Bilt GW-9301

Key, Transmission Pulley, 3/16 x 1

$3.99

$

In Stock, only 3 left!

0

5

Troy-Bilt GW-50027

Support Washer, Front

$6.99

$

In Stock, Qty 7

0

6

Troy-Bilt GW-9517

Snap Ring
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 941-0107

Bearing, Tapered Roller (with race)

$47.99

$

In Stock, Qty 18

0

8

Troy-Bilt GW-50043

Support Washer, Rear
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 11

0

9

Troy-Bilt 1904281

Drive Shaft Ass'y

$

$

Not available

10

Troy-Bilt GW-1224-1

Shim, Rear Bearing Cap, .010" thick
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt GW-1224-2

Shim, same as above, except .030" thick
(Superseded to 736-04307)

$4.49

$

In Stock, only 3 left!

0

Troy-Bilt GW-1224-3

Shim, same as above, except .005" thick
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 6

0

Troy-Bilt GW-1224-4

Shim, same as above, except .062" thick
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 16

0

Troy-Bilt GW-1325C

Shim Set

Note: (Incl. the following shims: two #1224-1, two 1224-2, one 1224-3, and one #1224-4)

$15.99

$

In Stock, only 2 left!

0

$

$

Not available
