21A-495B766 - Troy-Bilt Pro-Line FRT Tiller (2017) Tine Shield Parts Diagram

Pro-Line FRT Tiller

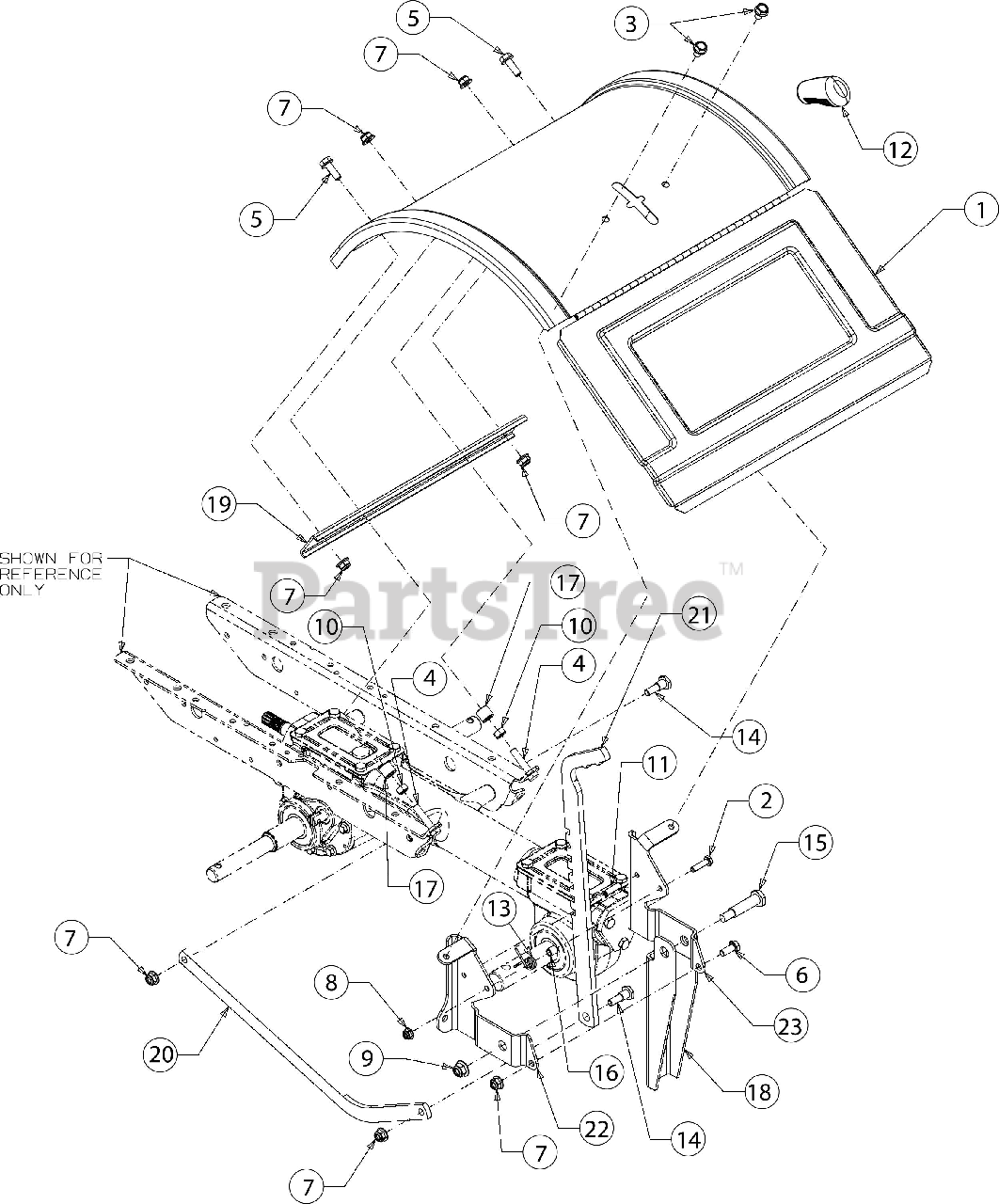

Tine Shield Parts Diagram

  • Title
1

Troy-Bilt 686-04077B-0638

TINE SHIELD ASSEMBLY

$195.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 14

0

3

Troy-Bilt 710-0604A

SCREW 5/16-18 X .625

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0805A

SCREW 5/16-18 X 1.5 LG

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1238

SCREW 5/16-18 X .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3008

SCREW 5/16-18 X .75 GR5

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 5

0

8

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 912-3010

HEX NUT
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 715-0108

SPRING PIN 1/4 X 1.00

$4.99

$

In Stock, Qty 15

0

$9.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 732-04320

TORSION SPRING

$4.49

$

In Stock, Qty 11

0

14

Troy-Bilt 738-04320

SHOULDER SCREW

$5.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 938-0533

SHOULDER BOLT .498 X 1.635:3/8-16
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 750-05349

ROUND SPACER

$3.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 750-06165

SPACER .335 X .625 X .560

$2.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 786-04092-0638

REVERSE STOP ARM

$27.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 786-04098-0638

SUPPORT BRACKET

$32.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 786-04104-0638

DEPTH DRAG BAR

$36.99

$

In Stock, only 1 left!

0

$66.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 786-04363-0638

TAIL BRACKET (LH)

$24.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 786-04364-0638

TAIL BRACKET (RH)

$24.99

$

In Stock, only 1 left!

0
