21A-495B766 - Troy-Bilt Pro-Line FRT Tiller (2017) Handle Parts Diagram

Pro-Line FRT Tiller

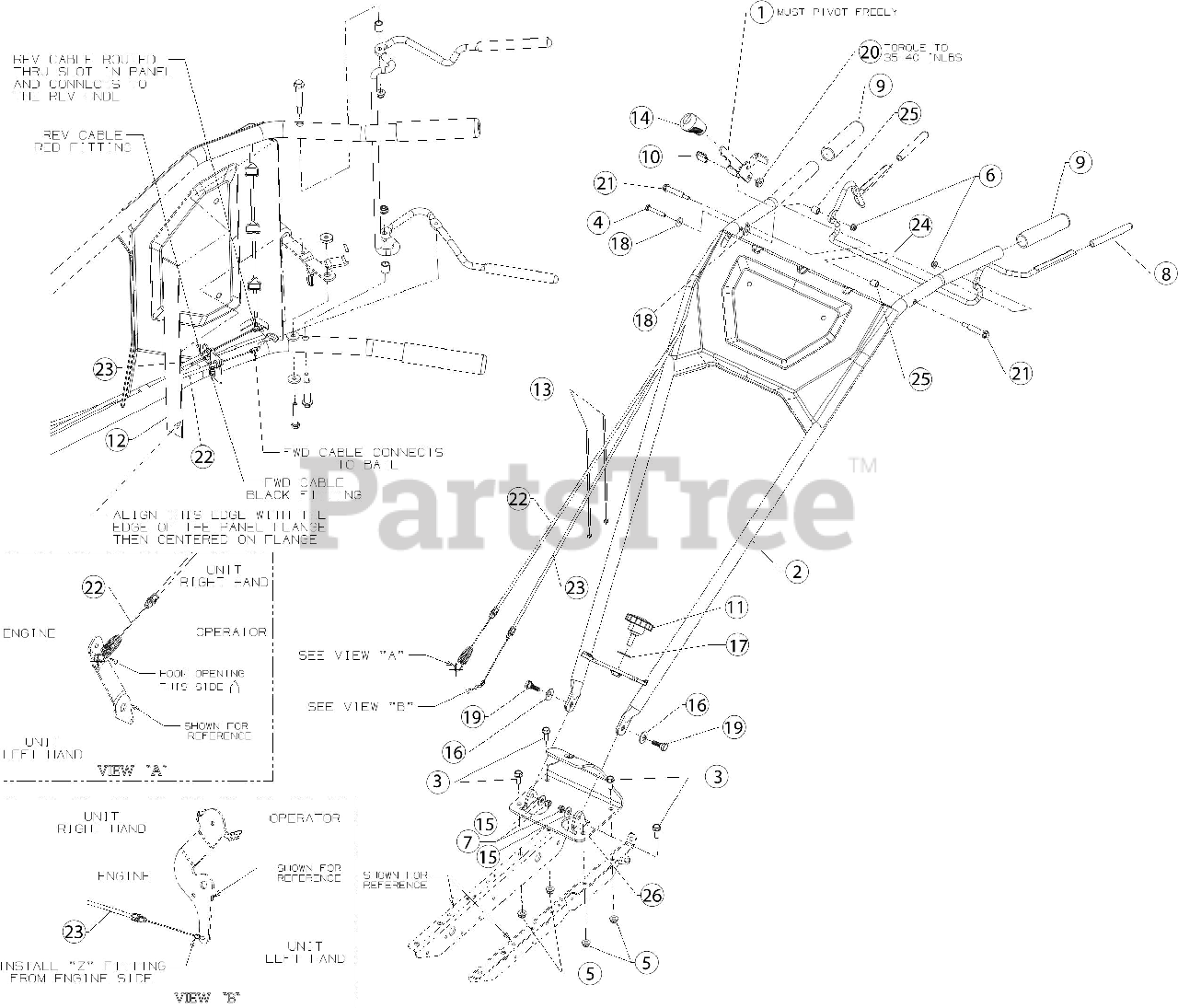

Handle Parts Diagram

  • Title
1

Troy-Bilt 686-04135-0638

REVERSE HANDLE ASSEMBLY

$25.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 686-05007-0638

HANDLE ASSEMBLY
(Superseded to 686-05007A-0638)

$190.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-1238

SCREW 5/16-18 X .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-3288

BOLT 1/4-20X1.62 GR5

$6.99

$

In Stock, Qty 12

0

5

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

8

Troy-Bilt 720-0269

CLUTCH GRIP

$4.99

$

In Stock, only 1 left!

0

$11.99

$

In Stock, Qty 11

0

$4.49

$

In Stock, only 3 left!

0

11

Troy-Bilt 720-05076

STAR KNOB 3/8-16

$18.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 721-04687

TAPE FOAM 1.25 X 13.53 X .10

$12.99

$

Usually ships in 3-6 days

0

13

$3.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 731-04735

BRAKE HANDLE GRIP

$20.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

16

Troy-Bilt 736-0407

BELL WASHER

$3.99

$

In Stock, Qty 12

0

17

Troy-Bilt 736-0741

BELL WASHER

$4.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 936-0176

FLAT WASHER
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 938-0296

SHOULDER SCREW .437
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 738-0440

SHOULDER SPACER

$5.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 738-05077

SHOULDER SCREW .375 X 1.62 X 1/4-20

$5.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 946-04413A

FORWARD CABLE

$35.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 946-04414A

REVERSE CABLE

$38.99

$

In Stock, only 3 left!

0

24

MTD 747-06372-0638

CLUTCH BAIL

$41.99

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 786-05015-0638

HANDLE MOUNT PLATE

$44.99

$

Usually ships in 3-6 days

0
