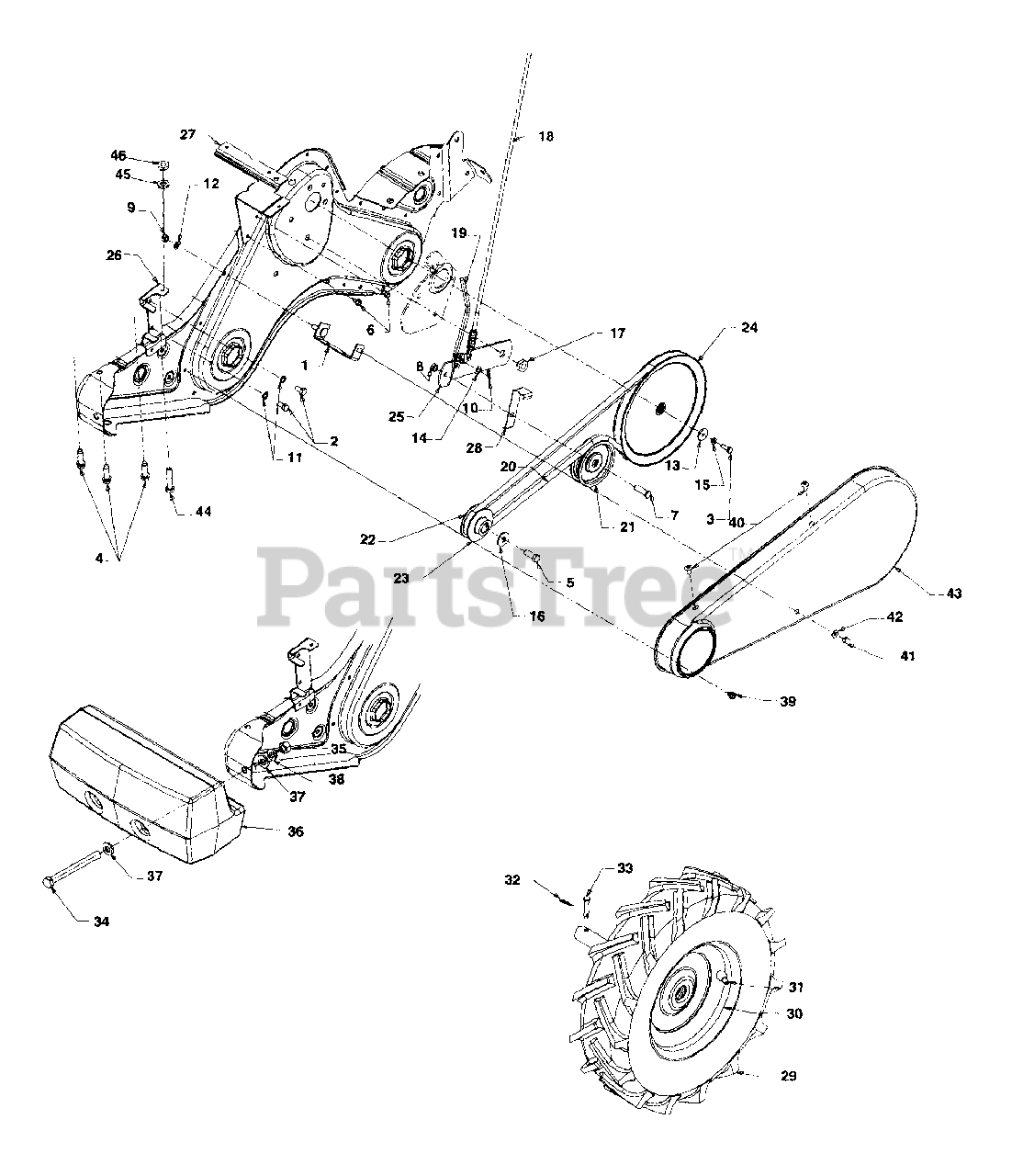

21A-457A000 - Yard Machines Tiller (1999) Drive Parts Diagram

Tiller

Drive Parts Diagram

  • Title

1

MTD 686-0111

Belt Cover Brkt. Ass'y

Variations

MTD 686-0111-0637

Cover Bracket Assembly - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

2

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

3

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

4

MTD 710-0502A

Hex Wash. TT-Sems Screw 3/8-16 x 1.250" Lg.

$6.99

$

In Stock, only 2 left!

0

5

MTD 710-0591

Hex Bolt 3/8-24 x 1.00

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-0599

Hex Wash. Hd. S-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0723

Hex Cap Screw 3/8-16 x 1.25

$4.99

$

In Stock, only 3 left!

0

8

MTD 712-0266

Ctr. Lock Jam Nut 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0104

Hairpin Clip
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

12

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0176

Fl-Wash. 1/4 I.D. x .93 O.D.

$4.99

$

In Stock, only 4 left!

0

14

MTD 736-0271

Spring-Wash. .317 x .625 O.D. x .099
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

15

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

MTD 736-0452

Bell-Wash. .396 x 1.140 x .095

$4.99

$

In Stock, Qty 5

0

17

MTD 738-0876

Shld. Nut 7/16-20
(Superseded to 738-0876A)

$10.99

$

In Stock, Qty 15

0

18

MTD 746-1083

Clutch Cable
(Superseded to 946-1083)

$64.99

$

Usually ships in 3-6 days

0

19

MTD 747-1159

Idler Pulley Rod

$26.99

$

Usually ships in 3-6 days

0

20

MTD 754-0434

Belt: 4L x 58.16 Lg.
(Superseded to 954-0434)

$61.99

$

Usually ships in 3-6 days

0

21

MTD 756-0405

Fl-Idler w/Flange 3.75" O.D.

$71.99

$

Usually ships in 3-6 days

0

22

MTD 756-0971

Outer Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

23

MTD 756-0972

Inner Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

24

MTD 756-1162

Input Pulley

$90.99

$

In Stock, only 1 left!

0

25

MTD 786-0064A

Idler Bracket

$38.99

$

In Stock, only 1 left!

0

26

MTD 786-0185

Belt Keeper Brkt.
(Superseded to 786-0185A-0637)

Variations

MTD 786-0185-0637

Belt Keeper Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

MTD 786-0186

Belt Keeper Brkt.
(Superseded to 786-0186-0637)

Note: (Models 454, 456, 458)

Variations

MTD 786-0186-0637

BRACKET-BELT KEEPE - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

27

MTD 786-0187

Shift Cover Brkt.
(Superseded to 786-0187-0637)

Variations

MTD 786-0187-0637

BRACKET-SHIFT COVE - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

MTD 786-0123A

Shift Cover Brkt.

Note: (Models 452, 454, 456)

Variations

MTD 786-0123A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 786-0193

Idler Belt Keeper
(Superseded to 786-0193-0637)

Variations

MTD 786-0193-0637

Idler Belt Keeper - POWDER BLACK (0637)

$9.99

$

Usually ships in 3-6 days

0

$9.99

$

Usually ships in 3-6 days

0

29

MTD 634-0110

RH Wheel Ass'y Comp. 14.0 x 4.5
(Superseded to 634-0240)

Variations

MTD 634-0110-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

$

$

MTD 634-0111

LH Wheel Ass'y Comp. 14.0 x 4.5
(Superseded to 634-0241)

Variations

MTD 634-0111-0911

WHEEL ASM-COMP LH - Carlisle Gray (0911)

$

$

Not available

$

$

MTD 634-0106

RH Wheel Ass'y Comp. 16.0 x 4.0

Variations

MTD 634-0106-0931

No Longer Available WHEEL ASM COMPL 16 - Carlisle Beige (0931)

$

$

Not available

MTD 634-0106-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0106-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 634-0106-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0106-0942

No Longer Available - Dico Yellow (0942)

$

$

Not available

$

$

MTD 634-0107

LH Wheel Ass'y Comp. 16.0 x 4.0

Variations

MTD 634-0107-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 634-0107-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0107-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 634-0107-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0107-0942

No Longer Available - Dico Yellow (0942)

$

$

Not available

$

$

MTD 634-1796

Tire Only 14.0 x 4.5

$

$

Currently unavailable

MTD 734-0808

Tire Only 16.0 x 4.0
(Superseded to 734-0808A)

Variations

MTD 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$123.99

$

Usually ships in 3-6 days

0

MTD 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$123.99

$

Usually ships in 3-6 days

0

MTD 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$123.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

30

MTD 634-0108

Wheel Rim Ass'y Comp.

Variations

MTD 634-0108-0662

Rim Only - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0108-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 634-0108-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

MTD 634-0112

Wheel Rim Ass'y Comp.

Variations

MTD 634-0112-0662

Wheel Rim Assembly - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0112-0674

Wheel Rim Assembly - YARDMAN YELLOW (0674)

$

$

Not available

$

$

31

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

32

MTD 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

33

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0382

Hex Bolt 1/2-13 x 5.00" Lg.

$12.99

$

In Stock, only 2 left!

0

35

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

36

MTD 723-0381

Counterweight

$

$

Not available

37

MTD 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

38

MTD 736-0921

L-Wash. 1/2" Lg.

$4.49

$

In Stock, Qty 6

0

39

MTD 710-0653

Hex Screw 1/4-20 x .375" Lg.

$4.49

$

In Stock, Qty 8

0

40

MTD 710-1017

Screw 1/4-14 x .625" Lg.

$8.49

$

In Stock, Qty 9

0

41

MTD 712-0392

Acorn Lock Nut

$6.99

$

In Stock, only 1 left!

0

42

MTD 736-0463

Fl-Washer 1/4 x .620" Lg.

$4.49

$

In Stock, Qty 12

0

43

MTD 784-0158A

Belt Cover
(Superseded to 784-0158B)

Variations

MTD 784-0158A-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0716

Belt Cover, Yellow - CUB YELLOW-99 (0716)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4021

Belt Cover, Yellow - CUB YELLOW 2 (4021)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0606

COVER-BELT - MAJESTIC ORANGE (0606)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0640

COVER-BELT - CO-OP GREEN (0640)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0650

COVER-BELT - RED METALLIC (0650)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0662

COVER-BELT - OYSTER GRAY (0662)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0665

COVER-BELT - YARDMAN GREEN (0665)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0691

COVER-BELT - BLACK JACK (0691)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0709

COVER-BELT - MASTERCRAFT GREEN (0709)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4015

COVER-BELT - FIRE RED (4015)

$95.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

44

MTD 710-0805

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

Note: (Models 454, 456, 458)

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0242

Bell-Wash. .340 I.D. x .872 O.D.

Note: (Models 454,456,458)

$4.49

$

In Stock, Qty 20+

0

46

MTD 712-3010

Nut:Hex 5/16-18

Note: (Models 454,456,458)

$4.49

$

In Stock, Qty 20+

0
