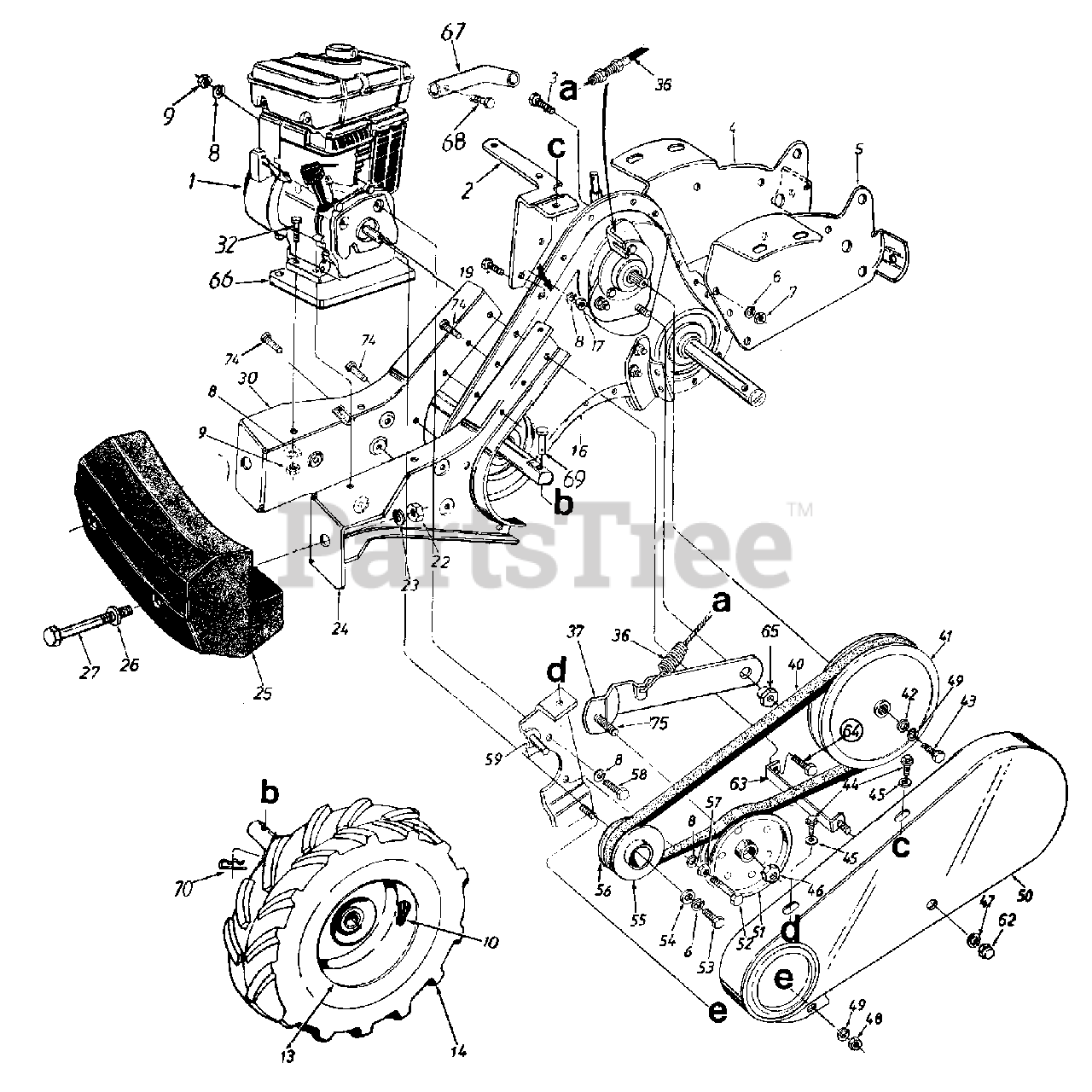

21A-447-206 - Ranch King Tiller (1998) Drive/Wheel Parts Diagram

Tiller

Drive/Wheel Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 786-0123

Shift Cover Mounting Brkt.

Variations

MTD 786-0123-0637

No Longer Available BRACKET-SH - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

4

MTD 784-0178

Tine Shield Mtg. Brkt.-R.H.
(Superseded to 784-0178-0637)

Variations

MTD 784-0178-0483

BRACKET-MTG-RH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0178-0637

BRACKET-MTG-RH - POWDER BLACK (0637)

$

$

Not available

MTD 784-0178-0638

BRACKET-MTG-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0178-0665

BRACKET-MTG-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

MTD 784-0177

Tine Shield Mtg. Brkt.-L.H.

Variations

MTD 784-0177-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0177-0637

No Longer Available BRACKET-MT - POWDER BLACK (0637)

$

$

Not available

MTD 784-0177-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0177-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

8

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-0267

Hex Nut 5/16-18" Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

13

MTD 634-0108

Wheel Rim Ass'y. Only

Variations

MTD 634-0108-0662

Rim Only - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0108-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 634-0108-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

14

MTD 634-0107

L.H. Wheel Ass'y. Comp.

Variations

MTD 634-0107-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 634-0107-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0107-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 634-0107-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0107-0942

No Longer Available - Dico Yellow (0942)

$

$

Not available

$

$

MTD 634-0106

R.H. Wheel Ass'y. Comp.

Variations

MTD 634-0106-0931

No Longer Available WHEEL ASM COMPL 16 - Carlisle Beige (0931)

$

$

Not available

MTD 634-0106-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0106-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 634-0106-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0106-0942

No Longer Available - Dico Yellow (0942)

$

$

Not available

$

$

MTD 734-0808

Tire Only
(Superseded to 734-0808A)

Variations

MTD 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$123.99

$

Usually ships in 3-6 days

0

MTD 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$123.99

$

Usually ships in 3-6 days

0

MTD 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$123.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

16

MTD 686-0098

Gear Case Ass'y. Comp.

$

$

Not available

17

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0376

Hex Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, only 2 left!

0

24

MTD 686-0079A

Engine Mounting Rail - L.H.

Note: Code N

Variations

MTD 686-0079A-0498

No Longer Available RAIL-ENGIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 686-0079A-0637

No Longer Available RAIL-ENGIN - POWDER BLACK (0637)

$

$

Not available

MTD 686-0079A-0665

No Longer Available RAIL-ENGIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

25

MTD 723-0381

Counter Weight

$

$

Not available

26

MTD 736-0326

Fl-Wash. .510" I.D. x 1.0"

$4.49

$

In Stock, only 2 left!

0

27

MTD 710-0382

Hex Bolt 1/2-13 x 5.00" Lg.

$12.99

$

In Stock, only 2 left!

0

30

MTD 686-0080A

Engine Mounting Rail - R.H.

Note: Code N

Variations

MTD 686-0080A-0498

No Longer Available RAIL-ENGIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 686-0080A-0637

No Longer Available RAIL-ENGIN - POWDER BLACK (0637)

$

$

Not available

MTD 686-0080A-0665

No Longer Available RAIL-ENGIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

?31

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 12

0

32

MTD 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

36

MTD 746-0908

Clutch Control Cable 46" Lg.
(Superseded to 946-0908)

$75.99

$

In Stock, Qty 15

0

37

MTD 786-0064

Idler Bracket

$

$

Currently unavailable

40

MTD 754-0434

"V"-Belt
(Superseded to 954-0434)

$61.99

$

Usually ships in 3-6 days

0

41

MTD 756-0634

Fl-Pulley 8" O.D.

$86.99

$

Usually ships in 3-6 days

0

42

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

43

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

44

MTD 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0463

Fl-Wash. .281" I.D. x .625"

$4.49

$

In Stock, Qty 20+

0

46

MTD 712-0266

Cent. L-Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

47

UNKNOWN

$

$

Not available

48

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

49

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

50

MTD 784-0158

Belt Cover
(Superseded to 784-0158B)

Variations

MTD 784-0158-0637

USE 784-0158B-0638 COVER-BELT - POWDER BLACK (0637)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158-0638

USE 784-0158B-0638 COVER-BELT - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158-0483

USE 784-0158A COVER-BELT - CHARCOAL GRAY (0483)

$76.99

$

Usually ships in 3-6 days

0

MTD 784-0158-0662

COVER-BELT - OYSTER GRAY (0662)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158-0665

COVER-BELT - YARDMAN GREEN (0665)

$88.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

51

MTD 756-0405

Fl-Idler w/Flanges 3.75" O.D.

$71.99

$

Usually ships in 3-6 days

0

52

MTD 710-0409

Hex Bolt 5/16-24 x 1.75"

$4.99

$

Usually ships in 3-6 days

0

53

MTD 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

54

UNKNOWN

$

$

Not available

55

MTD 756-0971

Outer Engine Pulley Half

$14.99

$

In Stock, only 2 left!

0

56

MTD 756-0972

Inner Engine Pulley Half

$16.99

$

In Stock, only 2 left!

0

57

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

58

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

59

MTD 686-0065

Belt Keeper Ass'y.

$

$

Not available

62

MTD 712-0392

Hex Cap Nut 1/4-28 Thd.

$6.99

$

In Stock, only 1 left!

0

63

MTD 686-0064

Belt Cover Brkt. Ass'y.

$

$

Currently unavailable

64

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

65

MTD 738-0876

Shld. Nut
(Superseded to 738-0876A)

$10.99

$

In Stock, Qty 15

0

66

MTD 717-0522

Engine Spacer Block

$

$

Not available

67

MTD 751-0596

Outlet Pipe

$

$

Not available

68

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

69

MTD 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

70

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

74

MTD 710-0602

Screw 5/16-18 x 1"

$4.49

$

In Stock, Qty 20+

0

75

MTD 710-0723

Hex Hd. Cap Scr. 3/8-16:1.25" Lg.

$4.99

$

In Stock, only 3 left!

0
