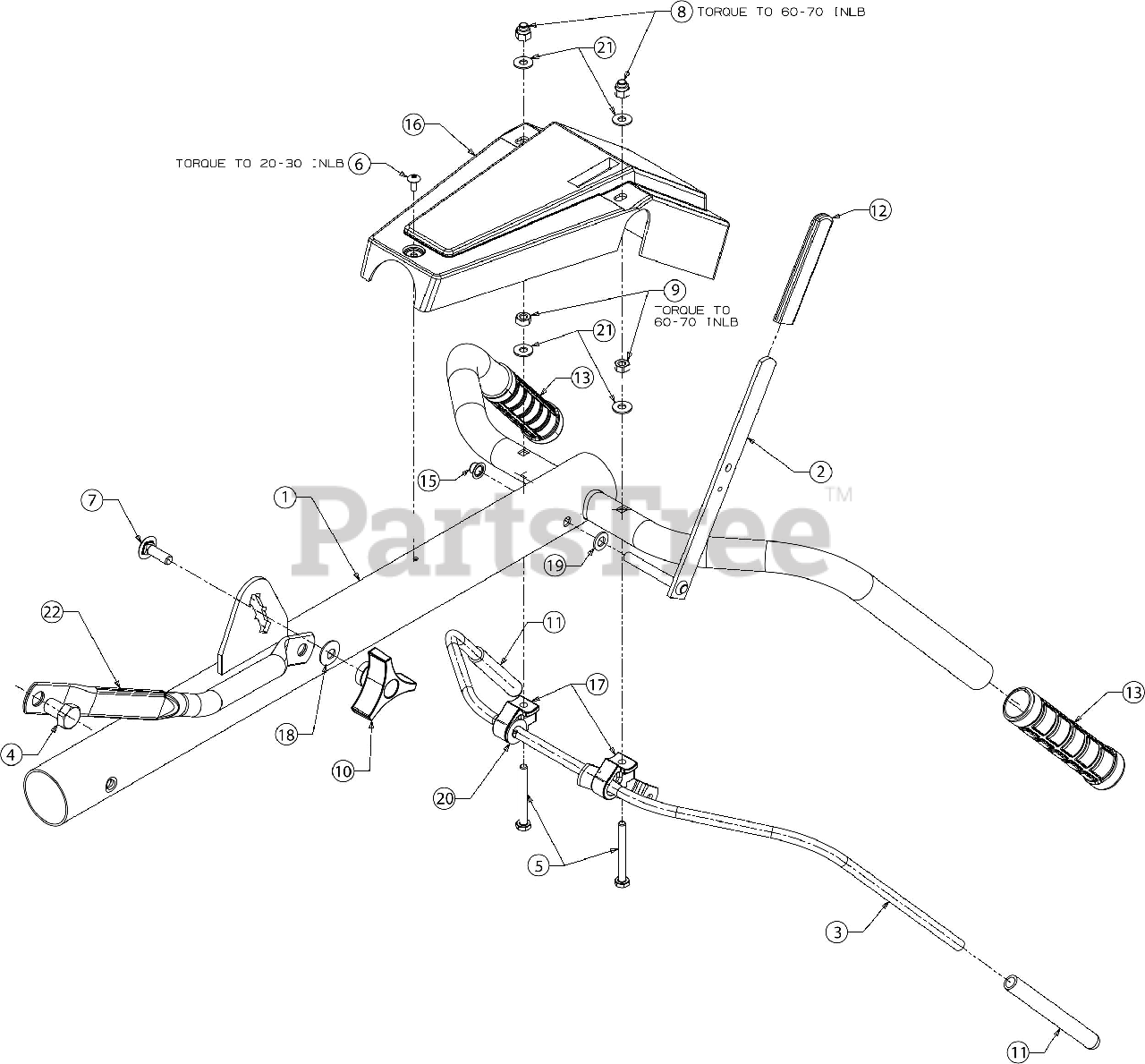

21A-39M8711 - Troy-Bilt Colt XP Front-Tine Tiller (2018) Handle Parts Diagram

Colt XP Front-Tine Tiller

Handle Parts Diagram

  • Title

1

Troy-Bilt 649-04040

HANDLE ASSEMBLY

Note: (Choose Color When Ordering)

Variations

Troy-Bilt 649-04040-0638

HANDLE:ASM:LONGHORN - MTD/TROY-BILT RED (0638)

$113.99

$

Usually ships in 3-6 days

0

Troy-Bilt 649-04040-4021

HANDLE:ASM:LONGHORN - CUB YELLOW 2 (4021)

$130.99

$

Usually ships in 3-6 days

0

Troy-Bilt 649-04040-0606

HANDLE:ASM:LONGHORN - MAJESTIC ORANGE (0606)

$113.99

$

Usually ships in 3-6 days

0

Troy-Bilt 649-04040-0691

HANDLE:ASM:LONGHORN - BLACK JACK (0691)

$113.99

$

Usually ships in 3-6 days

0

Troy-Bilt 649-04040-0716

HANDLE:ASM:LONGHORN - CUB YELLOW-99 (0716)

$130.99

$

Usually ships in 3-6 days

0

Troy-Bilt 649-04040-0721

HANDLE:ASM:LONGHORN - SEARS RED (0721)

$130.99

$

Usually ships in 3-6 days

0

Troy-Bilt 649-04040-4033

HNDL ASM-LONGHORN - FLINT MICA (4033)

$130.99

$

Usually ships in 3-6 days

0

Troy-Bilt 649-04040-4044

HANDLE:ASM:LONGHORN - CRAFTSMAN RED (4044)

$130.99

$

Usually ships in 3-6 days

0

$113.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 686-0014C-0637

REVERSE HANDLE ASSEMBLY

$21.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 686-0083-0637

CLUTCH HANDLE ASSEMBLY

$50.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-06053

BOLT 1/2-20 X .75 GR5

$6.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0641

SCREW 1/4-20 X 2.25 GR5

$4.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-0779A

SCREW #10-16 X .500

$4.49

$

In Stock, Qty 12

0

7

Troy-Bilt 710-1236

SCREW 5/16-18 X 1.00

$6.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

9

Troy-Bilt 712-3006

HEX NUT

$4.99

$

In Stock, Qty 19

0

10

Troy-Bilt 720-0195

HANDLE KNOB

$15.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 720-0269

CLUTCH GRIP

$4.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 720-0270A

REVERSE LEVER GRIP

$8.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 720-0270A

GRIP-REVERSE LEVER

$8.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 726-0135

SPEED NUT

$6.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 731-1600

HANDLE COVER PANE

$55.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 931-1645B

HANDLE CLUTCH HOLDER

$16.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 736-0242

BELL WASHER .337 X.867 X .057

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

20

Troy-Bilt 936-0300

FLAT WASHER
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 936-3020

FLAT WASHER .271:.630:.065
(Superseded to 736-3020)

$

$

Not available

22

Troy-Bilt 749-1401A

HANDLE BRACE

Note: (Choose Color When Ordering)

Variations

Troy-Bilt 749-1401A-0606

TUBE-BRACE HANDLE - MAJESTIC ORANGE (0606)

$47.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1401A-0638

TUBE-BRACE HANDLE - MTD/TROY-BILT RED (0638)

$41.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1401A-0691

TUBE-BRACE HANDLE - BLACK JACK (0691)

$50.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1401A-4021

Handle Brace Tube - CUB YELLOW 2 (4021)

$41.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1401A-0650

TUBE-BRACE HANDLE - RED METALLIC (0650)

$47.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1401A-0665

TUBE-BRACE HANDLE - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1401A-0721

TUBE-BRACE HANDLE - SEARS RED (0721)

$50.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1401A-4033

TUBE-BRACE HANDLE - FLINT MICA (4033)

$41.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-1401A-4044

TUBE-BRACE HANDLE - CRAFTSMAN RED (4044)

$50.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days
