21A-392B401 - Yard-Man Tiller (2002) General Assembly Parts Diagram

Tiller

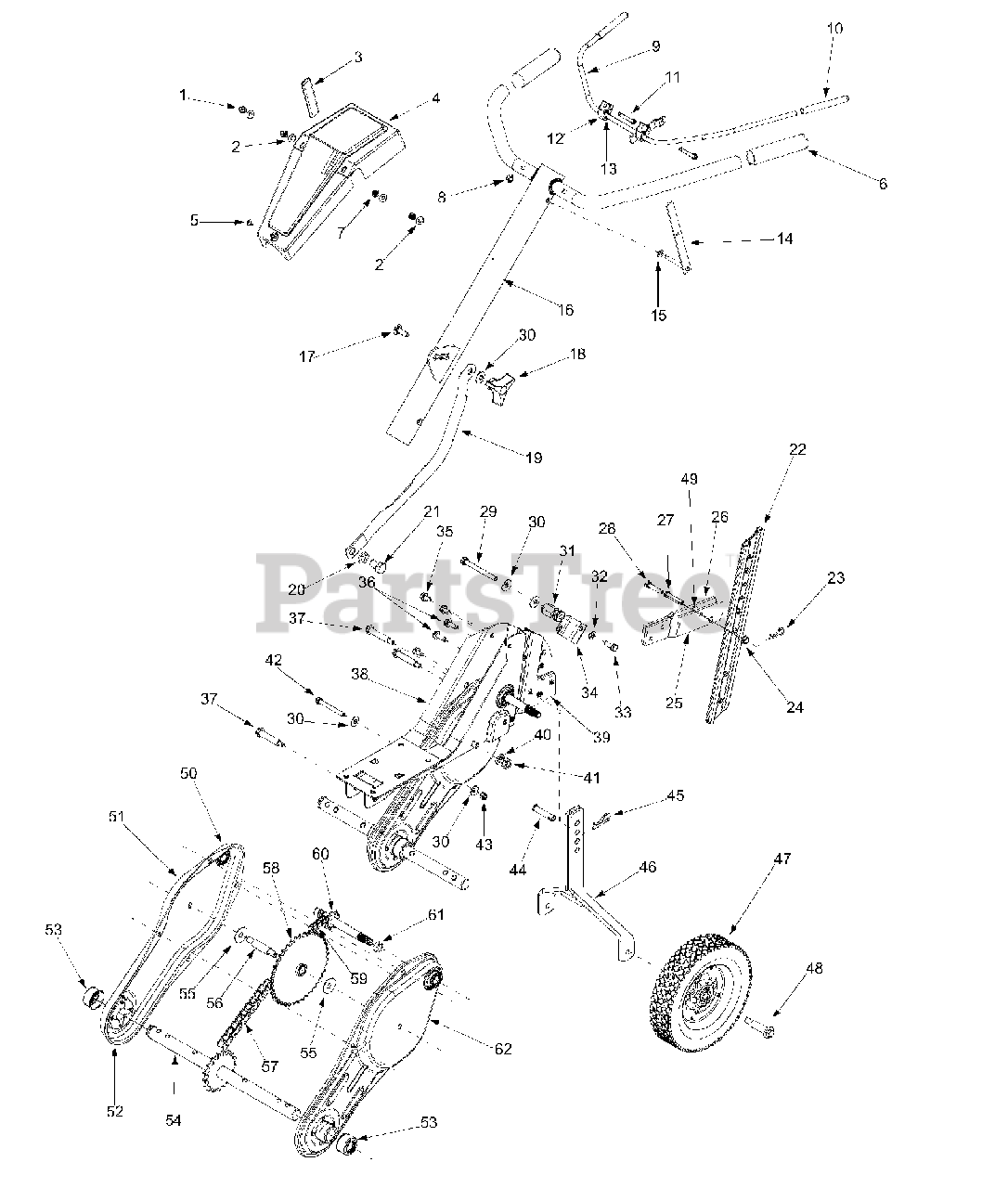

General Assembly Parts Diagram

  • Title

1

MTD 712-0442

Acorn Lock Nut 1/4-20

$6.99

$

In Stock, only 4 left!

0

2

MTD 736-3020

Flat Washer .271" I.D. x .630" O.D.

$6.99

$

In Stock, Qty 9

0

3

MTD 720-0270A

Reverse Handle Grip

$8.49

$

Usually ships in 3-6 days

0

4

MTD 731-1600

Handle Cover

$55.99

$

Usually ships in 3-6 days

0

5

MTD 710-0779A

Truss Mach. Scr. #10 x 1/2" Lg.

$4.49

$

In Stock, Qty 12

0

6

MTD 720-0274

Grip-Handle

$11.99

$

In Stock, Qty 11

0

7

MTD 712-0287

Hex Nut 1/4-20 Gr.2
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

8

MTD 726-0135

Cap Speed Nut

$6.99

$

In Stock, only 1 left!

0

9

MTD 686-0083

Clutch Handle Assembly
(Superseded to 686-0083-0637)

Variations

MTD 686-0083-0637

Clutch Handle Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

10

MTD 720-0269

Grip-Clutch

$4.99

$

In Stock, only 1 left!

0

11

MTD 710-0641

Hex Bolt 1/4-20 x 2.25" Lg. Gr.5

$4.49

$

In Stock, only 2 left!

0

12

MTD 731-1645A

Clutch Handle Holder
(Superseded to 931-1645B)

$16.99

$

In Stock, only 2 left!

0

13

MTD 736-0140

Flat Washer .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

14

MTD 686-0014A

Reverse Handle Ass'y
(Superseded to 686-0014C-0637)

Variations

MTD 686-0014A-0637

HANDLE ASM:REVERSE - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

15

MTD 736-0264

Flat Washer .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

16

MTD 649-0022B

Handle Assembly Comp.

Variations

MTD 649-0022B-0691

HANDLE:ASM:LONGHORN - BLACK JACK (0691)

$113.99

$

Usually ships in 3-6 days

0

MTD 649-0022B-0498

HANDLE ASSY-LONGHORN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 649-0022B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 649-0022B-0662

HANDLE ASSY-LONGHORN - OYSTER GRAY (0662)

$

$

Not available

$

$

17

MTD 710-1236

Carriage Screw 5/16-18 x 1.0

$6.99

$

In Stock, only 4 left!

0

18

MTD 720-0195

Hand Knob

$15.99

$

Usually ships in 3-6 days

0

19

MTD 749-1401

Handle Brace
(Superseded to 749-1401A)

Variations

MTD 749-1401-0638

TUBE-BRACE HANDLE - MTD/TROY-BILT RED (0638)

$41.99

$

Usually ships in 3-6 days

0

MTD 749-1401-0691

TUBE-BRACE HANDLE - BLACK JACK (0691)

$50.99

$

Usually ships in 3-6 days

0

MTD 749-1401-0716

Handle Brace Tube - CUB YELLOW-99 (0716)

$41.99

$

Usually ships in 3-6 days

0

MTD 749-1401-4021

Handle Brace Tube - CUB YELLOW 2 (4021)

$41.99

$

Usually ships in 3-6 days

0

MTD 749-1401-0650

TUBE-BRACE HANDLE - RED METALLIC (0650)

$47.99

$

Usually ships in 3-6 days

0

MTD 749-1401-0665

TUBE-BRACE HANDLE - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

20

MTD 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

21

MTD 710-3194

Hex Bolt 1/2-20 Gr. 5

$6.99

$

In Stock, only 1 left!

0

22

MTD 786-0005

Depth Bar
(Superseded to 786-0005-0637)

Variations

MTD 786-0005-0637

Depth Bar, Powder Black - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

23

MTD 714-0149B

Cotter Pin

$4.49

$

In Stock, Qty 18

0

24

MTD 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

MTD 786-0003

Tail Piece Bracket (L.H.)
(Superseded to 786-0003-0637)

Variations

MTD 786-0003-0637

Tailpiece Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

26

MTD 786-0004

Tail Piece Bracket (R.H.)
(Superseded to 786-0004-0637)

Variations

MTD 786-0004-0637

Tailpiece Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

27

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

28

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

30

MTD 736-0242

Wash. Bell. .340" I.D. x .872" O.D.

$4.49

$

In Stock, Qty 20+

0

31

MTD 711-1036A

Spec. Hex Nut

$17.99

$

Usually ships in 3-6 days

0

32

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

MTD 710-3008

Hex Bolt 5/16-18 Gr. 5

$4.49

$

In Stock, Qty 20+

0

34

MTD 786-0129

Cable Guide Bracket
(Superseded to 786-0129-0637)

Variations

MTD 786-0129-0637

BRACKET-CABLE GUIDE - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

35

MTD 710-0604A

Hex Wash Screw 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

36

MTD 710-0602

Hex Wash. Hd. TT-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

37

MTD 738-0934

Shdl. Bolt 5/16-18
(Superseded to 738-0934A)

$7.99

$

Usually ships in 3-6 days

0

38

MTD 786-0138A

Frame (R.H.)

Variations

MTD 786-0138A-0480

FRAME-RH - BRILLIANT GREEN (0480)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-0498

FRAME-RH - OLD CUB YELLOW (0498)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-0637

FRAME-RH - POWDER BLACK (0637)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-0662

FRAME-RH - OYSTER GRAY (0662)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-0665

FRAME-RH - YARDMAN GREEN (0665)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-0687

FRAME-RH - PINE GREEN (0687)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-0691

FRAME-RH - BLACK JACK (0691)

$95.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-0709

FRAME-RH - MASTERCRAFT GREEN (0709)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-0716

FRAME (RH) - CUB YELLOW-99 (0716)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-4021

FRAME-RH - CUB YELLOW 2 (4021)

$95.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-0638

FRAME-RH - MTD/TROY-BILT RED (0638)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-0721

- SEARS RED (0721)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-4033

FRAME-RH - FLINT MICA (4033)

$89.99

$

Usually ships in 3-6 days

0

MTD 786-0138A-4044

FRAME-RH - CRAFTSMAN RED (4044)

$102.99

$

Usually ships in 3-6 days

0

$95.99

$

Usually ships in 3-6 days

0

39

MTD 786-0139A

Frame (L.H.)

Variations

MTD 786-0139A-0480

Frame, LH - BRILLIANT GREEN (0480)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-0498

Frame, LH - OLD CUB YELLOW (0498)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-0637

Frame, LH - POWDER BLACK (0637)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-0662

Frame, LH - OYSTER GRAY (0662)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-0665

Frame, LH - YARDMAN GREEN (0665)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-0687

Frame, LH - PINE GREEN (0687)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-0691

FRAME-LH - BLACK JACK (0691)

$94.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-0709

Frame, LH - MASTERCRAFT GREEN (0709)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-0716

Frame, LH - CUB YELLOW-99 (0716)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-4021

FRAME-LH - CUB YELLOW 2 (4021)

$94.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-0638

FRAME-LH - MTD/TROY-BILT RED (0638)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-0721

- SEARS RED (0721)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-4033

FRAME-LH - FLINT MICA (4033)

$82.99

$

Usually ships in 3-6 days

0

MTD 786-0139A-4044

FRAME-LH - CRAFTSMAN RED (4044)

$101.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

40

MTD 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

41

MTD 712-0240

Jam Nut 7/16-20 Gr. 2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

42

MTD 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

43

MTD 712-0429

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

44

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

45

MTD 714-0149B

Cotter Pin

$4.49

$

In Stock, Qty 18

0

46

MTD 686-0081A

Wheel Hanger Brkt. Assy
(Superseded to 686-0081A-0637)

Variations

MTD 686-0081A-0637

Wheel Bracket Assembly, Black - POWDER BLACK (0637)

$88.99

$

In Stock, only 1 left!

0

$88.99

$

In Stock, only 1 left!

0

47

MTD 734-1566

Wheel Ass'y 8" x 1.75"
(Superseded to 734-1268)

$71.99

$

Usually ships in 3-6 days

0

48

MTD 738-0929

Shoulder Screw .496 x 1.445

$7.99

$

In Stock, only 2 left!

0

49

MTD 750-0890

Spacer

$6.99

$

In Stock, Qty 6

0

50

MTD 686-0091

Chain Case Assembly Complete
(Superseded to 986-0091C)

$517.99

$

Usually ships in 3-6 days

0

51

MTD 686-0090

Chain Case RH

$

$

Currently unavailable

52

MTD 721-0215

Gasket

$

$

Currently unavailable

53

MTD 721-0378

Shaft Seal 1.0
(Superseded to 921-0378)

$18.99

$

In Stock, only 2 left!

0

54

MTD 686-0010

Shaft Assembly

$

$

Currently unavailable

55

MTD 736-0406

Flat Washer .442 ID x 1.38 OD
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

56

MTD 738-0843

Jack Shaft

$

$

Currently unavailable

57

MTD 713-0328

Chain #50 x 46 Links
(Superseded to 913-0328)

$102.99

$

Usually ships in 3-6 days

0

58

MTD 613-0001A

Sprocket Assembly

$

$

Currently unavailable

59

MTD 713-0312

Chain #420 x 46 Links
(Superseded to 913-0312)

$46.99

$

Usually ships in 3-6 days

0

60

MTD 613-0003A

Input Shaft Assembly

$

$

Currently unavailable

61

MTD 750-0896

Input Shaft Spacer

$

$

Currently unavailable

62

MTD 686-0089

Chain Case LH

$

$

Currently unavailable
