21A-392B401 - Yard-Man Tiller (2001) General Assembly Parts Diagram

Tiller

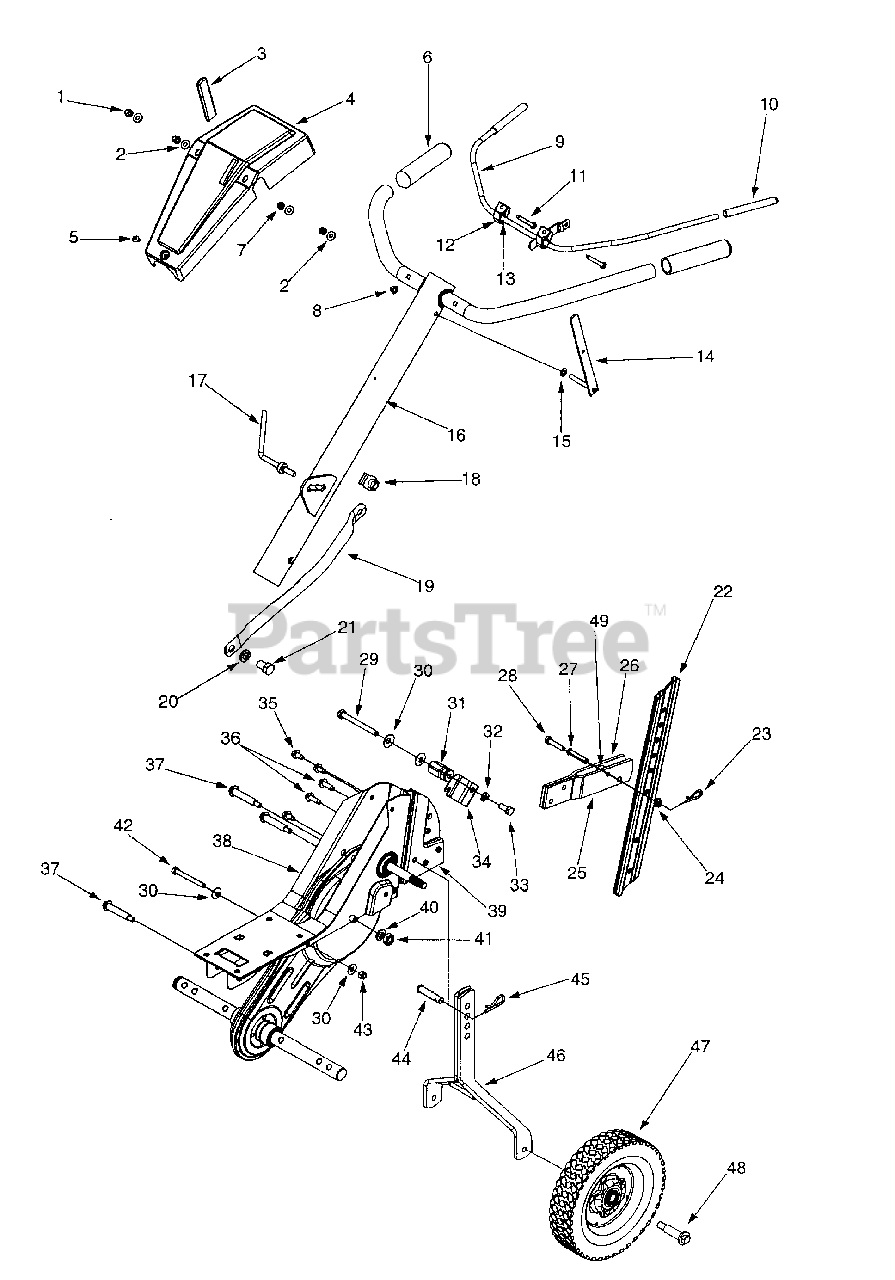

General Assembly Parts Diagram

  • Title

1

MTD 712-0442

Acorn Lock Nut 1/4-20

$6.99

$

In Stock, only 4 left!

0

2

MTD 736-3020

Flat Washer .271" I.D. x .630" O.D.

$6.99

$

In Stock, Qty 9

0

3

MTD 720-0270A

Reverse Handle Grip

$8.49

$

Usually ships in 3-6 days

0

4

MTD 731-1600

Handle Cover

$55.99

$

Usually ships in 3-6 days

0

5

MTD 710-0779A

Truss Mach. Scr. #10 x 1/2" Lg.

$4.49

$

In Stock, Qty 12

0

6

MTD 720-0274

Grip-Handle

$11.99

$

In Stock, Qty 11

0

7

MTD 712-0287

Hex Nut 1/4-20 Gr.2
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

8

MTD 726-0135

Cap Speed Nut

$6.99

$

In Stock, only 1 left!

0

9

MTD 686-0083

Clutch Handle Assembly
(Superseded to 686-0083-0637)

Variations

MTD 686-0083-0637

Clutch Handle Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

10

MTD 720-0269

Grip-Clutch

$4.99

$

In Stock, only 1 left!

0

11

MTD 710-0641

Hex Bolt 1/4-20 x 2.25" Lg. Gr.5

$4.49

$

In Stock, only 2 left!

0

12

MTD 731-1645A

Clutch Handle Holder
(Superseded to 931-1645B)

$16.99

$

In Stock, only 2 left!

0

13

MTD 736-0140

Flat Washer.385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

14

MTD 686-0014A

Reverse Handle Ass'y
(Superseded to 686-0014C-0637)

Variations

MTD 686-0014A-0637

HANDLE ASM:REVERSE - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

15

MTD 736-0264

Flat Washer.344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

16

MTD 649-0039

Handle Assembly Comp.

Variations

MTD 649-0039-0480

No Longer Available HANDLE ASM - BRILLIANT GREEN (0480)

$

$

Not available

MTD 649-0039-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 649-0039-0606

No Longer Available HANDLE ASM - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 649-0039-0638

HANDLE ASM. - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 649-0039-0650

No Longer Available HANDLE ASM - RED METALLIC (0650)

$

$

Not available

MTD 649-0039-0662

No Longer Available HANDLE ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 649-0039-0716

HANDLE ASM. - CUB YELLOW-99 (0716)

$

$

Not available

$

$

17

MTD 647-0042

Adjustment Crank

$

$

Not available

18

MTD 726-0211

U Nut 5/16-18

$4.49

$

In Stock, only 1 left!

0

19

MTD 749-1101

Handle Brace

Variations

MTD 749-1101-0637

No Longer Available BRACE HAND - POWDER BLACK (0637)

$

$

Not available

MTD 749-1101-0480

No Longer Available BRACE HAND - BRILLIANT GREEN (0480)

$

$

Not available

MTD 749-1101-0498

No Longer Available BRACE HAND - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-1101-0606

No Longer Available BRACE HAND - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 749-1101-0638

No Longer Available BRACE HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-1101-0650

No Longer Available BRACE HAND - RED METALLIC (0650)

$

$

Not available

MTD 749-1101-0662

No Longer Available BRACE HAND - OYSTER GRAY (0662)

$

$

Not available

MTD 749-1101-0716

No Longer Available BRACE HAND - CUB YELLOW-99 (0716)

$

$

Not available

$

$

20

MTD 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

21

MTD 710-3194

Hex Bolt 1/2-20 Gr. 5

$6.99

$

In Stock, only 1 left!

0

22

MTD 786-0005

Depth Bar
(Superseded to 786-0005-0637)

Variations

MTD 786-0005-0637

Depth Bar, Powder Black - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

23

MTD 714-0149B

Cotter Pin

$4.49

$

In Stock, Qty 18

0

24

MTD 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

MTD 786-0003

Tail Piece Bracket (L.H.)
(Superseded to 786-0003-0637)

Variations

MTD 786-0003-0637

Tailpiece Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

26

MTD 786-0004

Tail Piece Bracket (R.H.)
(Superseded to 786-0004-0637)

Variations

MTD 786-0004-0637

Tailpiece Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

27

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

28

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

30

MTD 736-0242

Wash. Bell. .340" I.D. x .872" O.D.

$4.49

$

In Stock, Qty 20+

0

31

MTD 711-1036

Spec. Hex Nut
(Superseded to 711-1036A)

$17.99

$

Usually ships in 3-6 days

0

32

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

MTD 710-3008

Hex Bolt 5/16-18 Gr. 5

$4.49

$

In Stock, Qty 20+

0

34

MTD 786-0129

Cable Guide Bracket
(Superseded to 786-0129-0637)

Variations

MTD 786-0129-0637

BRACKET-CABLE GUIDE - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

35

MTD 710-0604

Hex Wash Screw 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

36

MTD 710-0602

Hex Wash. Hd. TT Tap Scr.

$4.49

$

In Stock, Qty 20+

0

37

MTD 738-0934

Shdl. Bolt 5/16-18
(Superseded to 738-0934A)

$7.99

$

Usually ships in 3-6 days

0

38

MTD 786-0138

Frame (R.H.)

Variations

MTD 786-0138-0498

FRAME-RH - OLD CUB YELLOW (0498)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138-0637

FRAME-RH - POWDER BLACK (0637)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138-0687

FRAME-RH - PINE GREEN (0687)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138-0716

FRAME (RH) - CUB YELLOW-99 (0716)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138-0638

FRAME-RH - MTD/TROY-BILT RED (0638)

$102.99

$

Usually ships in 3-6 days

0

MTD 786-0138-0480

No Longer Available FRAME-RH - BRILLIANT GREEN (0480)

$

$

Not available

MTD 786-0138-0662

FRAME-RH - OYSTER GRAY (0662)

$

$

Not available

MTD 786-0138-0665

FRAME-RH - YARDMAN GREEN (0665)

$

$

Not available

$78.99

$

Usually ships in 3-6 days

0

39

MTD 786-0139

Frame (L.H.)
(Superseded to 786-0139A)

Variations

MTD 786-0139-0480

Frame, LH - BRILLIANT GREEN (0480)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0498

Frame, LH - OLD CUB YELLOW (0498)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0637

Frame, LH - POWDER BLACK (0637)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0662

Frame, LH - OYSTER GRAY (0662)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0665

Frame, LH - YARDMAN GREEN (0665)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0687

Frame, LH - PINE GREEN (0687)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0716

Frame, LH - CUB YELLOW-99 (0716)

$101.99

$

Usually ships in 3-6 days

0

MTD 786-0139-0638

FRAME-LH - MTD/TROY-BILT RED (0638)

$101.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

40

MTD 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

41

MTD 712-0240

Jam Nut 7/16-20 Gr. 2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

42

MTD 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

43

MTD 712-0429

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

44

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

45

MTD 714-01498

Cotter Pin

$

$

Currently unavailable

46

MTD 686-0081A

Wheel Hanger Brkt. Assy
(Superseded to 686-0081A-0637)

Variations

MTD 686-0081A-0637

Wheel Bracket Assembly, Black - POWDER BLACK (0637)

$88.99

$

In Stock, only 1 left!

0

$88.99

$

In Stock, only 1 left!

0

47

MTD 734-1566

Wheel Ass'y 8" x 1.75"
(Superseded to 734-1268)

$71.99

$

Usually ships in 3-6 days

0

48

MTD 738-0929

Shoulder Screw .496 x 1.445

$7.99

$

In Stock, only 2 left!

0

49

MTD 750-0890

Spacer

$6.99

$

In Stock, Qty 6

0
