21A-392B004 - MTD Gold Tiller (2009) Handle Assembly Parts Diagram

Gold Tiller

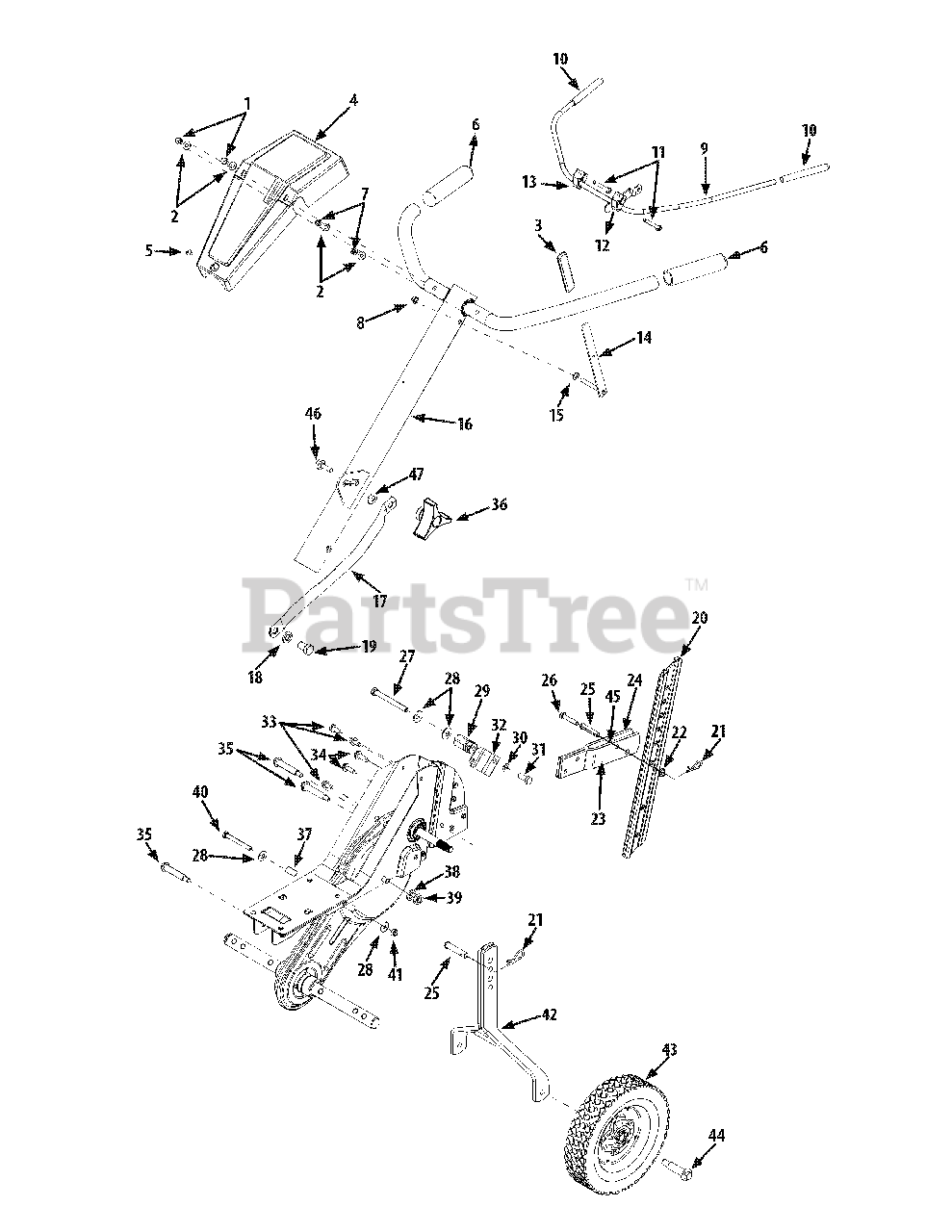

Handle Assembly Parts Diagram

  • Title

1

MTD 912-0442

Acorn Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

2

MTD 936-3020

Flat Washer, .271" x.630"
(Superseded to 736-3020)

$

$

Not available

3

MTD 720-0270A

Reverse Handle Grip

$8.49

$

Usually ships in 3-6 days

0

4

MTD 731-1600

Handle Cover w/o throttle

$55.99

$

Usually ships in 3-6 days

0

5

MTD 710-0779A

Truss Machine Screw, #10 x 1/2"

$4.49

$

In Stock, Qty 12

0

6

MTD 720-0274

Handle Grip

$11.99

$

In Stock, Qty 11

0

7

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

8

MTD 726-0135

Cap Speed Nut

$6.99

$

In Stock, only 1 left!

0

9

MTD 686-0083-0637

Clutch Handle Assembly

$50.99

$

Usually ships in 3-6 days

0

10

MTD 720-0269

Clutch Grip

$4.99

$

In Stock, only 1 left!

0

11

MTD 710-0641

Hex Bolt, 1/4-20 x 2.25"

$4.49

$

In Stock, only 2 left!

0

12

MTD 931-1645A

Clutch Handle Holder
(Superseded to 931-1645B)

$16.99

$

In Stock, only 2 left!

0

13

MTD 936-0140

Flat Washer, .385" x .62"
(Superseded to 736-0140)

$

$

Not available

14

MTD 686-0014C-0637

Reverse Handle Assembly

$21.99

$

Usually ships in 3-6 days

0

15

MTD 936-0264

Flat Washer, .344" x .62"

$6.99

$

In Stock, only 3 left!

0

16

MTD 649-04040-0691

Handle Assembly Complete

$113.99

$

Usually ships in 3-6 days

0

17

MTD 749-1401-0691

Handle Brace
(Superseded to 749-1401A-0691)

$50.99

$

Usually ships in 3-6 days

0

18

MTD 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

19

MTD 710-3194

Hex Bolt, 1/2-20

$6.99

$

In Stock, only 1 left!

0

20

MTD 786-0005-0637

Depth Bar

$39.99

$

In Stock, only 1 left!

0

21

MTD 914-0149B

Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

22

MTD 712-04063

Hex Flange L-Nut, 5/16-18

$3.99

$

In Stock, Qty 18

0

23

MTD 786-0003-0637

Tail Piece Bracket, Left

$23.99

$

Usually ships in 3-6 days

0

24

MTD 786-0004-0637

Tail Piece Bracket, Right

$35.99

$

Usually ships in 3-6 days

0

25

MTD 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

26

MTD 710-0805

Hex Bolt, 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0189

Hex Bolt, 5/16-18 x 3"

$6.49

$

In Stock, Qty 5

0

28

MTD 736-0242

Bell Washer, .340" x .872"

$4.49

$

In Stock, Qty 20+

0

29

MTD 711-1036A

Hex Nut

$17.99

$

Usually ships in 3-6 days

0

30

MTD 936-0119

L-Washer, 5/16"

$4.99

$

In Stock, Qty 20+

0

31

MTD 710-3008

Hex Bolt, 5/16-18

$4.49

$

In Stock, Qty 20+

0

32

MTD 786-0129-0637

Cable Guide Bracket

$27.99

$

Usually ships in 3-6 days

0

33

MTD 710-0604A

Hex Washer Screw, 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0602

Hex Washer TT-Tap Screw

$4.49

$

In Stock, Qty 20+

0

35

MTD 738-0934

Shoulder Bolt, 5/16-18
(Superseded to 738-0934A)

$7.99

$

Usually ships in 3-6 days

0

36

MTD 720-0195

Hand Knob

$15.99

$

Usually ships in 3-6 days

0

37

MTD 750-0470

Spacer

$6.99

$

Usually ships in 3-6 days

0

38

MTD 936-0171

Lock Washer,7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

39

MTD 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0176

Hex Bolt, 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

41

MTD 912-0429

Nylon Hex Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

42

MTD 686-0081A-0637

Wheel Hanger Bracket Assembly

$88.99

$

In Stock, only 1 left!

0

43

MTD 734-1268

Wheel, 8 x 1.75

$71.99

$

Usually ships in 3-6 days

0

44

MTD 738-0929

Shoulder Screw, .496 x 1.445

$7.99

$

In Stock, only 2 left!

0

45

MTD 750-0890

Spacer

$6.99

$

In Stock, Qty 6

0

46

MTD 710-1236

Carriage Bolt, 5/16-18 x 1

$6.99

$

In Stock, only 4 left!

0

47

MTD 736-0242

Bell Washer, .34"

$4.49

$

In Stock, Qty 20+

0
