21A-34M8711 - Troy-Bilt Colt Front-Tine Tiller (2013) Tine & Drive Assembly Parts Diagram

Colt Front-Tine Tiller

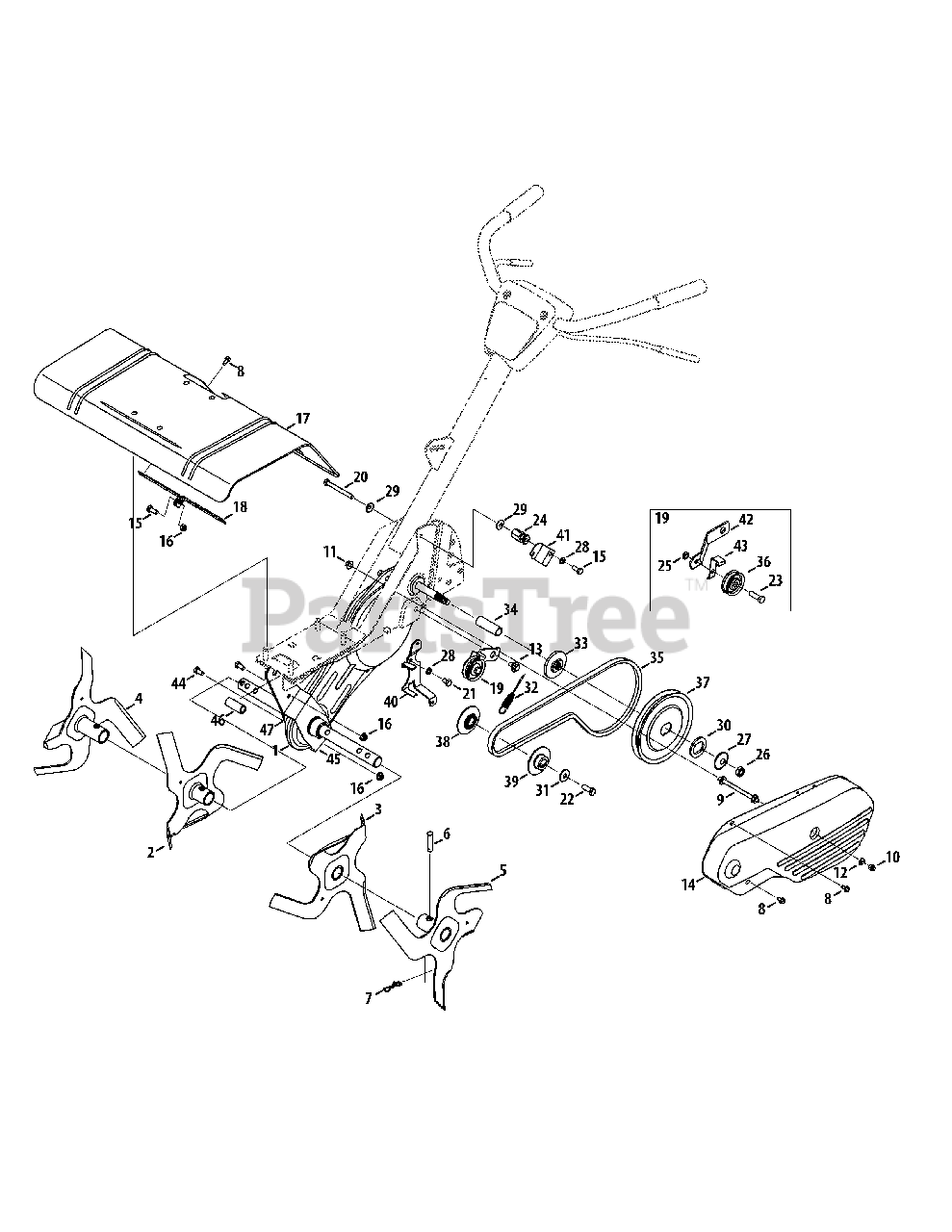

Tine & Drive Assembly Parts Diagram

  • Title

1

Troy-Bilt 986-0103

Chain Case Assembly
(Superseded to 986-0091C)

$517.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 642-04104-0638

Inner Tine Assembly, RH
(Superseded to 642-04104-5083)

$58.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 642-04103-0638

Inner Tine Assembly, LH
(Superseded to 642-04103-5083)

$58.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 642-04106-0638

Outer Tine Assembly, RH
(Superseded to 642-04106-5083)

$58.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 642-04105-0638

Outer Tine Assembly, LH
(Superseded to 642-04105-5083)

$58.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 911-0415

Clevis Pin, 375 x 175
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 19

0

7

Troy-Bilt 714-04043

Bow Tie Cotter Pin

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0599

Screw, 1/4-20 x 0500

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 711-0919

Bolt, Belt Cover

$19.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 712-0392

Nut, 1/4-28, Lock

$6.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 712-3004A

Nut, 5/16-18, Flange Lock

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 936-3020

Flat Washer, 271 x 630 x 065
(Superseded to 736-3020)

$

$

Not available

13

Troy-Bilt 738-0930

Shoulder Screw, 560 x 165 5/16-18

$6.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 786-0056-0638

Belt Cover

$92.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 710-3008

Hex Head Screw, 5/16-18 x 75

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04063

Nut, 5/16-18, Flange Lock

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 786-0043A-0638

Tine Shield

$146.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 786-0053-0637

Bracket, Tine Shield

$10.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 686-0088

Idler Bracket Assembly

$143.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 710-0189

Hex Head Screw, 5/16-18 x 300

$6.49

$

In Stock, Qty 5

0

21

Troy-Bilt 710-0237

Hex Head Screw, 5/16-24 x 625

$4.49

$

In Stock, only 1 left!

0

22

Troy-Bilt 710-1039

Hex Head Screw, 3/8-24 x 100

$4.49

$

In Stock, Qty 5

0

23

Troy-Bilt 710-3005

Hex Head Screw, 3/8-16 x 125

$3.99

$

In Stock, Qty 12

0

24

Troy-Bilt 711-1036A

Hex Nut, 5/16-18

$17.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 712-0266A

Jamlock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

26

Troy-Bilt 712-3029

Nut, 1/2-20, Jam

$6.99

$

In Stock, Qty 6

0

27

Troy-Bilt 736-0112

Washer, 531 x 162 x 045

$9.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 736-0242

Bell Washer, 340 x 872 x 060

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 736-0312

Flat Washer, 126 x 187 x 150

$3.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 936-0452

Bell Washer, 396 x 1140 x 095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 7

0

32

Troy-Bilt 946-0918

Forward Clutch Cable

$30.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 948-0350

Pulley Adaptor

$21.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 950-0892

Spacer, 64 ID x 24

$11.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 954-0428

Belt, 4L x 419 LG

$34.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 756-0313

Pulley 188 OD

$26.99

$

In Stock, Qty 6

0

37

Troy-Bilt 756-0585

Pulley 600 OD

$41.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 756-0971

Inner Engine Pulley

$14.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 756-0972

Outer Engine Pulley

$16.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 786-0039B-0637

Belt Keeper Bracket

$47.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 786-0129-0637

Cable Guide Bracket

$27.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 786-0144-0637

Idler Bracket

$13.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 786-0149

Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-3025

Hex Head Screw, 5/16-18 x 625

$3.99

$

In Stock, Qty 8

0

45

Troy-Bilt 786-0161-0637

Bracket, Chain Case, LH

$33.99

$

Usually ships in 3-6 days

0

46

MTD 750-3146

Spacer, 505 ID x 75 OD x 175

$

$

Not available

47

Troy-Bilt 786-0160-0637
