21A-34M5011 - Troy-Bilt Colt Front-Tine Tiller (2012) Handle Assembly 21A-34M Parts Diagram

Colt Front-Tine Tiller

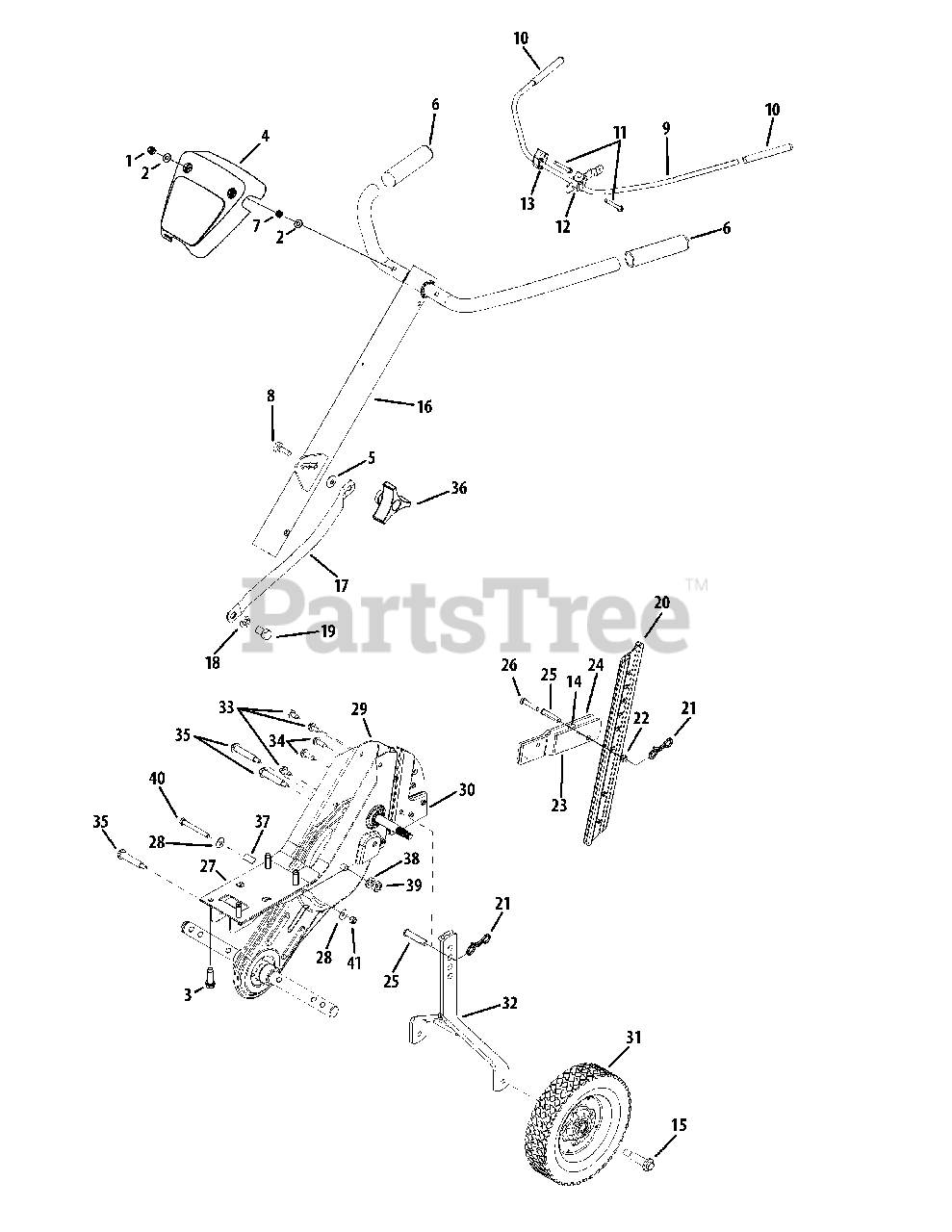

Handle Assembly 21A-34M Parts Diagram

  • Title

1

Troy-Bilt 912-0442

Acorn Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

2

Troy-Bilt 936-3020

Flat Washer, .271" x.630"
(Superseded to 736-3020)

$

$

Not available

3

Troy-Bilt 710-0502A

Screw, 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 731-06253A

Handle Cover
(Superseded to 731-06253B)

$23.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 736-0242

Bell Washer, .34"

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 720-0274

Handle Grip

$11.99

$

In Stock, Qty 11

0

7

Troy-Bilt 912-0298

Jam Nut, 1/4-20

$6.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-1236

Carriage Bolt, 5/16-18 x 1

$6.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 686-0083-0637

Clutch Handle Assembly

$50.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 720-0269

Clutch Grip

$4.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 710-0641

Hex Bolt, 1/4-20 x 2.25"

$4.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 931-1645B

Clutch Handle Holder

$16.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 936-0140

Flat Washer, .385" x .62"
(Superseded to 736-0140)

$

$

Not available

14

Troy-Bilt 750-0890

Spacer

$6.99

$

In Stock, Qty 6

0

15

Troy-Bilt 738-0929

Shoulder Screw, .496 x 1.445

$7.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 649-04040-0638

Handle Assembly Complete

$113.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 749-1401A-0638

Handle Brace
(Superseded to 749-1401A)

$41.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

19

Troy-Bilt 710-3194

Hex Bolt, 1/2-20

$6.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 786-0005-0637

Depth Bar

$39.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 714-04043

Cotter Pin, Bow Tie

$4.99

$

In Stock, Qty 18

0

22

Troy-Bilt 712-04063

Hex Flange L-Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 786-0003-0637

Tail Piece Bracket, Left

$23.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 786-0004-0637

Tail Piece Bracket, Right

$35.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 710-0805

Hex Bolt, 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 786-0145A

Engine Plate

Variations

Troy-Bilt 786-0145A-4021

PLATE-ENGINE MTG - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-0480

PLATE-ENGINE MOUNT - BRILLIANT GREEN (0480)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-0498

PLATE-ENGINE MOUNT - OLD CUB YELLOW (0498)

$22.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-0606

PLATE-ENGINE MOUNT - MAJESTIC ORANGE (0606)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-0637

PLATE-ENGINE MOUNT - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-0638

PLATE-ENGINE MOUNT - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-0662

PLATE-ENGINE MOUNT - OYSTER GRAY (0662)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-0665

PLATE-ENGINE MOUNT - YARDMAN GREEN (0665)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-0691

PLATE-ENGINE MOUNT - BLACK JACK (0691)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-0716

PLATE-ENGINE MOUNT - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-4033

PLATE-ENGINE MTG - FLINT MICA (4033)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 786-0145A-4044

PLATE-ENGINE MTG - CRAFTSMAN RED (4044)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 736-0242

Bell Washer, .340" x .872"

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 786-0138A-0638

Frame, RH

$102.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 786-0139A-0638

Frame, LH

$101.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 734-04538

Wheel, 8 x 1.75

$42.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 686-0081A-0637

Wheel Hanger Bracket Assembly

$88.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 710-0604A

Hex Washer Screw, 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 710-0602

Hex Washer TT-Tap Screw

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 738-0934

Shoulder Bolt, 5/16-18
(Superseded to 738-0934A)

$7.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 720-0195

Hand Knob

$15.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 750-0470

Spacer

$6.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

39

Troy-Bilt 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 710-0176

Hex Bolt, 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

41

Troy-Bilt 912-0429

Nylon Hex Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0
