21A-332A700 - Yard Machines Tiller (2005) Chain Case & Tines Parts Diagram

Tiller

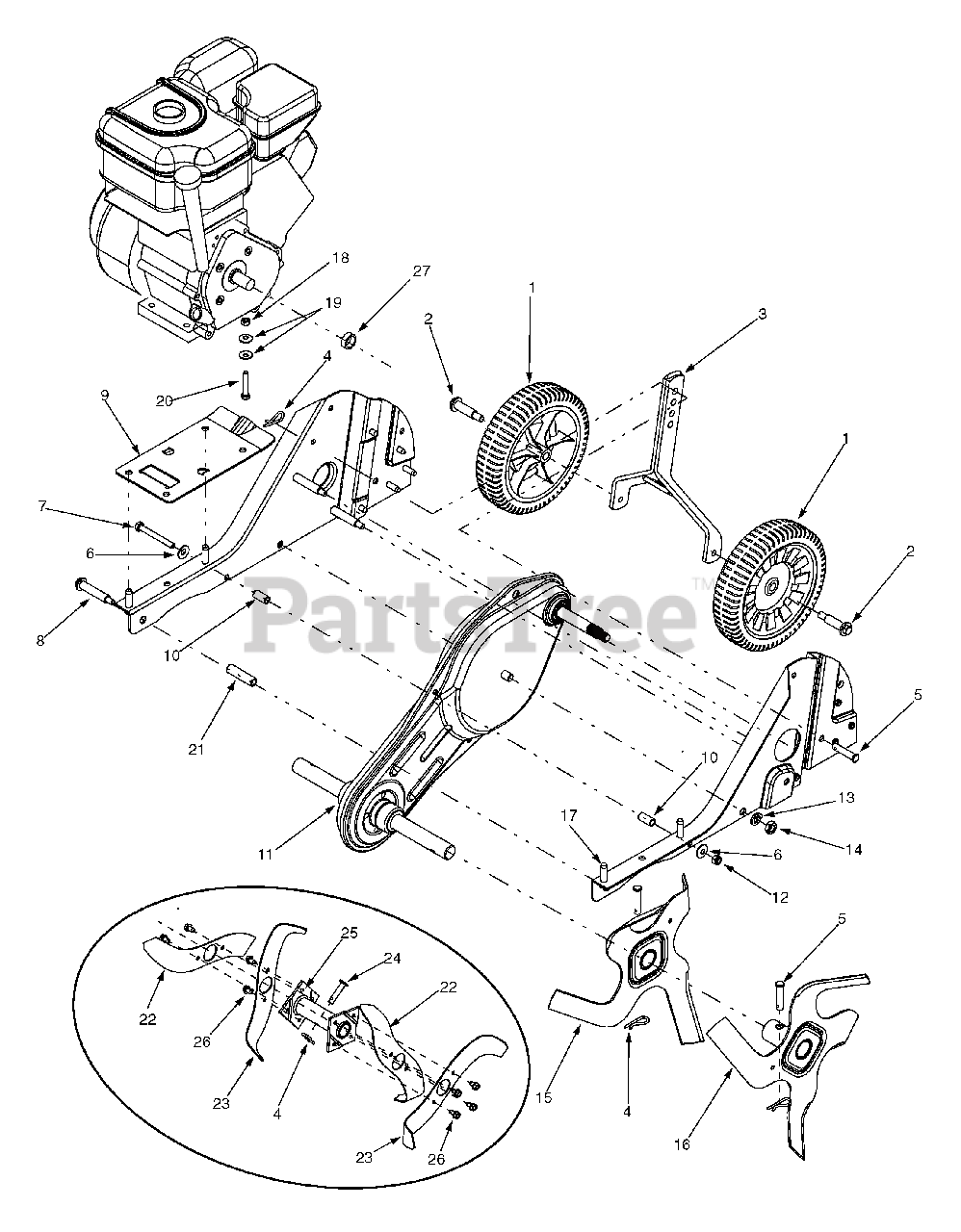

Chain Case & Tines Parts Diagram

  • Title

1

MTD 734-1988

Wheel 8 x 1.75

$20.99

$

In Stock, only 4 left!

0

MTD 734-1781

Wheel 8 x 1.8

Note: Series 330 Only

$32.99

$

In Stock, Qty 7

0

2

MTD 738-0929

Shoulder Screw

$7.99

$

In Stock, only 2 left!

0

3

MTD 686-0081A

Wheel Bracket Assembly
(Superseded to 686-0081A-0637)

Variations

MTD 686-0081A-0637

Wheel Bracket Assembly, Black - POWDER BLACK (0637)

$88.99

$

In Stock, only 1 left!

0

$88.99

$

In Stock, only 1 left!

0

4

MTD 714-0149B

Cotter Pin

$4.49

$

In Stock, Qty 18

0

5

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

6

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0189

Hex Cap Screw 5/16-18 x 3.0

Note: Series 300 Only

$6.49

$

In Stock, Qty 5

0

MTD 710-0176

Hex Cap Screw 5/16-18 x 2.75

Note: Series 330 Only

$4.49

$

In Stock, only 2 left!

0

8

MTD 738-0934

Shoulder Screw
(Superseded to 738-0934A)

$7.99

$

Usually ships in 3-6 days

0

9

MTD 786-0145A

Engine Mounting Plate

Variations

MTD 786-0145A-4021

PLATE-ENGINE MTG - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-0480

PLATE-ENGINE MOUNT - BRILLIANT GREEN (0480)

$17.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-0498

PLATE-ENGINE MOUNT - OLD CUB YELLOW (0498)

$22.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-0606

PLATE-ENGINE MOUNT - MAJESTIC ORANGE (0606)

$17.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-0637

PLATE-ENGINE MOUNT - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-0638

PLATE-ENGINE MOUNT - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-0662

PLATE-ENGINE MOUNT - OYSTER GRAY (0662)

$17.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-0665

PLATE-ENGINE MOUNT - YARDMAN GREEN (0665)

$17.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-0691

PLATE-ENGINE MOUNT - BLACK JACK (0691)

$20.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-0716

PLATE-ENGINE MOUNT - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-0721

- SEARS RED (0721)

$22.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-4033

PLATE-ENGINE MTG - FLINT MICA (4033)

$17.99

$

Usually ships in 3-6 days

0

MTD 786-0145A-4044

PLATE-ENGINE MTG - CRAFTSMAN RED (4044)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

10

MTD 750-0470

Spacer.47 OD x.96Lg

$6.99

$

Usually ships in 3-6 days

0

11

MTD 686-0189

Chain Case Assembly

Note: Series 300 Only

$

$

Not available

MTD 686-0091

Chain Case Assembly
(Superseded to 986-0091C)

Note: Series 330 Only

$517.99

$

Usually ships in 3-6 days

0

12

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

14

MTD 712-0240

Jam Nut 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

15

MTD 642-0002

Inner Tine Assembly - RH 12"
(Superseded to 642-0002-0637)

Note: Series 330 Only

Variations

MTD 642-0002-0637

Tine Assembly, Inner RH - POWDER BLACK (0637)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

MTD 642-0003

Inner Tine Assembly - LH 12"
(Superseded to 642-0003-0637)

Note: Series 330 Only

Variations

MTD 642-0003-0637

Tine Assembly, Inner LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

16

MTD 642-0004

Outer Tine Assembly -RH 12"
(Superseded to 642-0004-0637)

Note: Series 330 Only

Variations

MTD 642-0004-0637

Tine Assembly, Outer RH - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

MTD 642-0005

Outer Tine Assembly - LH 12"
(Superseded to 642-0005-0637)

Note: Series 330 Only

Variations

MTD 642-0005-0637

Tine Assembly, Outer LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

$60.99

$

In Stock, only 2 left!

0

17

MTD 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

18

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0242

Bell Washer.340 ID x.872 OD

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-3180

Hex Cap Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

21

MTD 750-0273

Spacer, .51 x .69 x 1.97

Note: Series 300 Only

$

$

Not available

22

MTD 04922

Tine 9.5" RH

Note: Series 300 Only

Variations

MTD 04922-0637

Tine Blade R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 04923

Tine 9.5" LH
(Superseded to 04923-0637)

Note: Series 300 Only

Variations

MTD 04923-0637

Tine, LH Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 711-0702

Clevis Pin

Note: Series 300 Only

$

$

Not available

25

MTD 04918

Tine Adapter
(Superseded to 04918-0637)

Note: Series 300 Only

Variations

MTD 04918-0637

ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

Note: Series 300 Only

$4.49

$

In Stock, Qty 20+

0

27

MTD 750-0456

Spacer, .790 x .347

Note: Series 300 Only

$4.49

$

In Stock, Qty 20+

0
