21A-250H765 - Bolens Tiller (2006) General Assembly Parts Diagram

Tiller

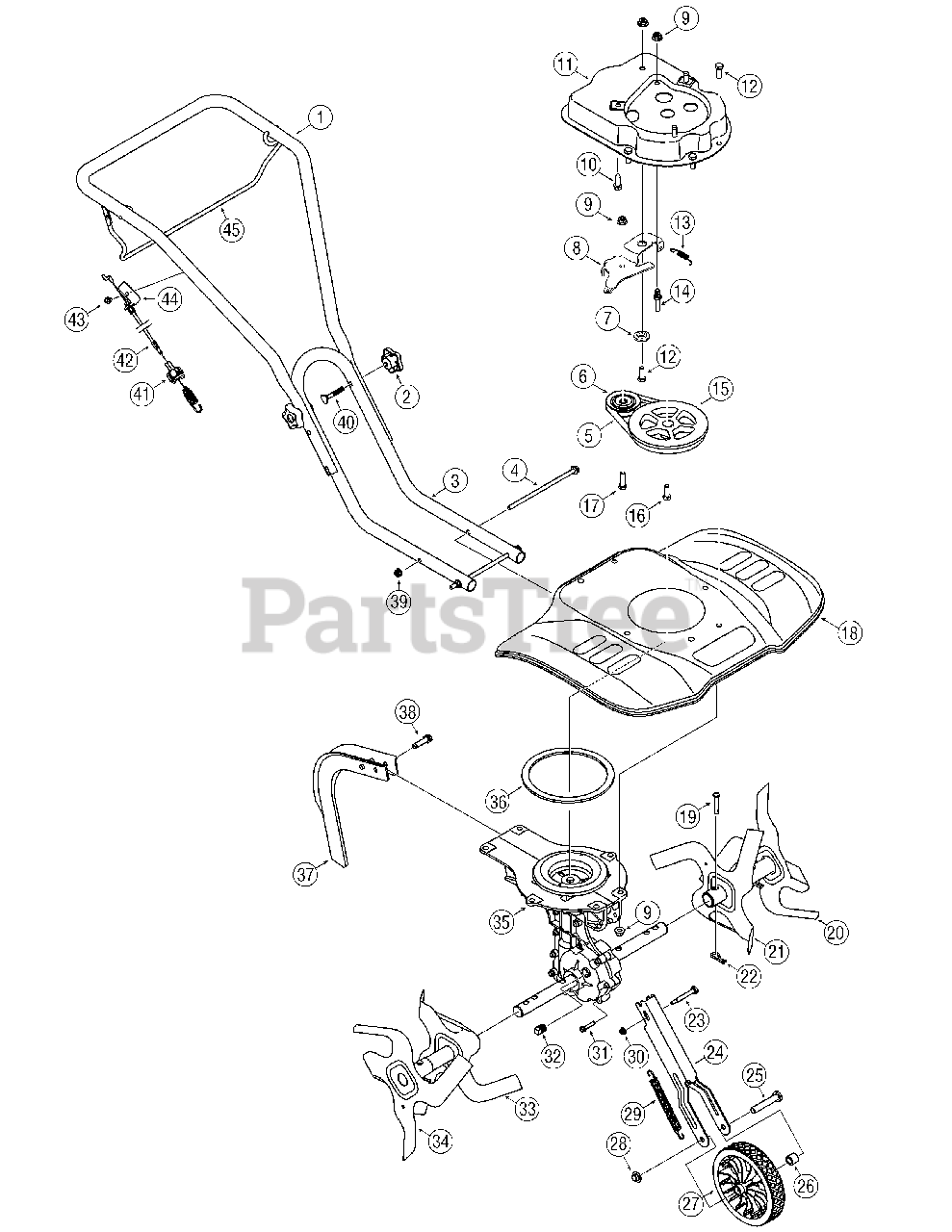

General Assembly Parts Diagram

  • Title

1

MTD 749-04282

Upper Handle

Variations

MTD 749-04282-0637

Upper Loop Handle, Black - POWDER BLACK (0637)

$127.99

$

Usually ships in 3-6 days

0

MTD 749-04282-0638

HANDLE:UPPER:LOOP - MTD/TROY-BILT RED (0638)

$127.99

$

Usually ships in 3-6 days

0

MTD 749-04282-0691

HANDLE:UPPER:LOOP - BLACK JACK (0691)

$127.99

$

Usually ships in 3-6 days

0

MTD 749-04282-0709

HANDLE:UPPER:LOOP - MASTERCRAFT GREEN (0709)

$127.99

$

Usually ships in 3-6 days

0

MTD 749-04282-4044

HANDLE:UPPER:LOOP - CRAFTSMAN RED (4044)

$127.99

$

Usually ships in 3-6 days

0

$110.99

$

Usually ships in 3-6 days

0

2

MTD 720-04072

Star Handle Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

3

MTD 749-04281

Lower Handle

Variations

MTD 749-04281-0638

HANDLE:LOWER - MTD/TROY-BILT RED (0638)

$75.99

$

Usually ships in 3-6 days

0

MTD 749-04281-0637

HANDLE:LOWER - POWDER BLACK (0637)

$75.99

$

Usually ships in 3-6 days

0

MTD 749-04281-0691

HANDLE:LOWER - BLACK JACK (0691)

$75.99

$

Usually ships in 3-6 days

0

MTD 749-04281-0709

HANDLE:LOWER - MASTERCRAFT GREEN (0709)

$75.99

$

Usually ships in 3-6 days

0

MTD 749-04281-4044

HANDLE:LOWER - CRAFTSMAN RED (4044)

$75.99

$

Usually ships in 3-6 days

0

$75.99

$

Usually ships in 3-6 days

0

4

MTD 710-04398

Flange Screw: 5/16-18:7.5:GR5

$12.99

$

Usually ships in 3-6 days

0

5

MTD 754-04061

Belt

$17.99

$

Usually ships in 3-6 days

0

6

MTD 756-04163

Idler Pulley

$44.99

$

Usually ships in 3-6 days

0

7

MTD 748-04125

Shoulder Spacer

$3.99

$

Usually ships in 3-6 days

0

8

MTD 786-04309

Idler Bracket
(Superseded to 686-04080)

$35.99

$

Usually ships in 3-6 days

0

9

MTD 712-04065

Flange Lock Nut: 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0654A

TT Screw: 3/8-16:1.00

$4.49

$

In Stock, Qty 20+

0

11

MTD 786-04303

Frame

Variations

MTD 786-04303-0638

FRAME - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

MTD 786-04303-0691

FRAME - BLACK JACK (0691)

$58.99

$

Usually ships in 3-6 days

0

MTD 786-04303-0709

FRAME - MASTERCRAFT GREEN (0709)

$58.99

$

Usually ships in 3-6 days

0

MTD 786-04303-4044

FRAME - CRAFTSMAN RED (4044)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

12

MTD 710-0514

HH Cap Screw: 3/8-16:1.00

$4.49

$

In Stock, Qty 20+

0

13

MTD 732-0418

Extension Spring

$10.99

$

In Stock, only 3 left!

0

14

MTD 738-04139

Stud: 33 x 1.5: 3/8-16

$3.49

$

Usually ships in 3-6 days

0

15

MTD 756-04217

Flywheel Pulley

$85.99

$

Usually ships in 3-6 days

0

16

MTD 710-0591

HH Cap Screw: 3/8-24:1.00

$4.49

$

Usually ships in 3-6 days

0

17

MTD 710-3005

HH Cap Screw: 3/8-16:1.25

$3.99

$

In Stock, Qty 20+

0

18

MTD 786-04256

Tine Shield 61 cm

Variations

MTD 786-04256-0638

SHIELD-TINE 24" - MTD/TROY-BILT RED (0638)

$137.99

$

Usually ships in 3-6 days

0

MTD 786-04256-0691

SHIELD-TINE 24" - BLACK JACK (0691)

$111.99

$

Usually ships in 3-6 days

0

MTD 786-04256-0709

SHIELD-TINE 24" - MASTERCRAFT GREEN (0709)

$128.99

$

Usually ships in 3-6 days

0

MTD 786-04256-4044

SHIELD-TINE 24" - CRAFTSMAN RED (4044)

$128.99

$

Usually ships in 3-6 days

0

$128.99

$

Usually ships in 3-6 days

0

19

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

20

MTD 642-0005

Outer Tine Assembly LH
(Superseded to 642-0005-0637)

Variations

MTD 642-0005-0637

Tine Assembly, Outer LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

$60.99

$

In Stock, only 2 left!

0

21

MTD 642-0003

Inner Tine Assembly LH
(Superseded to 642-0003-0637)

Variations

MTD 642-0003-0637

Tine Assembly, Inner LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

22

MTD 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

23

MTD 738-04172

Shoulder Screw: .31x2:1/4-20

$

$

Not available

24

MTD 786-04299

Front Wheel Bracket
(Superseded to 786-04232)

Variations

MTD 786-04299-0637

Wheel Bracket, Front - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

MTD 786-04299-0638

Wheel Bracket, Front - MTD/TROY-BILT RED (0638)

$33.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

24

MTD 753-06219

Front Wheel Axle Hardware Kit

$

$

Not available

25

MTD 711-04511

Axle Shaft

$22.99

$

Usually ships in 3-6 days

0

26

MTD 750-04578

Spacer

$9.49

$

Usually ships in 3-6 days

0

27

MTD 734-04063

Wheel 7x1.5 Star-Diam
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

28

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

29

MTD 732-0384

Extension Spring
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 11

0

30

MTD 712-04064

Flange Lock Nut: 1/4-20

$3.99

$

In Stock, Qty 20+

0

31

MTD 710-0809

TT Screw: 1/4-20:1.25

$6.99

$

In Stock, Qty 17

0

32

MTD GW-9727

Pipe Plug: 3/8 NPT
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

33

MTD 642-0002

Inner Tine Assembly RH
(Superseded to 642-0002-0637)

Variations

MTD 642-0002-0637

Tine Assembly, Inner RH - POWDER BLACK (0637)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

34

MTD 642-0004

Outer Tine Assembly RH
(Superseded to 642-0004-0637)

Variations

MTD 642-0004-0637

Tine Assembly, Outer RH - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

35

MTD 918-04276B

Case Assembly

$616.99

$

Usually ships in 3-6 days

0

35

MTD 721-04135

Seal,Oil 23.5mm X 38.2mm X 8mm
(Superseded to 721-04144)

Note: Input Shaft Seal (Not shown)

$6.49

$

Usually ships in 3-6 days

0

35

MTD 921-04036

Seal,Oil 1.00 Shft X 1.500 Bore

Note: Tine Shaft Seal (Not shown)

$18.99

$

In Stock, Qty 20+

0

36

MTD 721-04157

Gasket
(Superseded to 721P04157)

$20.99

$

Usually ships in 3-6 days

0

37

MTD 686-04072

Depth Stake Assembly

Variations

MTD 686-04072-0709

BRACKET ASM:DEPTH - MASTERCRAFT GREEN (0709)

$60.99

$

Usually ships in 3-6 days

0

MTD 686-04072-0637

BRACKET ASM:DEPTH - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

38

MTD 710-1007

TT Screw: 3/8-16:1.50

$6.49

$

Usually ships in 3-6 days

0

39

MTD 712-04063

Flange Lock Nut: 5/16-18

$3.99

$

In Stock, Qty 20+

0

40

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

41

MTD 731-05385

Clutch Cable Fitting
(Superseded to 946-04626)

$33.99

$

In Stock, Qty 9

0

42

MTD 746-04247

Clutch Cable
(Superseded to 946-04247)

$50.99

$

In Stock, only 1 left!

0

43

MTD 710-0599

TT Screw: 1/4-20:.50

$4.49

$

In Stock, Qty 20+

0

44

MTD 786-04307

Cable Mount Bracket

Variations

MTD 786-04307-0637

BRACKET:MT:CABLE - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

MTD 786-04307-0709

BRACKET:MT:CABLE - MASTERCRAFT GREEN (0709)

$10.99

$

Usually ships in 3-6 days

0

MTD 786-04307-4044

BRACKET:MT:CABLE - CRAFTSMAN RED (4044)

$10.99

$

Usually ships in 3-6 days

0

$9.99

$

Usually ships in 3-6 days

0

45

MTD 747-04508

Clutch Bail

Variations

MTD 747-04508-0637

BAIL:CLUTCH - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 747-04508-0638

BAIL:CLUTCH - MTD/TROY-BILT RED (0638)

$37.99

$

Usually ships in 3-6 days

0

MTD 747-04508-0709

BAIL:CLUTCH - MASTERCRAFT GREEN (0709)

$37.99

$

Usually ships in 3-6 days

0

MTD 747-04508-4044

BAIL:CLUTCH - CRAFTSMAN RED (4044)

$37.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0
