21A-250H765 - Bolens Tiller (2005) General Assembly Parts Diagram

Tiller

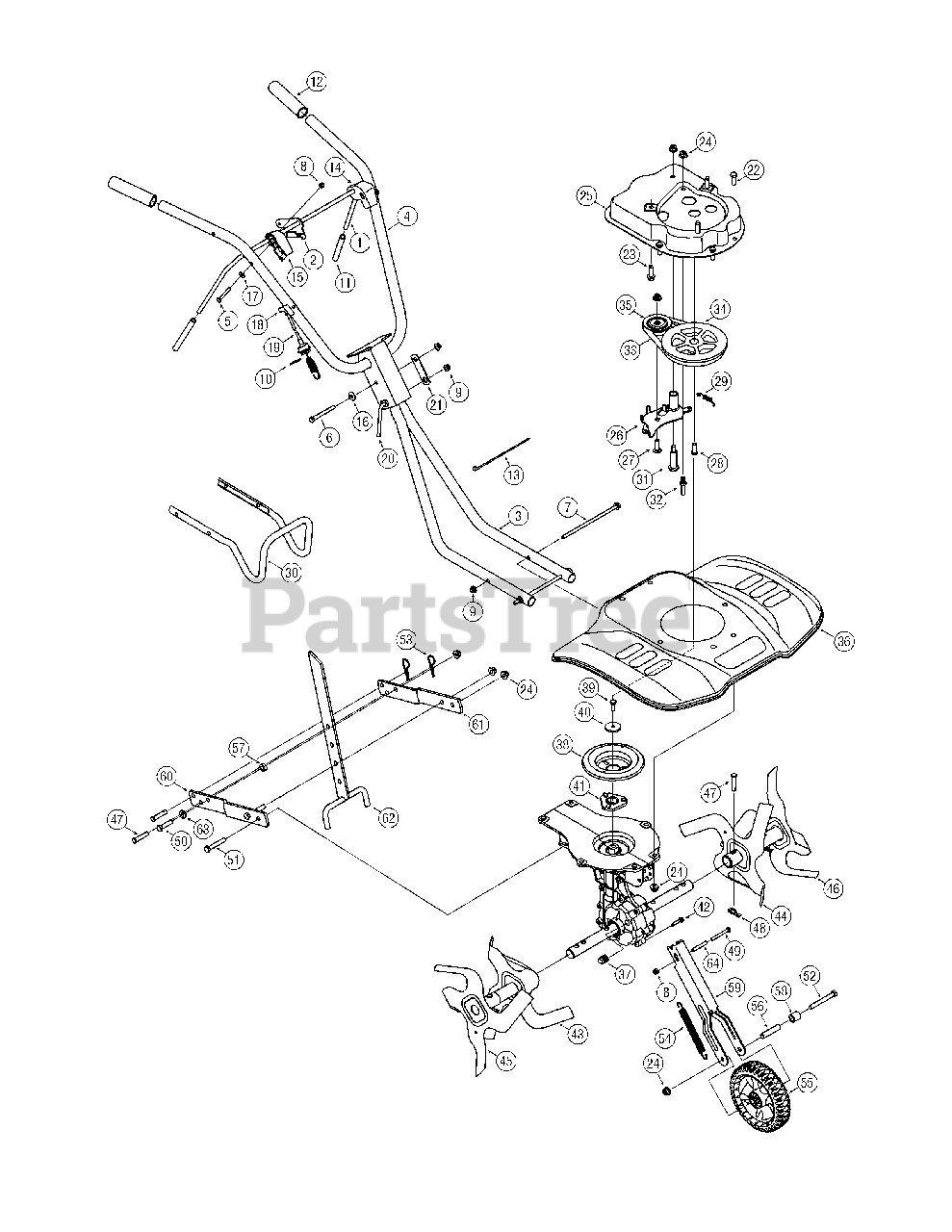

General Assembly Parts Diagram

  • Title

1

MTD 647-04047-0638

Clutch Bail

$48.99

$

Usually ships in 3-6 days

0

2

Clutch Crank, use 647-04047

$

$

Not available

3

MTD 649-04029

Handle Assembly: Lower

Variations

MTD 649-04029-0637

HANDLE ASM-LOWER - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

MTD 649-04029-0638

HANDLE ASM-LOWER - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

MTD 649-04029-0691

HANDLE ASM-LOWER - BLACK JACK (0691)

$82.99

$

Usually ships in 3-6 days

0

MTD 649-04029-0709

HANDLE ASM-LOWER - MASTERCRAFT GREEN (0709)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

4

MTD 649-04030

Handle Assembly: Upper

Variations

MTD 649-04030-0637

Upper Handle Assembly - POWDER BLACK (0637)

$110.99

$

Usually ships in 3-6 days

0

MTD 649-04030-0709

HANDLE ASM-UPPER - MASTERCRAFT GREEN (0709)

$110.99

$

Usually ships in 3-6 days

0

MTD 649-04030-0638

HANDLE ASM-UPPER - MTD/TROY-BILT RED (0638)

$110.99

$

Usually ships in 3-6 days

0

MTD 649-04030-0691

HANDLE ASM-UPPER - BLACK JACK (0691)

$118.99

$

Usually ships in 3-6 days

0

$95.99

$

Usually ships in 3-6 days

0

5

MTD 710-0136

Hex Screw: 1/4-20:1.75:GR5:STD

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0189

Hex Screw: 5/16-18:3.00:GR5:STD

$6.49

$

In Stock, Qty 5

0

7

MTD 710-04398

Flange Screw: 5/16-18:7.500:GR5

$12.99

$

Usually ships in 3-6 days

0

8

MTD 712-0324

Hex Lock Nut: 1/4-20:GR8:NYL

$3.99

$

In Stock, Qty 16

0

9

MTD 712-04063

Flange Lock Nut:5/16-18:GRF:NYL

$3.99

$

In Stock, Qty 20+

0

10

MTD 716-0102

Snap Ring: 1.0 dia. shaft

$5.49

$

In Stock, Qty 20+

0

11

MTD 720-0269

Handle Grip

$4.99

$

In Stock, only 1 left!

0

12

MTD 720-0274

Grip: 1.0 ID x 5.0 LG

$11.99

$

In Stock, Qty 8

0

13

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

14

MTD 731-05095

Bail Holder LH
(Superseded to 731-05095B)

$13.99

$

Usually ships in 3-6 days

0

15

MTD 731-05096

Bail Holder RH

$

$

Not available

16

MTD 736-0242

Bell Washer: .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0463

Flat Washer: .25 x .630 x .0515

$4.49

$

In Stock, Qty 20+

0

18

MTD 731-05272

Snap Fitting

$21.99

$

Usually ships in 3-6 days

0

19

MTD 746-04215

Forward Clutch Cable
(Superseded to 946-04663)

$81.99

$

Usually ships in 3-6 days

0

20

MTD 786-0340

Handle Adjustment Lever
(Superseded to 786-0340B)

$19.99

$

Usually ships in 3-6 days

0

21

MTD 786-0341

Retainer Bracket

$9.49

$

Usually ships in 3-6 days

0

22

MTD 710-0514

Hex Screw: 3/8-16:1.00:GR5:STD

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-1315

TT Screw: 3/8-16:1.250

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-04065

Flange Lock Nut: 3/8-16:GRF:NYL

$3.99

$

In Stock, Qty 20+

0

25

MTD 786-04222

Frame
(Superseded to 786-04303)

Variations

MTD 786-04222-0638

FRAME - MTD/TROY-BILT RED (0638)

$58.99

$

Usually ships in 3-6 days

0

MTD 786-04222-0709

FRAME - MASTERCRAFT GREEN (0709)

$58.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

26

MTD 686-04054

Idler Assembly Forward

$

$

Not available

27

MTD 738-04171

Shoulder Screw: 3/8-16:1.25:GR5

$

$

Not available

28

MTD 710-04453

Socket Screw: 3/8-24:1.0

$

$

Not available

29

MTD 732-0418

Extension Spring

$10.99

$

In Stock, only 3 left!

0

30

MTD 749-04185

Front Bumper (IF EQUIPPED)

Variations

MTD 749-04185-0637

BUMPER-FRONT - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

31

MTD 738-04131

Shoulder Screw: .56 x 1.87:3/8-16

$

$

Not available

32

MTD 738-04139

Stud: .33 x 1.5:3/8-16

$3.49

$

Usually ships in 3-6 days

0

33

MTD 754-04061

Belt

$17.99

$

Usually ships in 3-6 days

0

34

MTD 756-04145

Flywheel Pulley

$

$

Not available

35

MTD 756-04163

Idler Pulley

$44.99

$

Usually ships in 3-6 days

0

36

MTD 786-04256

Tine Shield 24 inch

Variations

MTD 786-04256-0638

SHIELD-TINE 24" - MTD/TROY-BILT RED (0638)

$137.99

$

Usually ships in 3-6 days

0

MTD 786-04256-0691

SHIELD-TINE 24" - BLACK JACK (0691)

$111.99

$

Usually ships in 3-6 days

0

MTD 786-04256-0709

SHIELD-TINE 24" - MASTERCRAFT GREEN (0709)

$128.99

$

Usually ships in 3-6 days

0

MTD 786-04256-4044

SHIELD-TINE 24" - CRAFTSMAN RED (4044)

$128.99

$

Usually ships in 3-6 days

0

$128.99

$

Usually ships in 3-6 days

0

37

MTD GW-9727

Pipe Plug: 3/8 NPT
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

38

MTD 756-04155

Pulley

$40.99

$

Usually ships in 3-6 days

0

39

MTD 710-04453

Socket Screw: 3/8-24:1.0

$

$

Not available

40

MTD 736-04184

Bell Washer: .382 x 1.500 x .109

$

$

Not available

41

MTD 748-04079

Pulley Adapter: .9875 dia.w/dd

$16.99

$

Usually ships in 3-6 days

0

42

MTD 710-0809

TT Screw: 1/4-20:1.250

$6.99

$

In Stock, Qty 17

0

43

MTD 642-0002

Inner Tine Assembly RH
(Superseded to 642-0002-0637)

Variations

MTD 642-0002-0637

Tine Assembly, Inner RH - POWDER BLACK (0637)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

44

MTD 642-0003

Inner Tine Assembly LH
(Superseded to 642-0003-0637)

Variations

MTD 642-0003-0637

Tine Assembly, Inner LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

45

MTD 642-0004

Outer Tine Assembly RH
(Superseded to 642-0004-0637)

Variations

MTD 642-0004-0637

Tine Assembly, Outer RH - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

46

MTD 642-0005

Outer Tine Assembly LH
(Superseded to 642-0005-0637)

Variations

MTD 642-0005-0637

Tine Assembly, Outer LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

$60.99

$

In Stock, only 2 left!

0

47

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

48

MTD 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

49

MTD 710-0641

Hex Screw: 1/4-20:2.25:GR5:STD

$4.49

$

In Stock, only 2 left!

0

50

MTD 710-0520

Hex Screw: 3/8-16:1.50:GR5:STD

$4.49

$

In Stock, Qty 5

0

51

MTD 710-3011

Hex Screw: 3/8-16:2.25:GR5:STD

$6.99

$

In Stock, Qty 19

0

52

MTD 710-3130

Hex Screw: 3/8-16:3.25:GR8:STD

$10.99

$

In Stock, only 4 left!

0

53

MTD 714-3020

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

54

MTD 732-0384

Extension Spring
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 11

0

55

MTD 734-1988

Wheel 7 x 1.8

$20.99

$

In Stock, only 4 left!

0

56

MTD 749-04204

Tube Sleeve

$

$

Not available

57

MTD 750-04380

Spacer: .383 x .750 x .285

$9.99

$

Usually ships in 3-6 days

0

58

MTD 750-04432

Spacer: .525 x .775 x .835

$4.49

$

Usually ships in 3-6 days

0

59

MTD 786-04232

Front Wheel Bracket

Variations

MTD 786-04232-0637

Wheel Bracket, Front - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

60

MTD 786-04238

Tail Bracket RH

Variations

MTD 786-04238-0637

BRACKET-TAIL RH - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

61

MTD 786-04239

Tail Bracket LH

Variations

MTD 786-04239-0637

BRACKET-TAIL LH - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

62

MTD 686-04064

Depth Stake Stand

Variations

MTD 686-04064-0637

No Longer Available STAND ASM:DEPTH - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 736-3010

Flat Washer: .407x.812x.135:HT

$4.99

$

In Stock, Qty 20+

0

64

MTD 749-04240

Tube Sleeve

$

$

Not available

MTD 918-04276

Case Assembly
(Superseded to 918-04276B)

$616.99

$

Usually ships in 3-6 days

0
