21A-24T1711 - Troy-Bilt Ranger Tiller (2018) Drive Parts Diagram

Ranger Tiller

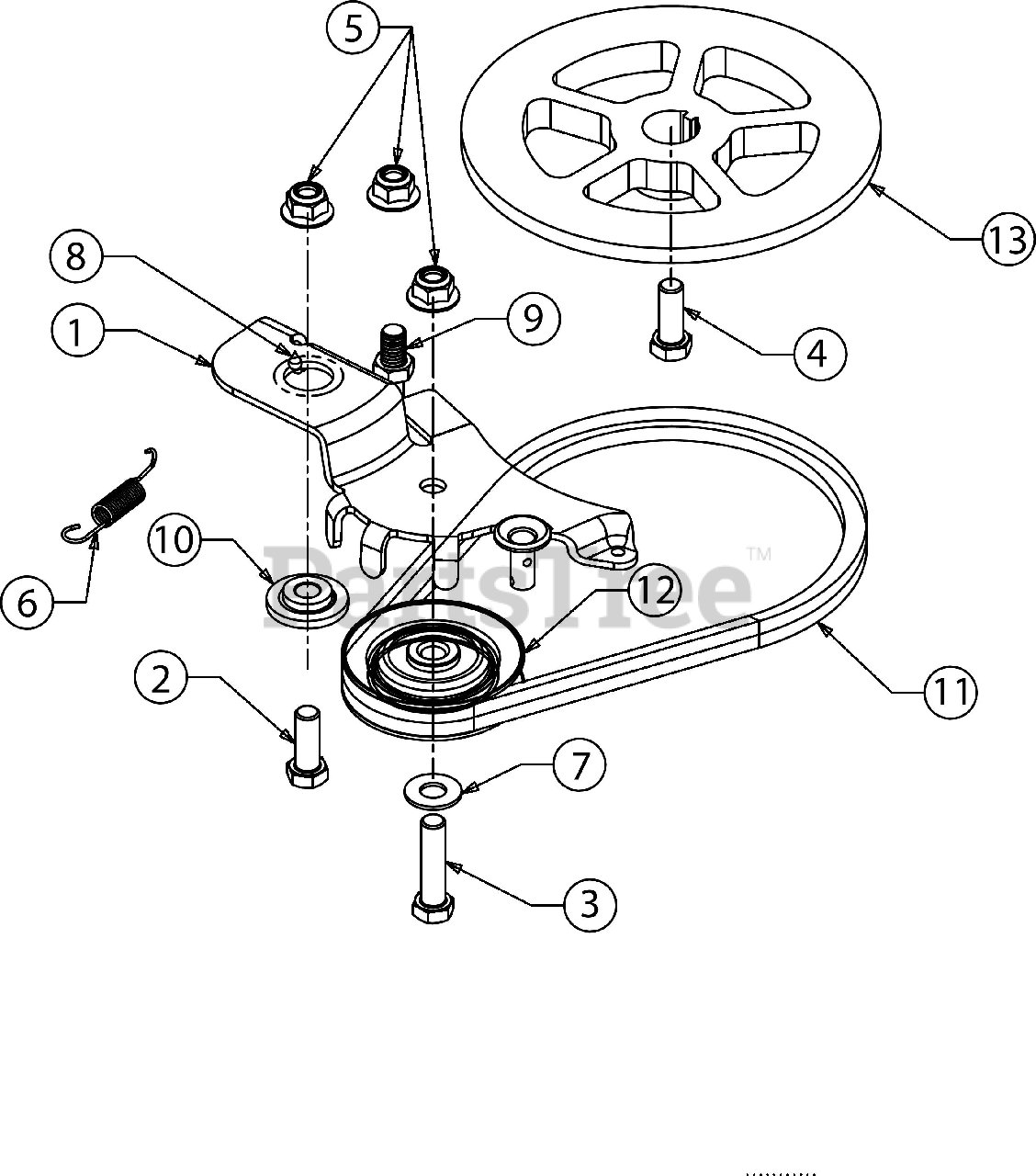

Drive Parts Diagram

  • Title

1

Troy-Bilt 686-04080

IDLER ASSEMBLY

$35.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 786-04309

IDLER BRACKET
(Superseded to 686-04080)

$35.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0514

SCREW 3/8-16 X 1 GR5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0520

SCREW 3/8-16 X 1.50

$4.49

$

In Stock, Qty 6

0

4

Troy-Bilt 710-0591

SCREW 3/8-24 X 1.00 GR5

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 732-0418

SPRING

$10.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 936-0300

FLAT WASHER
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

8

GREASE

Note: (Purchase Locally)

$

$

Not available

9

Troy-Bilt 738-04139

STUD: 33 X 1.75 3/8-16

$3.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 748-04125

SHOULDER SPACER

$3.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 954-04123

BELT 1/2 X 4L X 24.82

$30.99

$

In Stock, Qty 17

0

12

Troy-Bilt 756-04163

V-IDLER PULLEY

$44.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 756-04217

FLYWHEEL PULLEY

$85.99

$

Usually ships in 3-6 days

0
