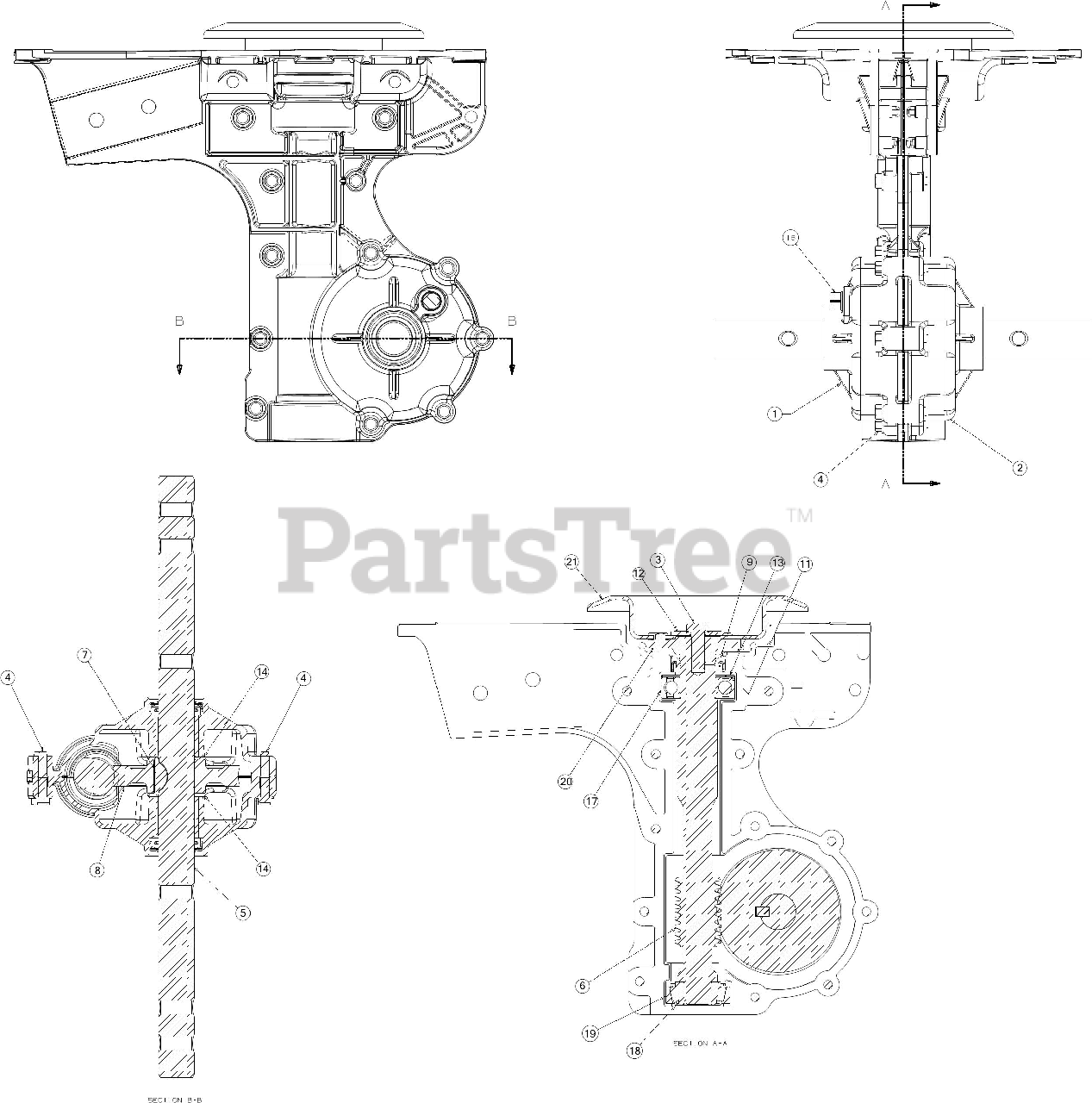

21A-24MB752 - Yard Machines Tiller (2016) Worm Case Assembly Parts Diagram

Tiller

Worm Case Assembly Parts Diagram

  • Title

1

N/A

N/A

Note: (Not Serviceable, Order Part Number 918-04276B)

$

$

Not available

1b

MTD 921-04036

OIL SEAL 1.00 SHF X 1.500

$18.99

$

In Stock, Qty 20+

0

1c

MTD 741-04139

BEARING SLEEVE 1.00

$10.99

$

Usually ships in 3-6 days

0

2

N/A

N/A

Note: (Not Serviceable, Order Part Number 918-04276B)

$

$

Not available

2c

MTD 921-04036

OIL SEAL 1.00 SHF X 1.500

$18.99

$

In Stock, Qty 20+

0

2d

MTD 741-04139

BEARING SLEEVE 1.00

$10.99

$

Usually ships in 3-6 days

0

3

MTD 710-0591

SCREW 3/8-24 X 1.00 GR5

$4.49

$

In Stock, only 1 left!

0

4

MTD 710-0809

SCREW 1/4-20 X 1.25

$6.99

$

In Stock, Qty 19

0

5

N/A

N/A

Note: (Not Serviceable, Order Part Number 918-04276B)

$

$

Not available

6

N/A

N/A

Note: (Not Serviceable, Order Part Number 918-04276B)

$

$

Not available

7

MTD 714-0113

KEY-HI-PRO #A-1/4

$6.99

$

Usually ships in 3-6 days

0

8

N/A

N/A

Note: (Not Serviceable, Order Part Number 918-04276B)

$

$

Not available

9

MTD 721-04144

OIL SEAL

$6.49

$

Usually ships in 3-6 days

0

11

MTD 936-0266

FLAT WASHER
(Superseded to 736-0266)

$

$

Not available

12

N/A

N/A

Note: (Not Serviceable, Order Part Number 918-04276B)

$

$

Not available

13

MTD 736-04186

FLAT WASHER 1.50

$3.49

$

Usually ships in 3-6 days

0

14

MTD 736-0745

WASHER 1.010X1.560X.060

$12.99

$

Usually ships in 3-6 days

0

16

MTD 737-04272

PIPE PLUG 1/4-18

$3.99

$

Usually ships in 3-6 days

0

17

MTD 941-0301

BALL BEARING

$53.99

$

In Stock, only 4 left!

0

18

MTD 941-04298

BEARING CONE

$16.99

$

In Stock, Qty 19

0

19

MTD 941-04299

BEARING CUP

$6.99

$

In Stock, Qty 20+

0

20

MTD 748-04079

PULLEY ADAPTER

$16.99

$

Usually ships in 3-6 days

0

21

MTD 756-04155

PULLEY

$40.99

$

Usually ships in 3-6 days

0
