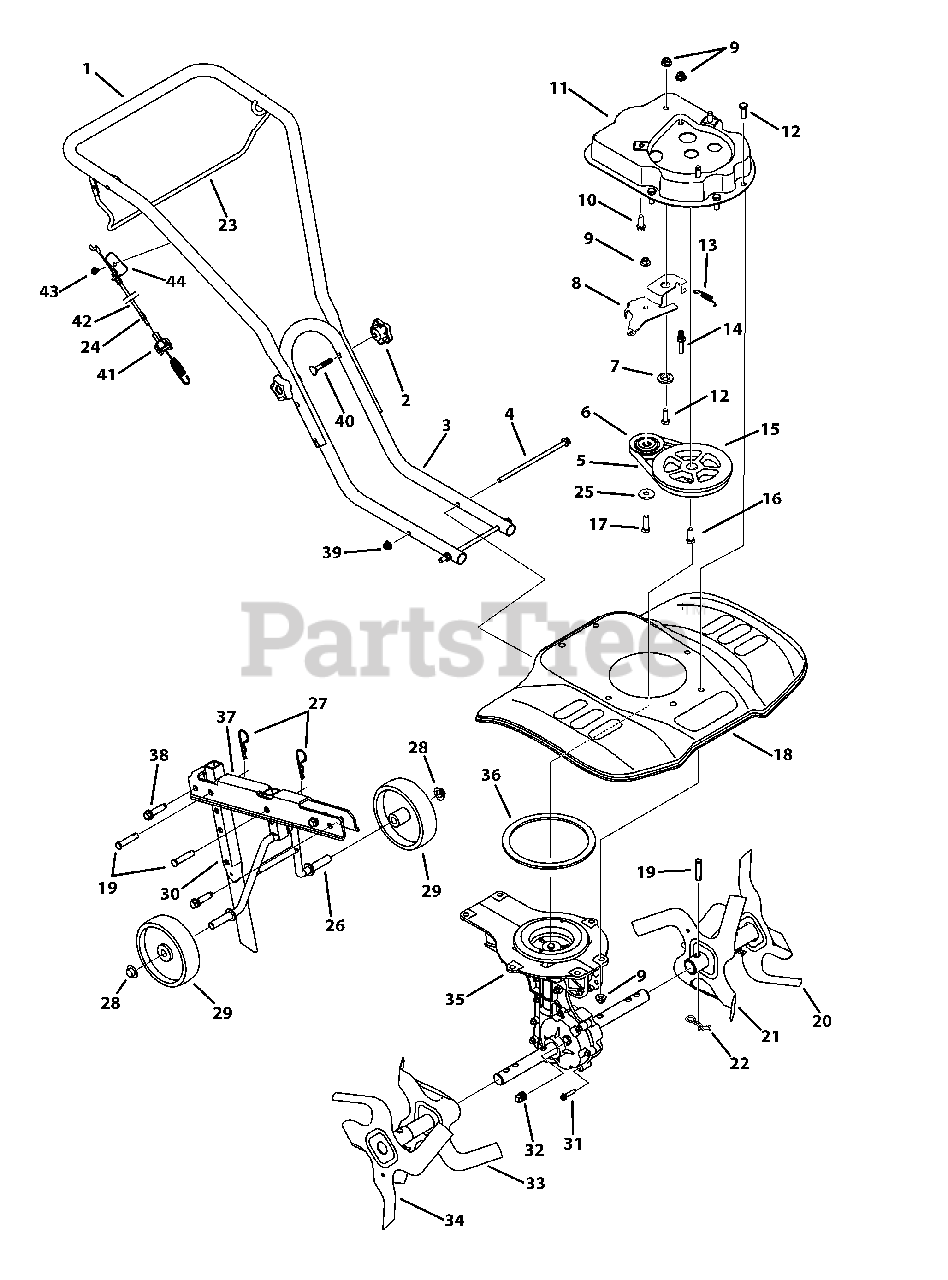

21A-24MA752 - Yard Machines Tiller (2013) General Assembly Parts Diagram

Tiller

General Assembly Parts Diagram

  • Title

1

MTD 749-04282-0691

Upper Handle
(Superseded to 749-04282-0637)

$127.99

$

Usually ships in 3-6 days

0

2

MTD 720-04072A

Star Handle Knob

$6.99

$

In Stock, Qty 20+

0

3

MTD 749-04281-0691

Lower Handle
(Superseded to 749-04281-0637)

$75.99

$

Usually ships in 3-6 days

0

4

MTD 710-04398

Flange Screw: 5/16-18:7.5:GR5

$12.99

$

Usually ships in 3-6 days

0

5

MTD 954-04123

V-Belt

$30.99

$

In Stock, Qty 17

0

6

MTD 756-04163

Idler Pulley

$44.99

$

Usually ships in 3-6 days

0

7

MTD 748-04125

Shoulder Spacer

$3.99

$

Usually ships in 3-6 days

0

8

MTD 686-04080

Idler Bracket

$35.99

$

Usually ships in 3-6 days

0

9

MTD 712-04065

Flange Lock Nut: 3/8-16

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0654A

TT Screw: 3/8-16:1.00

$4.49

$

In Stock, only 4 left!

0

11

MTD 786-04303-0638

Belt Cover

$58.99

$

Usually ships in 3-6 days

0

12

MTD 710-0514

Hex Cap Screw: 3/8-16:1.00

$4.49

$

In Stock, Qty 20+

0

13

MTD 732-0418

Extension Spring

$10.99

$

In Stock, only 3 left!

0

14

MTD 738-04139

Stud: 33 x 1.5: 3/8-16

$3.49

$

Usually ships in 3-6 days

0

15

MTD 756-04217

Flywheel Pulley

$85.99

$

Usually ships in 3-6 days

0

16

MTD 710-0591

Hex Cap Screw: 3/8-24:1.00

$4.49

$

In Stock, only 1 left!

0

17

MTD 710-0520

Hex Cap Screw: 3/8-16:1.55

$4.49

$

In Stock, Qty 6

0

18

MTD 786-04256-0638

Tine Shield 61 cm

$137.99

$

Usually ships in 3-6 days

0

19

MTD 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

20

MTD 642-0005-0637

Outer Tine Assembly LH

$60.99

$

In Stock, only 2 left!

0

21

MTD 642-0003-0637

Inner Tine Assembly LH

$60.99

$

In Stock, Qty 12

0

22

MTD 714-04043

Cotter Pin, Bow Tie

$4.99

$

In Stock, Qty 18

0

23

MTD 747-04508-0638

Clutch Bail
(Superseded to 747-04508-0637)

$37.99

$

Usually ships in 3-6 days

0

24

MTD 716-0208

Retaining Ring

$6.99

$

In Stock, only 1 left!

0

25

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

26

MTD 686-04130-0691

Rear Wheel Tube Assembly

$49.99

$

Usually ships in 3-6 days

0

27

MTD 714-3020

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

28

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

29

MTD 734-0973

Wheel 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

30

MTD 749-04265-0638

Depth Stake Tube
(Superseded to 749-04265-0691)

$47.99

$

Usually ships in 3-6 days

0

31

MTD 710-0809

TT Screw: 1/4-20:1.25

$6.99

$

In Stock, Qty 19

0

32

MTD 737-04202

Pipe Plug: 3/8 NPT

$6.99

$

Usually ships in 3-6 days

0

33

MTD 642-0002-0637

Inner Tine Assembly RH

$60.99

$

In Stock, only 1 left!

0

34

MTD 642-0004-0637

Outer Tine Assembly RH

$60.99

$

In Stock, Qty 12

0

35

MTD 918-04276B

Case Assembly

$616.99

$

Usually ships in 3-6 days

0

36

MTD 721-04157

Gasket
(Superseded to 721P04157)

$20.99

$

Usually ships in 3-6 days

0

37

MTD 786-04296-0637

Wheel Bracket

$44.99

$

Usually ships in 3-6 days

0

38

MTD 710-1007

TT Screw: 3/8-16:1.50

$6.49

$

In Stock, only 1 left!

0

39

MTD 712-04063

Flange Lock Nut: 5/16-18

$3.99

$

In Stock, Qty 5

0

40

MTD 710-0487

Carriage Bolt

$7.49

$

Usually ships in 3-6 days

0

41

MTD 946-04626

Clutch Cable Fitting

$33.99

$

In Stock, Qty 9

0

42

MTD 946-04626

Clutch Cable

$33.99

$

In Stock, Qty 9

0

43

MTD 710-0599

TT Screw: 1/4-20:.50

$4.49

$

In Stock, Qty 20+

0

44

MTD 786-04307-0637

Cable Mount Bracket

$10.99

$

Usually ships in 3-6 days
