21A-035-000 - Yard Machines Tiller (2000) General Assembly Parts Diagram

Tiller

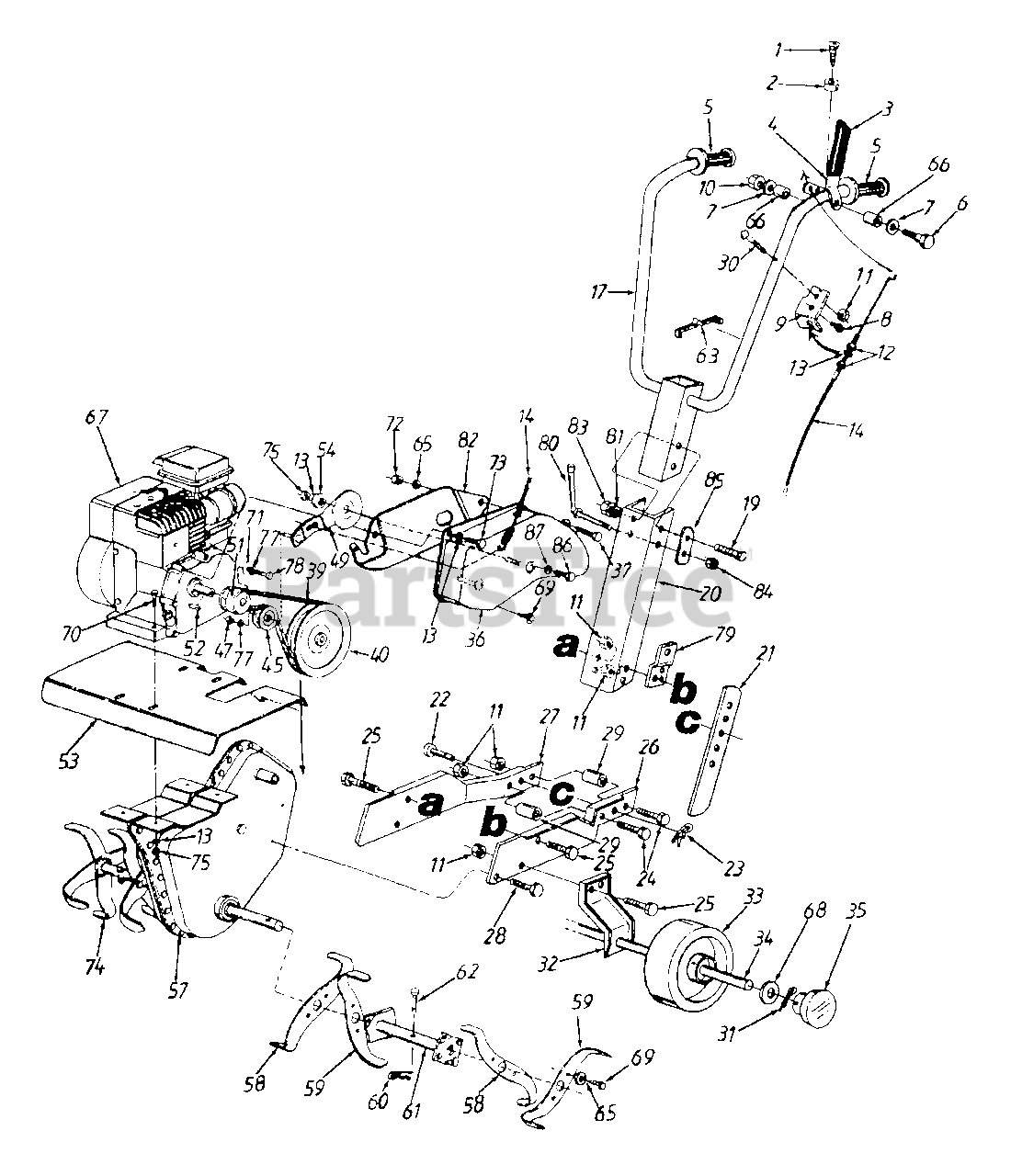

General Assembly Parts Diagram

  • Title

1

MTD 710-0779A

Tap Scr. #10 x 1/2" Lg.

$4.49

$

In Stock, Qty 12

0

2

MTD 720-0263

Rubber Bumper

$

$

Not available

3

MTD 731-0473

Vinyl Grip

$4.49

$

Usually ships in 3-6 days

0

4

MTD 686-0002

Clutch Lever Ass'y.
(Superseded to 686-0002-0637)

Variations

MTD 686-0002-0637

LEVER ASSY-CLUTCH - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

5

MTD 720-0233

Handle Grip
(Superseded to 920-0233)

$

$

Not available

6

MTD 710-0501

Hex Bolt 1/4-20 x 2" Lg.

Note: Purchase Locally

$7.49

$

Usually ships in 3-6 days

0

7

MTD 736-3090

Fl-Wash. 1/4" I.D.

$6.99

$

In Stock, Qty 11

0

8

MTD 710-1201

Hex Tap Scr. 1/4-20 x 1/2" Lg.

$

$

Not available

9

MTD 15093C

Cable Bracket

$

$

Not available

10

MTD 712-0324

Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

11

MTD 712-0429

Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

13

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

Note: Purchase Locally

$4.99

$

In Stock, Qty 20+

0

14

MTD 746-0926

Clutch Control Cable
(Superseded to 946-0926)

$42.99

$

In Stock, only 2 left!

0

17

MTD 649-0018

Handle Ass'y.

Variations

MTD 649-0018-0483

No Longer Available HANDLE ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 649-0018-0498

No Longer Available HANDLE ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 649-0018-0637

Handle Ass'y. - POWDER BLACK (0637)

$

$

Not available

MTD 649-0018-0638

No Longer Available HANDLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 649-0018-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

19

MTD 710-3022

Hex Bolt 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

20

MTD 786-0146

Handle Channel - Frame

Variations

MTD 786-0146-0637

Handle Channel-Frame - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 04764

Depth Stake

Variations

MTD 04764-0637

Depth Stake - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

23

MTD 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0

24

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg.

Note: Purchase Locally

$3.99

$

In Stock, Qty 5

0

25

MTD 710-0759

Hex Bolt 5/16-18 x 5/8" Lg.

Note: Purchase Locally

$6.99

$

Usually ships in 3-6 days

0

26

MTD 786-0011

L.H. Frame Half

Variations

MTD 786-0011-0637

L.H. Frame Half - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 786-0010

R.H. Frame Half

Variations

MTD 786-0010-0637

R.H. Frame Half - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 710-0607

Hex Tap. Scr. 5/16-18 x 1/2" Lg

$6.99

$

In Stock, Qty 11

0

29

MTD 750-0845

Spacer
(Superseded to 750-0808)

$

$

Not available

30

MTD 710-1090

Hex Bolt 5/16-18 x 1-1/4" Lg.

$3.99

$

Usually ships in 3-6 days

0

31

MTD 714-3017

Cotter Pin
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

32

MTD 786-0012

Wheel Bracket
(Superseded to 786-0012-0637)

Variations

MTD 786-0012-0637

Wheel Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 634-0013

Wheel - 6"

$

$

Not available

34

MTD 738-0855

Axle-Wheel

$

$

Not available

35

MTD 720-0258

Hub Cap

$

$

Not available

36

MTD 786-0151A

Belt Cover

Variations

MTD 786-0151A-0498

No Longer Available COVER-BELT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 786-0151A-0638

No Longer Available COVER-BELT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0151A-0662

Belt Cover - OYSTER GRAY (0662)

$

$

Not available

$

$

37

MTD 710-0751

Hex Bolt 1/4-20 x .620" Lg.

Note: Purchase Locally

$3.99

$

In Stock, Qty 20+

0

39

MTD 754-0216

V-Belt
(Superseded to 954-0216)

$30.99

$

In Stock, only 1 left!

0

40

MTD 756-0996

Pulley-Chain Case

$

$

Not available

45

MTD 756-0199

Flat Idler Pulley

$25.99

$

In Stock, only 1 left!

0

47

MTD 712-0116

Hex Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

49

MTD 784-0016

Idler Arm Ass'y.

$

$

Not available

51

MTD 756-0286

Engine Pulley

$

$

Not available

52

MTD 714-0122

Square Key 3/16" x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

53

MTD 786-0148A

Tine Shield

Variations

MTD 786-0148A-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 786-0148A-0606

No Longer Available SHIELD-TIN - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 786-0148A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 786-0148A-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0148A-0662

Tine Shield - OYSTER GRAY (0662)

$

$

Not available

MTD 786-0148A-0665

No Longer Available SHIELD-TIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

54

MTD 736-0289

Washer-Bushing
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

57

MTD 686-0093A

Chain Case Ass'y. Comp.

$

$

Not available

58

MTD 04922

R.H. Tine Blade

Variations

MTD 04922-0637

Tine Blade R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 04923

L.H. Tine Blade
(Superseded to 04923-0637)

Variations

MTD 04923-0637

Tine, LH Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

60

MTD 714-0149B

Hairpin Cotter

$4.49

$

In Stock, Qty 18

0

61

MTD 04918

Adapter Ass'y.- Tine
(Superseded to 04918-0637)

Variations

MTD 04918-0637

ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$

62

MTD 711-0702

Clevis Pin

$

$

Not available

63

MTD 726-0306

Cable Tie-Plastic

$

$

Not available

65

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

Note: Purchase Locally

$4.49

$

In Stock, Qty 11

0

66

MTD 750-0846

Spacer

$

$

Not available

67

Engine

$

$

Not available

68

MTD 736-3050

Fl-Wash. .406 I.D.

$4.49

$

In Stock, Qty 16

0

69

MTD 710-0599

Tap Scr. 1/4-20 x 1/2" Lg.

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-0502A

Hex Bolt 3/8-16

$6.99

$

In Stock, only 2 left!

0

71

MTD 736-0258

Fl-Wash .3/8" I.D. x 1" O.D.

$4.49

$

Usually ships in 3-6 days

0

72

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

Note: Purchase Locally

$4.99

$

In Stock, only 1 left!

0

73

MTD 710-0107

Hex Bolt 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

74

MTD 04921

Tine Blade Ass'y. Comp.

Variations

MTD 04921-0637

Tine Ass'y. Comp. - POWDER BLACK (0637)

$

$

Not available

$

$

75

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

Note: Purchase Locally

$4.49

$

In Stock, Qty 20+

0

77

MTD 736-0169

L-Wash. 3/8" I.D.

Note: Purchase Locally

$3.99

$

In Stock, Qty 20+

0

78

MTD 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

79

MTD 786-0046

Belt Cover Bracket

Variations

MTD 786-0046-0637

Belt Cover Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

80

MTD 784-0190

Handle Adj. Crank

$24.99

$

Usually ships in 3-6 days

0

81

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

82

MTD 786-0153

Belt Cover - Rear

Variations

MTD 786-0153-0637

Belt Cover-Rear - POWDER BLACK (0637)

$

$

Not available

$

$

83

MTD 712-0431

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

84

MTD 712-0379

Hex Flange L-Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

85

MTD 784-0191

Retainer Bracket

$7.49

$

Usually ships in 3-6 days

0

86

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

87

MTD 736-0264

Fl-Wash. .330 I.D.

$6.99

$

In Stock, only 1 left!

0
