21997x50A - Murray 21" Walk-Behind Mower (2003) Mower Housing Assembly (part 1) Parts Diagram

21" Walk-Behind Mower

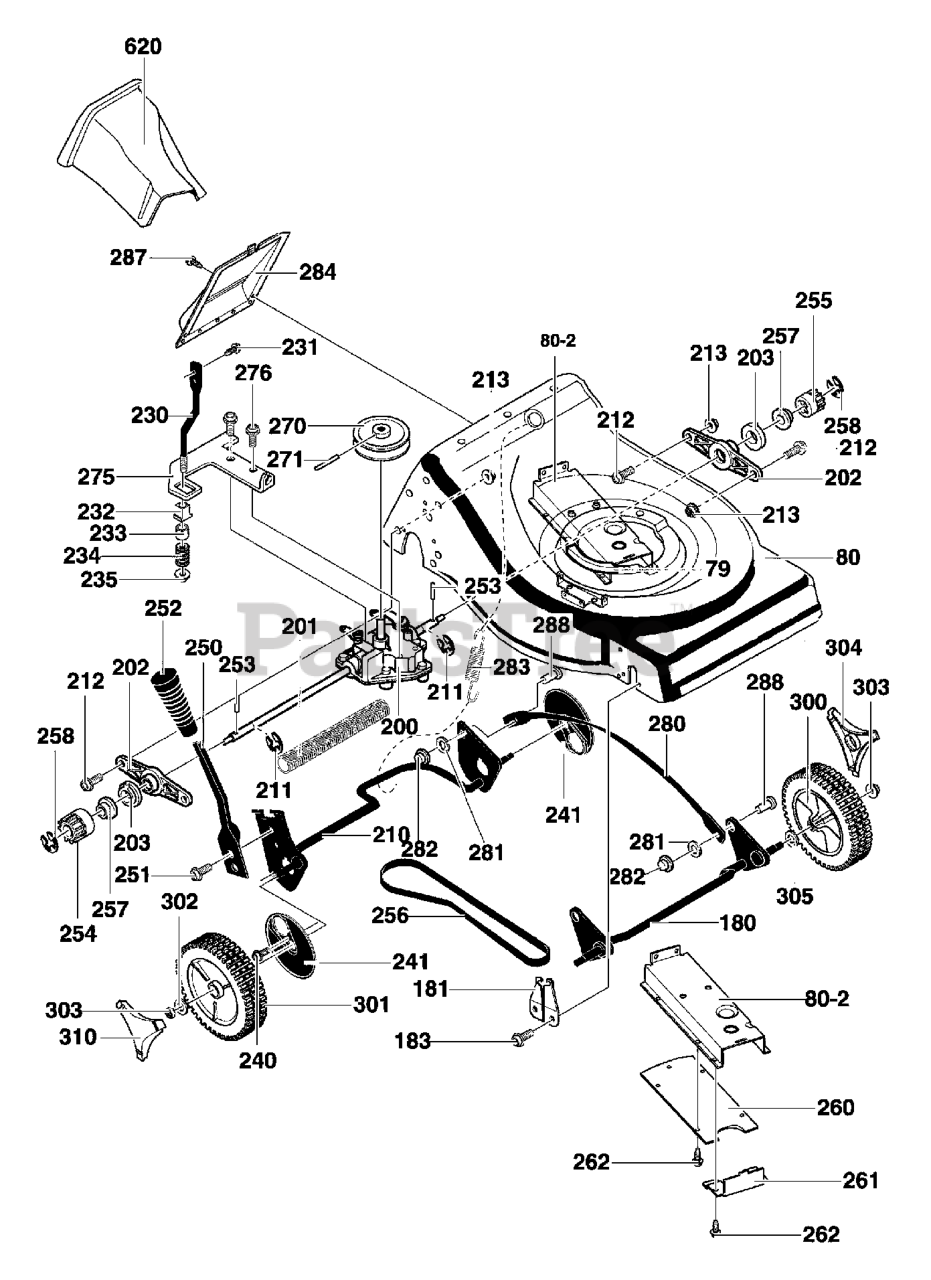

Mower Housing Assembly (part 1) Parts Diagram

  • Title
79

Murray 712012

SEAL, FOAM

$

$

Not available

80

Murray 672274-860

ASSY, FRAME

$

$

Currently unavailable

80-2

Murray 71238E245MA

GUARD, BELT
(Superseded to 71238E701MA)

$24.99

$

In Stock, only 1 left!

0

180

Murray 71152-860

CROSSBAR, FRONT

$24.99

$

Usually ships in 2-12 days

0

181

Murray 672279MA

BUSHING

$4.49

$

Usually ships in 2-12 days

0

183

$3.49

$

Usually ships in 2-12 days

0

200

Murray 672270MA

TRANSMISSION

$267.99

$

Usually ships in 2-12 days

0

201

Murray 043649

SHIELD, AXLE

$5.99

$

Usually ships in 2-12 days

0

202

Murray 071411MA

SUPPORT, AXLE

$9.49

$

Usually ships in 2-12 days

0

203

Murray 043788MA

BEARING, LIFTER

$4.99

$

In Stock, only 2 left!

0

210

Murray 672277E701MA

ASSY, CROSSBAR

$55.99

$

Usually ships in 2-12 days

0

211

$3.99

$

Usually ships in 2-12 days

0

212

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

213

Murray 015X88MA

NUT
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

230

Murray 071481 Z

SUPPORT, SPRING

$

$

Currently unavailable

231

$3.49

$

Usually ships in 2-12 days

0

232

Murray 071480MA

BUSHING

$3.99

$

Usually ships in 2-12 days

0

233

$12.99

$

Usually ships in 2-12 days

0

234

$3.99

$

Usually ships in 2-12 days

0

235

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

240

$3.49

$

Usually ships in 2-12 days

0

241

Murray 643616MA

DUST COVER

$6.49

$

Usually ships in 2-12 days

0

250

Murray 672278MA

LEVER, SPRING

$12.99

$

Usually ships in 2-12 days

0

251

$61.99

$

Usually ships in 2-12 days

0

252

Murray 671297MA

KNOB, HEIGHT ADJ

$6.49

$

In Stock, only 1 left!

0

253

Murray 043629MA

PIN, DRIVE

$5.99

$

In Stock, only 3 left!

0

254

Murray 671904MA

GEAR, PINION RIGHT

$

$

Not available

255

Murray 671903MA

GEAR, PINION LEFT

$21.99

$

Usually ships in 2-12 days

0

256

Murray 672271MA

BELT, V

$22.99

$

Usually ships in 2-12 days

0

257

Murray 710254

WASHER, FLAT
(Superseded to 710364)

$152.99

$

Usually ships in 2-12 days

0

258

$3.99

$

Usually ships in 2-12 days

0

260

Murray 43770E701MA

COVER, BELT GUARD

$35.99

$

Usually ships in 2-12 days

0

261

Murray 71239E701MA

COVER, FRONT BELT
(Superseded to 7300724YP)

$10.99

$

Usually ships in 2-12 days

0

262

$4.49

$

In Stock, only 4 left!

0

270

Murray 672269MA

PULLEY,

$17.99

$

Usually ships in 2-12 days

0

271

Murray 710294

PIN, SPRING

$

$

Not available

275

Murray 672819

BRACKET, CABLE

$10.99

$

Usually ships in 2-12 days

0

276

$

$

Not available

280

Murray 43720E701

LINK, LIFTER 21

$

$

Currently unavailable

281

Murray 028X49MA

NUT, PUSH ON

$3.99

$

In Stock, Qty 13

0

282

Murray 028X42MA

PUSH ON CAP

$3.99

$

Usually ships in 2-12 days

0

283

Murray 711459MA

SPRING, EXTENSION

$9.49

$

Usually ships in 2-12 days

0

284

Murray 71246E701

COVER, REAR

$9.49

$

Usually ships in 2-12 days

0

287

$1.99

$

Usually ships in 2-12 days

0

288

Murray 711542MA

PIN, CLEVIS

$5.99

$

Usually ships in 2-12 days

0

300

Murray 672802

TIRE & RIM

$

$

Not available

301

Murray 672440MA

WHEEL, DRIVE

$

$

Not available

302

Murray 710252

WASHER, FLAT
(Superseded to 711573)

$52.99

$

Usually ships in 2-12 days

0

303

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

304

Murray 672445MA

HUB CAP

$5.49

$

Usually ships in 2-12 days

0

305

Murray 0020X3MA

SPRING WASHER

$4.49

$

Usually ships in 2-12 days

0

310

Murray 672805MA

HUB CAP
(Superseded to 672446MA)

$5.99

$

Usually ships in 2-12 days

0

620

Murray 071250MA

PLUG, MULCHER

$97.99

$

Usually ships in 2-12 days

0

--

Murray F-030407L

BOOK, INSTRUCTION

$

$

Currently unavailable
