21997x31A - Scotts 21" Walk-Behind Mower (2000) Handle Assembly Parts Diagram

21" Walk-Behind Mower

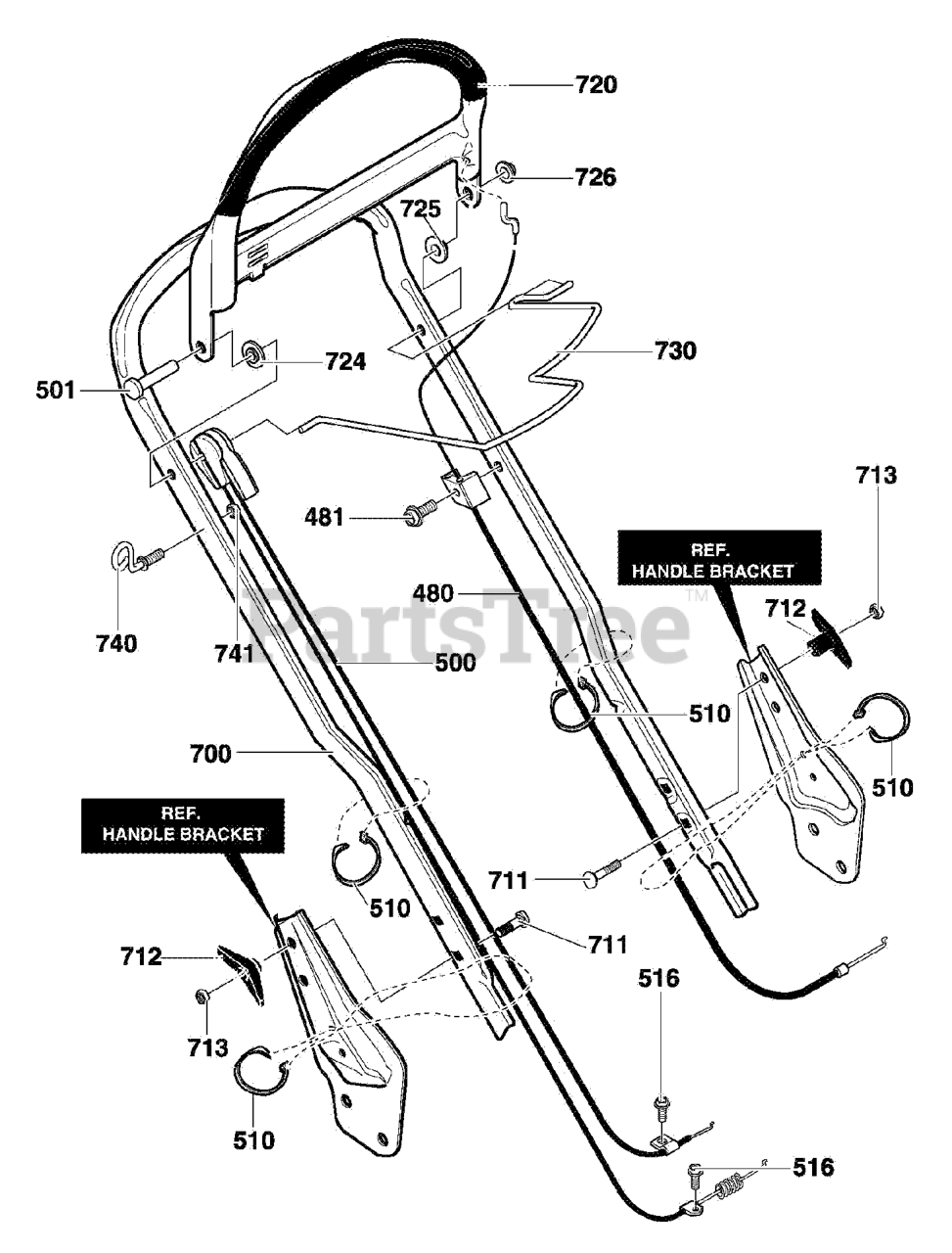

Handle Assembly Parts Diagram

  • Title

480

Murray 672852MA

Cable Stop

$22.99

$

Usually ships in 2-12 days

0

481

Murray 710269

Screw, 10-16x.75

$

$

Not available

500

Murray 672854MA

Cable, Drive

$119.99

$

Usually ships in 2-12 days

0

501

Murray 711833MA

Screw, #10-16x1.38

$

$

Not available

510

Murray 712267

Cable Tie

$3.99

$

Usually ships in 2-12 days

0

516

Murray 710271

Screw, 10-16x.50

$

$

Currently unavailable

700

Murray 672843

Handle

$

$

Currently unavailable

711

Murray 710175

Bolt, Carr 5/16-18x2.00

$5.99

$

Usually ships in 2-12 days

0

712

Murray 57171

Knob, T
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

713

Murray 120376

Nut, 5/16-18

$

$

Not available

720

Murray 672797

Lever, Stop

$23.99

$

Usually ships in 2-12 days

0

724

Murray 672734MA

Spacer, Flange

$4.49

$

Usually ships in 2-12 days

0

725

Murray 672734MA

Spacer, Flange

$4.49

$

Usually ships in 2-12 days

0

726

Murray 710286

Retainer Cap

$29.99

$

Usually ships in 2-12 days

0

730

Murray 672290-898

Lever, Drive Wire

$6.99

$

Usually ships in 2-12 days

0

740

Murray 672510MA

Rope Guide

$5.99

$

Usually ships in 2-12 days

0

741

Murray 710203

Nut, 1/4-20

$19.99

$

Usually ships in 2-12 days

0
