21995x8C - Scotts 21" Walk-Behind Mower (2000) Drive & Wheel Assembly Parts Diagram

21" Walk-Behind Mower

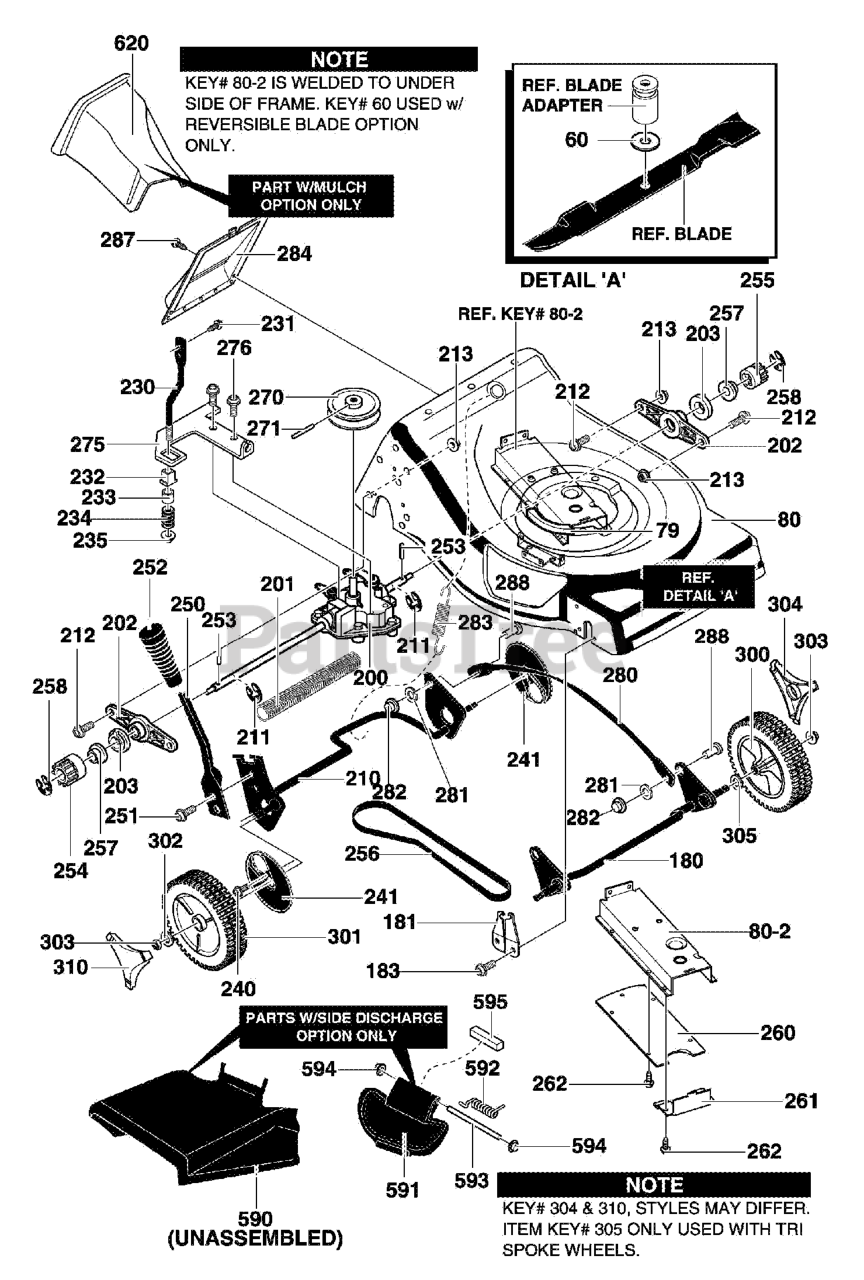

Drive & Wheel Assembly Parts Diagram

  • Title
60

Murray 671470

SPACER

$2.49

$

Usually ships in 2-12 days

0

79

Murray 712012

SEAL, FOAM

$

$

Not available

80

Murray 672923-898

ASSY, FRAME

$159.99

$

Usually ships in 2-12 days

0

80-2

Murray 71238

GUARD, BELT

$

$

Not available

180

Murray 71152-898

CROSSBAR, FRONT

$

$

Not available

181

Murray 672279MA

BUSHING

$4.49

$

Usually ships in 2-12 days

0

183

$20.99

$

Usually ships in 2-12 days

0

200

Murray 672270MA

TRANSMISSION

$267.99

$

Usually ships in 2-12 days

0

201

Murray 643649

SHIELD, AXLE

$1.49

$

Usually ships in 2-12 days

0

202

Murray 671411

SUPPORT, AXLE

$

$

Currently unavailable

203

Murray 643788

BEARING, LIFTER

$

$

Currently unavailable

210

Murray 672277-898

ASSY, CROSSBAR

$

$

Currently unavailable

211

Murray 020864

E-RING

$3.99

$

Usually ships in 2-12 days

0

212

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

213

$14.99

$

In Stock, only 1 left!

0

230

Murray 071481

SUPPORT, SPRING

$5.49

$

Usually ships in 2-12 days

0

231

$3.49

$

Usually ships in 2-12 days

0

232

Murray 071480MA

BUSHING

$3.99

$

Usually ships in 2-12 days

0

233

$12.99

$

Usually ships in 2-12 days

0

234

Murray 710327

SPRING

$1.49

$

Usually ships in 2-12 days

0

235

Murray 710205

NUT, 5/16-18

$14.99

$

In Stock, only 1 left!

0

240

$20.99

$

Usually ships in 2-12 days

0

241

Murray 643616MA

DUST COVER

$6.49

$

Usually ships in 2-12 days

0

250

Murray 672278MA

LEVER, SPRING

$12.99

$

Usually ships in 2-12 days

0

251

$61.99

$

Usually ships in 2-12 days

0

252

Murray 671297MA

KNOB, HEIGHT ADJ

$6.49

$

In Stock, only 1 left!

0

253

Murray 643629

PIN, DRIVE

$

$

Not available

254

Murray 671904MA

GEAR, PINION RIGHT

$

$

Not available

255

Murray 671903MA

GEAR, PINION LEFT

$21.99

$

Usually ships in 2-12 days

0

256

Murray 672271MA

BELT, V

$22.99

$

Usually ships in 2-12 days

0

257

Murray 710254

WASHER, FLAT
(Superseded to 710364)

$152.99

$

Usually ships in 2-12 days

0

258

Murray 020864

E-RING

$3.99

$

Usually ships in 2-12 days

0

260

Murray 43770-898

COVER, BELT GUARD

$

$

Currently unavailable

261

Murray 71239-898

COVER, FRONT BELT

$

$

Currently unavailable

262

$

$

Currently unavailable

270

Murray 672269MA

PULLEY,

$17.99

$

Usually ships in 2-12 days

0

271

Murray 710294

PIN, SPRING

$

$

Not available

275

Murray 672819

BRACKET, CABLE

$10.99

$

Usually ships in 2-12 days

0

276

$

$

Not available

280

Murray 43720-898

LINK, LIFTER 21

$

$

Currently unavailable

281

Murray 712072

NUT, PUSH ON

$

$

Not available

282

Murray 710285

PUSH ON CAP
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

283

Murray 711459MA

SPRING, EXTENSION

$9.49

$

Usually ships in 2-12 days

0

284

Murray 71246-898

COVER, REAR

$6.99

$

Usually ships in 2-12 days

0

287

$1.99

$

Usually ships in 2-12 days

0

288

Murray 711542MA

PIN, CLEVIS

$5.99

$

Usually ships in 2-12 days

0

300

Murray 672802

TIRE & RIM

$

$

Not available

301

Murray 672440MA

WHEEL, DRIVE

$

$

Not available

302

Murray 710252

WASHER, FLAT
(Superseded to 711573)

$52.99

$

Usually ships in 2-12 days

0

303

$10.99

$

Usually ships in 2-12 days

0

304

Murray 672445MA

HUB CAP

$5.49

$

Usually ships in 2-12 days

0

305

Murray 710258

SPRING WASHER

$10.99

$

Usually ships in 2-12 days

0

310

Murray 672805MA

HUB CAP
(Superseded to 672446MA)

$5.99

$

Usually ships in 2-12 days

0

590

Murray 672046MA

DEFLECTOR, CHUTE

$

$

Not available

591

Murray 672045MA

COVER, MULCH

$17.99

$

Usually ships in 2-12 days

0

592

Murray 166X38MA

SPRING, TORSION

$4.99

$

In Stock, only 2 left!

0

593

Murray 340827

ROD, PIVOT

$

$

Not available

594

Murray 710285

CAP, PUSH ON
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

595

Murray 712012

SEAL, FOAM

$

$

Not available

620

Murray 071250MA

PLUG, MULCHER

$97.99

$

Usually ships in 2-12 days

0
