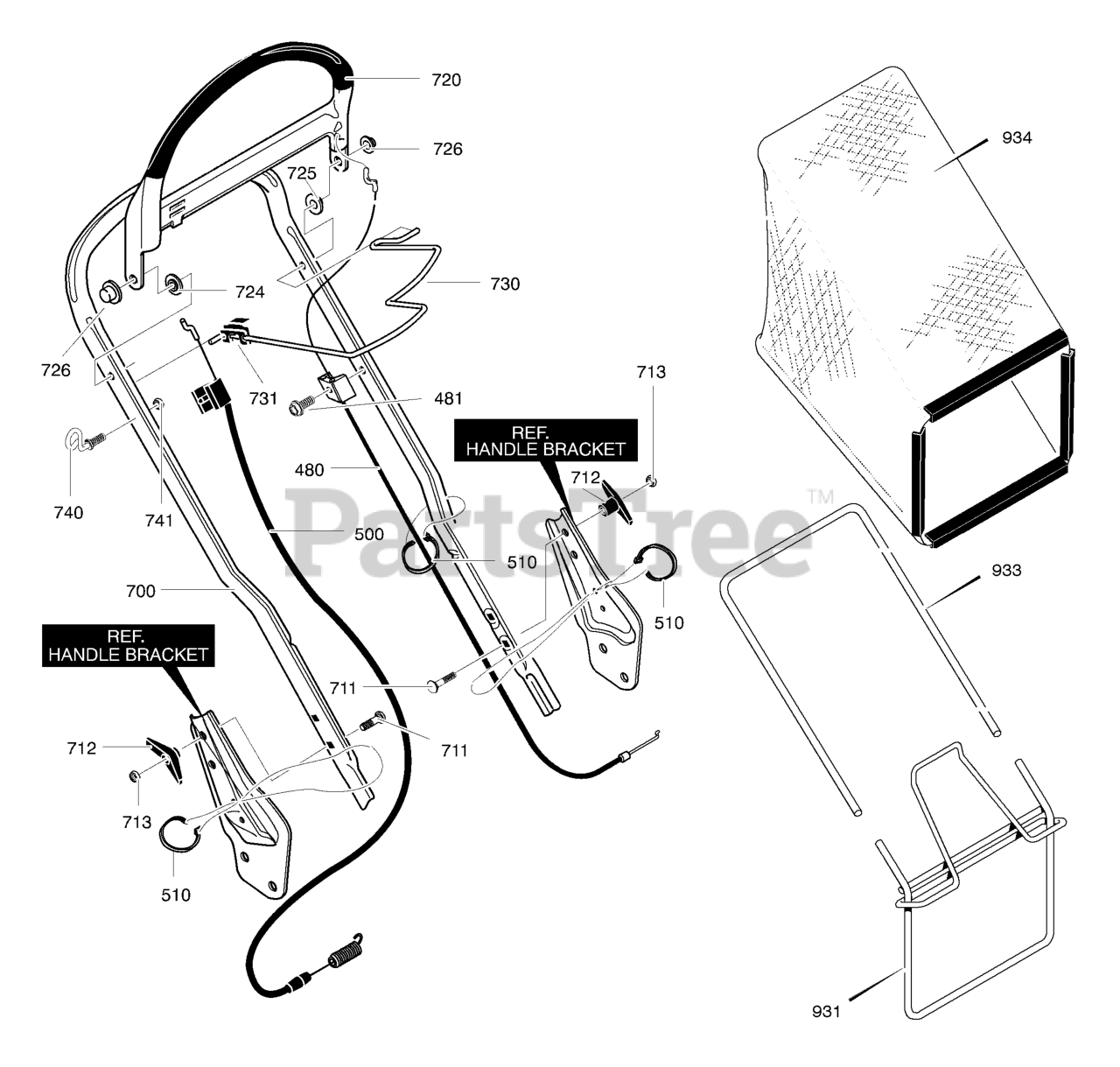

219931x683A - Stanley 21" Walk-Behind Mower (2001) Handle And Grass Bag Assembly Parts Diagram

21" Walk-Behind Mower

Handle And Grass Bag Assembly Parts Diagram

  • Title

480

Murray 672864MA

CABLE, STOP

$37.99

$

Usually ships in 2-12 days

0

481

Murray 710269

SCREW, 10-16X.75

$

$

Not available

500

Murray 1101428MA

CABLE, DRIVE

$41.99

$

Usually ships in 2-12 days

0

510

Murray 712267

TIE, CABLE

$3.99

$

Usually ships in 2-12 days

0

700

Murray 1101429MA

HANDLE

$78.99

$

Usually ships in 2-12 days

0

711

Murray 710175

BOLT, 5/16-18X2.00

$5.99

$

Usually ships in 2-12 days

0

712

Murray 57171

KNOB, T NUT
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 9

0

713

Murray 120376

NUT, 5/16-18

$

$

Not available

720

Murray 1101123MA

LEVER, STOP FLAT

$53.99

$

Usually ships in 2-12 days

0

724

Murray 672734MA

SPACER

$4.49

$

Usually ships in 2-12 days

0

725

Murray 672734MA

SPACER

$4.49

$

Usually ships in 2-12 days

0

726

Murray 028X74

NUT, PUSH ON

$

$

Currently unavailable

730

Murray 1101425-884

LEVER, DRIVE WIRE

$

$

Currently unavailable

731

Murray 673628

BRACKET, STOP

$

$

Currently unavailable

740

Murray 672510MA

GUIDE, ROPE 1/4-20

$5.99

$

Usually ships in 2-12 days

0

741

Murray 710203

NUT, 1/4-20

$19.99

$

Usually ships in 2-12 days

0

931

Murray 1101426

BAG, FRAME ASSY.

$

$

Currently unavailable

933

Murray 672294

FRAME, CATCHER BAG

$

$

Not available

934

Murray 1101386

BAG, CATCHER

$74.99

$

Usually ships in 2-12 days

0
