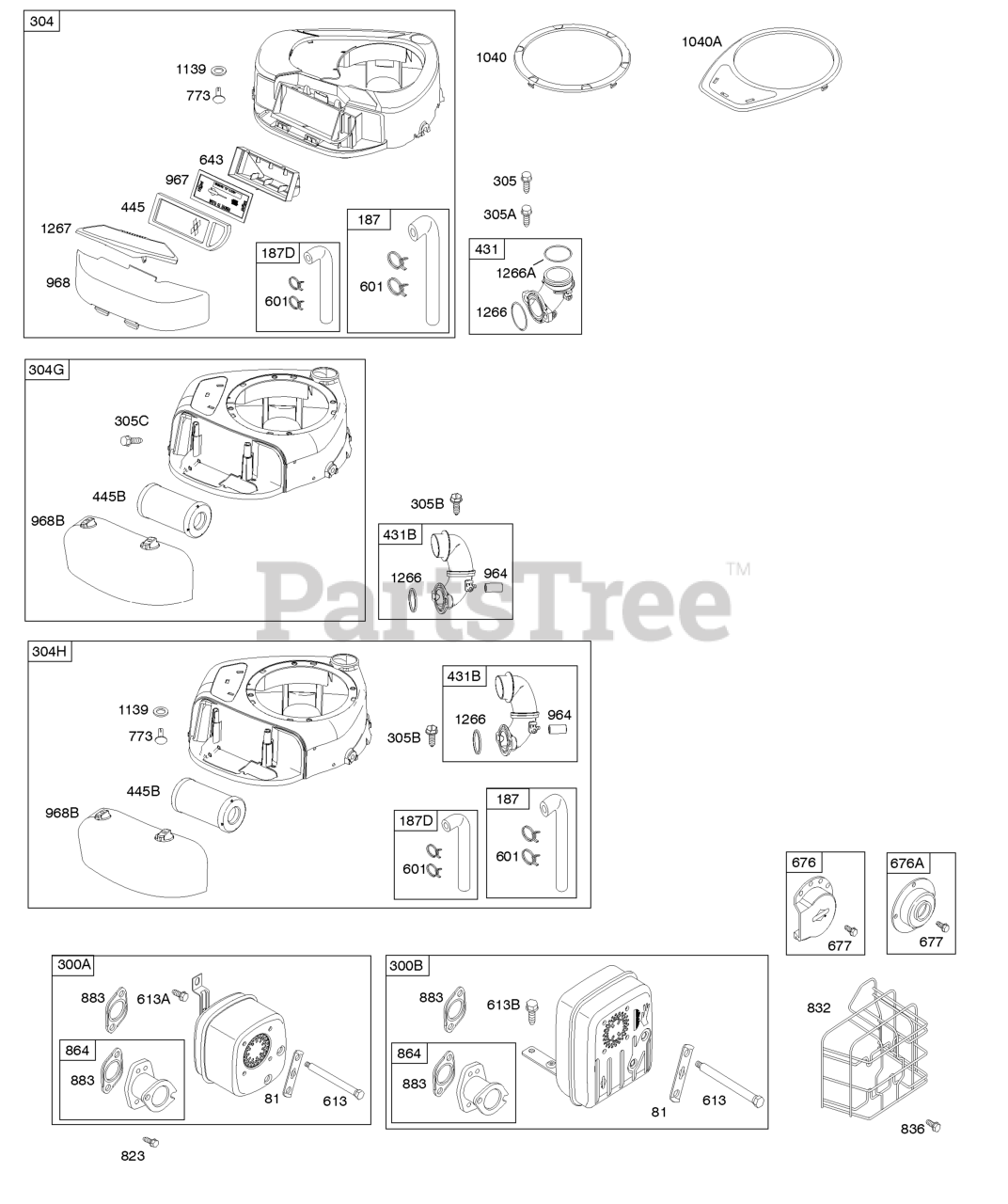

219907-0170-B1 - Briggs & Stratton Vertical Engine Air Cleaner, Blower Housing, Exhaust System Parts Diagram

Vertical Engine

Air Cleaner, Blower Housing, Exhaust System Parts Diagram

  • Title

81

Briggs & Stratton 691178

LOCK, Muffler Screw

$5.49

$

In Stock, Qty 9

0

187

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 1 left!

0

304

Housing-Blower

Note: (Compatible With Panel Style Filter. No Longer Available. See Reference304H For Replacement Blower Housing Kit.)

$

$

Not available

304G

Briggs & Stratton 591641

HOUSING, Blower

Note: (Black-Compatible With Canister Style Filter)

$175.99

$

Usually ships in 2-12 days

0

304H

Briggs & Stratton 591906

Housing-Blower

$166.99

$

In Stock, only 1 left!

0

305

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: (Blower Housing) (Blower Housing)(Hex Washer, Shoulder Head)

$3.99

$

In Stock, only 2 left!

0

305A

Briggs & Stratton 793376

Screw
(Superseded to 799370)

Note: (Blower Housing) (Used On Non-Grommet Style Blower Housings)

$3.99

$

In Stock, only 4 left!

0

305C

Briggs & Stratton 799370

SCREW

Note: (Blower Housing) (Used On Grommet Style Blower Housings)

$3.99

$

In Stock, only 4 left!

0

305B

Briggs & Stratton 795891

SCREW

Note: (Blower Housing) (Blower Housing To Intake Elbow)

$3.99

$

In Stock, Qty 7

0

431

Briggs & Stratton 697122

Elbow-Intake

$24.99

$

In Stock, only 1 left!

0

445

Briggs & Stratton 797007

Filter-A/C Cartridge
(Superseded to 794421)

Note: (Flat Panel Air Cleaner)

$16.99

$

In Stock, Qty 20+

0

445B

Briggs & Stratton 591583

FILTER, A/C Cartridge

$19.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 17

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691416

SCREW

Note: (Muffler)

$11.99

$

In Stock, Qty 14

0

613A

Briggs & Stratton 691678

SCREW

Note: (Muffler)

$4.99

$

Usually ships in 2-12 days

0

613B

Briggs & Stratton 690297

Screw

Note: (Muffler)

$3.49

$

In Stock, Qty 12

0

643

Briggs & Stratton 697155

Retainer-Air Filter

$11.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 795036

DEFLECTOR, Muffler

Note: (Side Out)

$8.49

$

In Stock, only 1 left!

0

676A

Briggs & Stratton 396903

DEFLECTOR, Muffler

Note: (Direct Out)

$14.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 8

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

823

Briggs & Stratton 698941

SCREW

Note: (Muffler Adapter)

$6.99

$

In Stock, only 3 left!

0

832

Briggs & Stratton 790244

Guard-Muffler

$55.99

$

In Stock, only 2 left!

0

836

Briggs & Stratton 690367

Screw

Note: (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 796002

ADAPTER, Muffler

Note: (2 1/4" Long)

$43.99

$

In Stock, Qty 6

0

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

964

Briggs & Stratton 799159

CAP, Connector

Note: (EVAP)

$8.49

$

In Stock, only 1 left!

0

967

Briggs & Stratton 697292

Filter-Pre Cleaner

$5.99

$

In Stock, Qty 20+

0

968

Briggs & Stratton 697420

Cover-Air Cleaner

Note: (Black-Compatible With Panel Style Filter)

$41.99

$

In Stock, only 2 left!

0

968B

Briggs & Stratton 591646

COVER, Air Cleaner

Note: (Black-Compatible With Canister Style Filter)

$33.99

$

In Stock, Qty 13

0

1040

Briggs & Stratton 698368

PLATE, Trim

$14.99

$

In Stock, only 1 left!

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, Qty 19

0

1267

Briggs & Stratton 697419

Latch-Blower Housing

Note: (Black)

$17.99

$

In Stock, only 1 left!

0
