218950x92B - Briggs & Stratton 21" Walk-Behind Mower (2004) Housing & Drive System Parts Diagram

21" Walk-Behind Mower

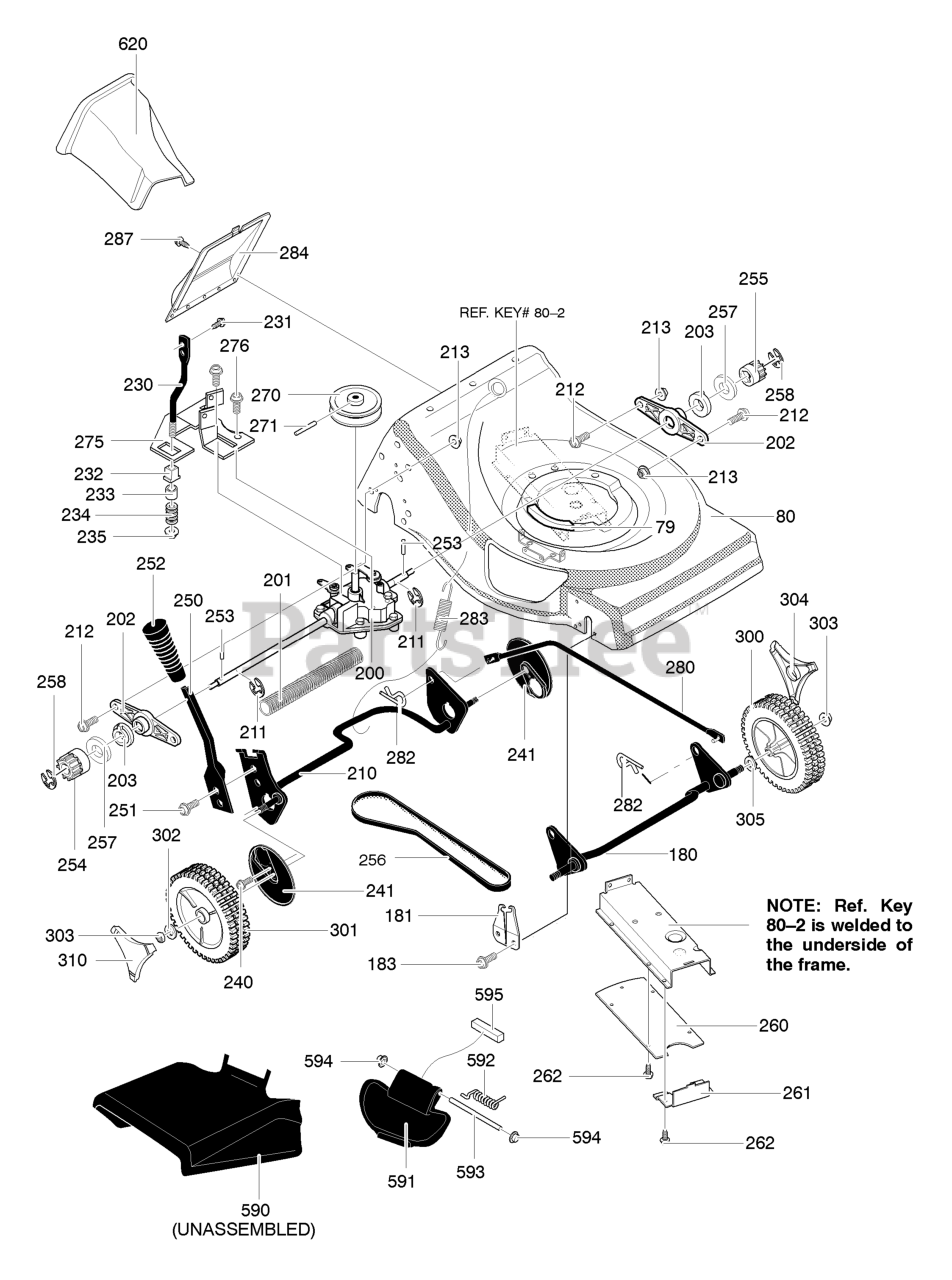

Housing & Drive System Parts Diagram

  • Title
79

Murray 712012

SEAL, FOAM

$

$

Not available

80

Murray 071762E201MA

ASSY, HOUSING

$195.99

$

Usually ships in 2-12 days

0

180

Murray 071152E201MA

CROSSBAR, FRONT

$40.99

$

Usually ships in 2-12 days

0

181

Murray 672279MA

BUSHING

$4.49

$

Usually ships in 2-12 days

0

183

$3.49

$

Usually ships in 2-12 days

0

200

Murray 672270MA

TRANSMISSION, TUFF TORQ

$267.99

$

Usually ships in 2-12 days

0

201

Murray 043649

SHIELD, AXLE

$5.99

$

Usually ships in 2-12 days

0

202

Murray 071411MA

SUPPORT, AXLE

$9.49

$

Usually ships in 2-12 days

0

203

Murray 043788MA

BEARING, LIFTER

$4.99

$

In Stock, only 2 left!

0

210

Murray 672277E201MA

ASSY, CROSSBAR

$

$

Not available

211

$3.99

$

Usually ships in 2-12 days

0

212

Murray 001X45MA

SCREW
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

213

Murray 015X79MA

NUT
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

230

Murray 071481 Z

SUPPORT, SPRING

$

$

Currently unavailable

231

Murray 26X217MA

SCREW
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

232

Murray 071480MA

BUSHING

$3.99

$

Usually ships in 2-12 days

0

233

$12.99

$

Usually ships in 2-12 days

0

234

$3.99

$

Usually ships in 2-12 days

0

235

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

240

$3.49

$

Usually ships in 2-12 days

0

241

Murray 643616MA

DUST COVER

$6.49

$

Usually ships in 2-12 days

0

250

Murray 672278MA

LEVER, SPRING

$12.99

$

Usually ships in 2-12 days

0

251

$4.99

$

In Stock, only 1 left!

0

252

Murray 071297MA

GRIP, HEIGHT ADJ

$6.49

$

In Stock, only 1 left!

0

253

Murray 043629MA

PIN, DRIVE

$5.99

$

In Stock, only 3 left!

0

254

Murray 671904MA

PINION RIGHT

$

$

Not available

255

Murray 671903MA

GEAR, PINION LEFT

$21.99

$

Usually ships in 2-12 days

0

256

Murray 672271MA

BELT, V

$22.99

$

Usually ships in 2-12 days

0

257

Murray 17X186MA

WASHER, FLAT

$

$

Not available

258

$3.99

$

Usually ships in 2-12 days

0

260

Murray 43770E701MA

COVER, BELT GUARD

$35.99

$

Usually ships in 2-12 days

0

261

Murray 71239E701MA

COVER, FRONT BELT
(Superseded to 7300724YP)

$10.99

$

Usually ships in 2-12 days

0

262

$4.49

$

In Stock, only 4 left!

0

270

$17.99

$

Usually ships in 2-12 days

0

271

Murray 97129MA

PIN, SPRING

$3.99

$

Usually ships in 2-12 days

0

275

Murray 672819 Z

BRACKET, CABLE

$

$

Currently unavailable

276

Murray 0025X2MA

SCREW
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

280

Murray 1102055E201

LINK, LIFTER ASSY

$30.99

$

Usually ships in 2-12 days

0

282

Murray 0031X9MA

PIN, HAIR

$3.49

$

Usually ships in 2-12 days

0

283

Murray 711459MA

SPRING, EXTENSION

$9.49

$

Usually ships in 2-12 days

0

284

Murray 071246E201

COVER, REAR

$

$

Not available

287

$4.99

$

In Stock, only 1 left!

0

300

Murray 1101114MA

TIRE & RIM, -FRONT
(Superseded to 1101433MA)

$39.99

$

In Stock, only 3 left!

0

301

Murray 672440MA

WHEEL, DRIVE - RR

$

$

Not available

302

Murray 017X169

WASHER, FLAT

$4.49

$

In Stock, only 2 left!

0

303

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

304

Murray 672446

HUB CAP

$

$

Not available

305

Murray 017X92

WASHER

$

$

Currently unavailable

310

Murray 672805MA

HUB CAP
(Superseded to 672446MA)

$5.99

$

Usually ships in 2-12 days

0

590

Murray 071770MA

DEFLECTOR, CHUTE

$21.99

$

In Stock, only 1 left!

0

591

Murray 071769

COVER, MULCH

$

$

Currently unavailable

592

Murray 166X38MA

SPRING, TORSION

$4.99

$

In Stock, only 2 left!

0

593

Murray 215X16 Z

ROD, PIVOT

$

$

Currently unavailable

594

Murray 028X42MA

CAP, PUSH ON

$3.99

$

Usually ships in 2-12 days

0

595

Murray 712012

SEAL, FOAM

$

$

Not available

620

Murray 071250MA

PLUG, MULCHER

$97.99

$

Usually ships in 2-12 days

0
