218950x92B - Briggs & Stratton 21" Walk-Behind Mower (2004) Engine Mount Parts Diagram

21" Walk-Behind Mower

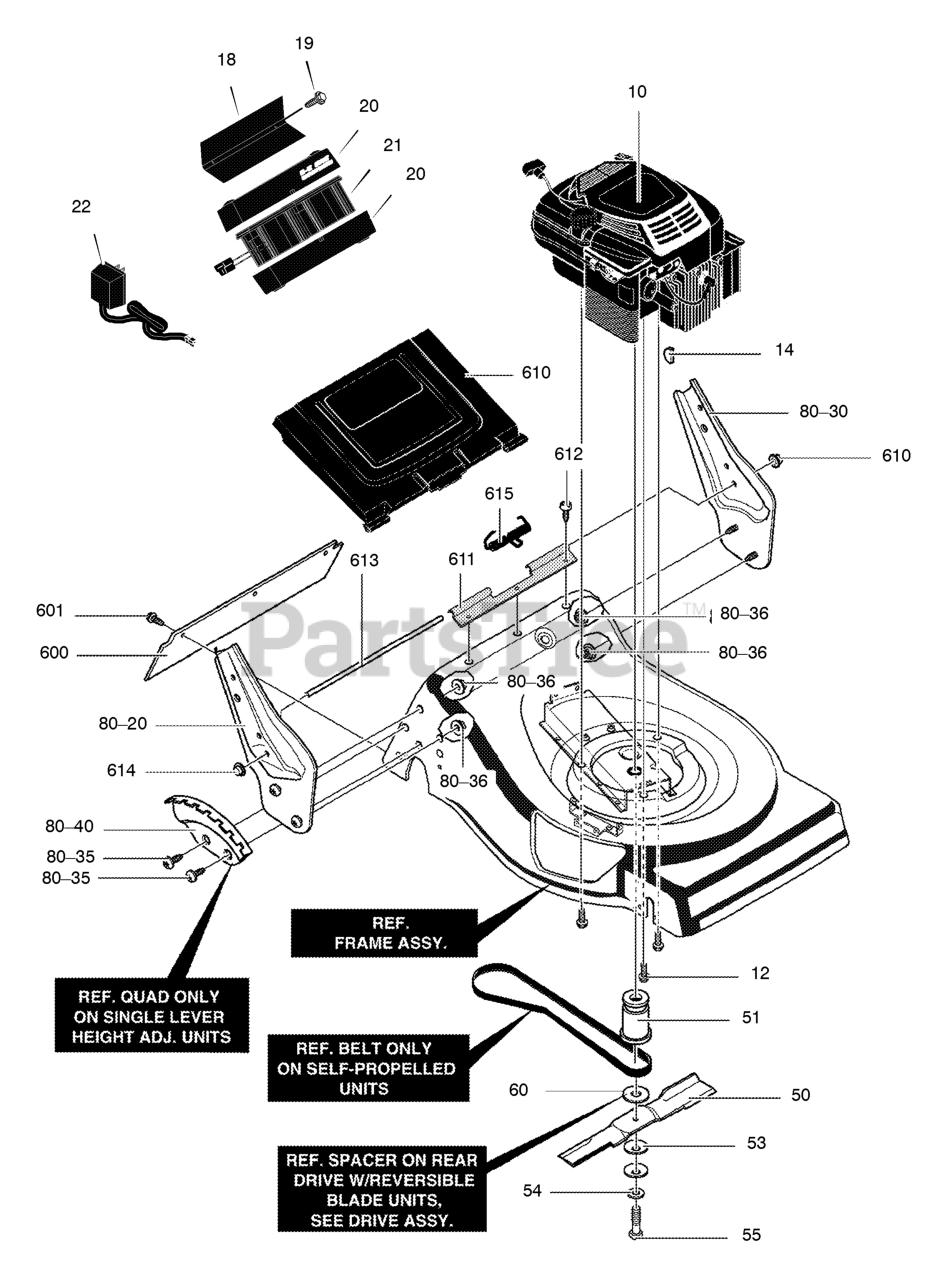

Engine Mount Parts Diagram

  • Title
10

Engine *

$

$

Not available

12

$5.49

$

Usually ships in 2-12 days

0

14

Murray 020062MA

WOODRUFF KEY 505
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

18

Murray 671959E701

BRACKET, BATTERY

Note: (For electric start models.)

$

$

Not available

19

Murray 26X220MA

SCREW *

Note: (Included with Ref. No. 20)

$3.49

$

Usually ships in 2-12 days

0

20

Murray 776014MA

CASE, BATTERY

Note: (For electric start models.)

$55.99

$

Usually ships in 2-12 days

0

21

Murray 672182

BATTERY *

Note: (Included with Ref. No. 20)

$

$

Currently unavailable

22

Murray 671992MA

CHARGER, BATTERY

Note: (For electric start models.)

$54.99

$

In Stock, only 1 left!

0

50

Murray 672089E701A

BLADE, 21" REVERSIBLE

$

$

Currently unavailable

51

Murray 043603MA

ADAPTER, BLADE 21"

$16.99

$

Usually ships in 2-12 days

0

53

Murray 17X137MA

WASHER, BEVELLE

$5.49

$

Usually ships in 2-12 days

0

54

$4.49

$

Usually ships in 2-12 days

0

55

Murray 01X148MA

SCREW, 3/8-24 x 2.00

$3.99

$

Usually ships in 2-12 days

0

60

$

$

Not available

80-20

Murray 627845E201

BRACKET, HANDLE RH

$

$

Currently unavailable

80-30

Murray 672844E201MA

BRACKET, HANDLE LH

$

$

Not available

80-35

Murray 26X275MA

SCREW, 5/16-18 x 0.63

$5.49

$

Usually ships in 2-12 days

0

80-36

Murray 015X79MA

NUT, 5/16-16
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

80-40

Murray 071569E201MA

INDEX, HEIGHT ADJ
(Superseded to 071569E701MA)

$119.99

$

Usually ships in 2-12 days

0

256

Murray 672271MA

BELT, V

$22.99

$

Usually ships in 2-12 days

0

600

Murray 043640

DEFLECTOR, REAR

$

$

Not available

601

Murray 26X245MA

SCREW, 10-16X.50

$4.49

$

In Stock, Qty 6

0

610

Murray 071409

DOOR, REAR 21

$66.99

$

Usually ships in 2-12 days

0

611

$7.99

$

Usually ships in 2-12 days

0

612

Murray 26X259MA

SCREW, 10-16X.50

$4.49

$

In Stock, only 4 left!

0

613

Murray 672282 Z

ROD, PIVOT

$

$

Currently unavailable

614

Murray 028X42MA

CAP, PUSH ON

$3.99

$

Usually ships in 2-12 days

0

615

Murray 166X33MA

SPRING, TORSION

$6.99

$

In Stock, only 1 left!

0

--

Murray F-040458L

OWNER'S MANUAL

$

$

Currently unavailable
