21876x50C - Murray 21" Walk-Behind Mower (2000) Engine Mount Parts Diagram

21" Walk-Behind Mower

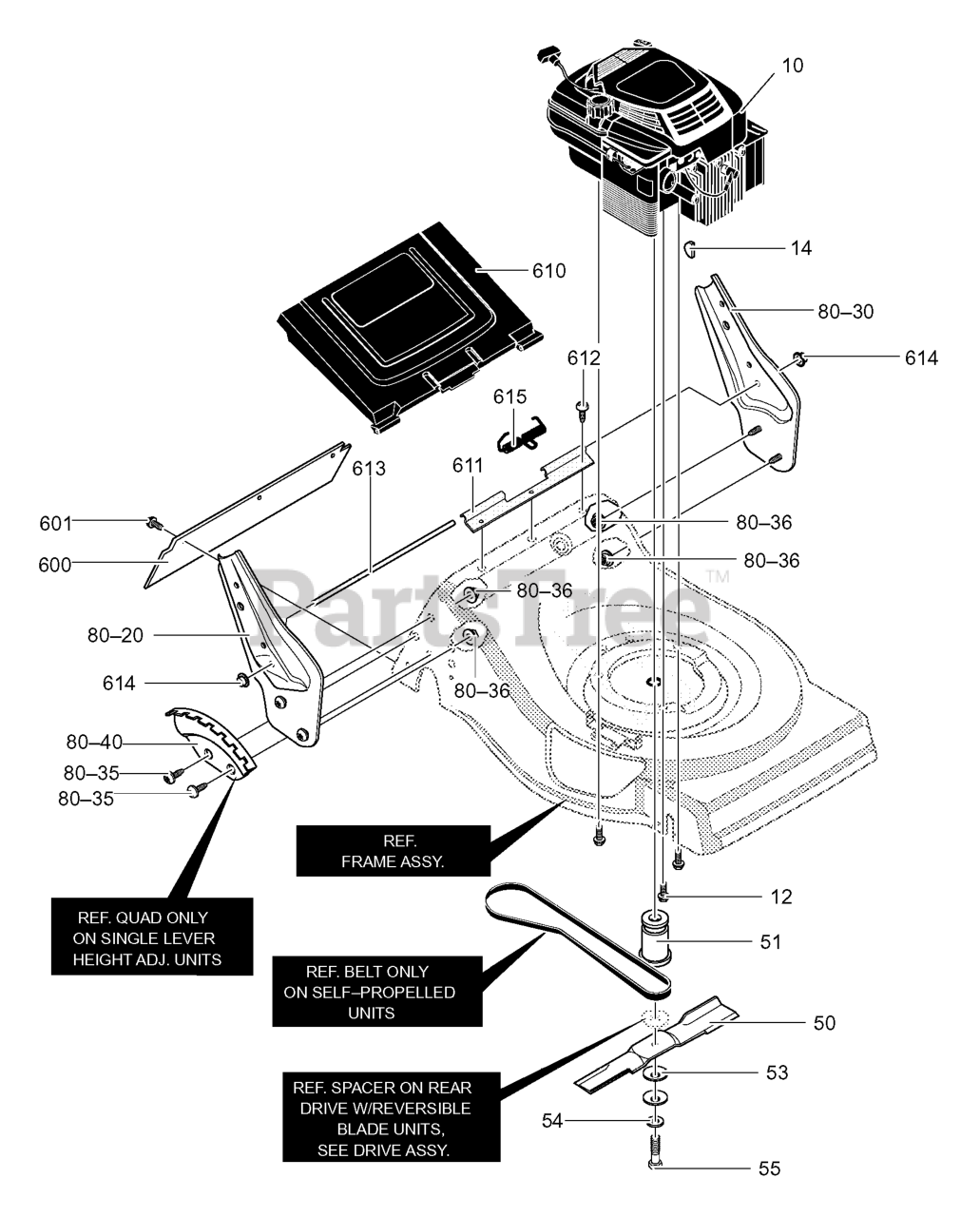

Engine Mount Parts Diagram

  • Title

10

Engine, 6HP

$

$

Not available

12

Murray 47792MA

Screw, 3/8-16 x 1.00

$3.99

$

Usually ships in 2-12 days

0

14

Murray 2125

Key, Woodruff 505

$1.49

$

Usually ships in 2-12 days

0

50

Murray 71877

Blade, 21 Inch

$

$

Currently unavailable

51

Murray 671058MA

Adapter, Blade

$17.99

$

Usually ships in 2-12 days

0

53

Murray 710210

Washer

$40.99

$

Usually ships in 2-12 days

0

54

Murray 710207

Washer, Flat

$1.49

$

Usually ships in 2-12 days

0

55

Murray 710163

Screw, 3/8-24 x 1.50
(Superseded to 710074)

$3.99

$

Usually ships in 2-12 days

0

80-20

Murray 672766

Bracket, Handle RH

$

$

Currently unavailable

80-30

Murray 672767

Bracket, Handle LH

$

$

Currently unavailable

80-35

Murray 710277

Screw, 5/16-18 x 0.63

$18.99

$

Usually ships in 2-12 days

0

80-36

Murray 710204

Nut, 5/16-18

$5.49

$

Usually ships in 2-12 days

0

80-40

Murray 672276

Quadrant, Height Adj.

$

$

Currently unavailable

600

Murray 043640

Deflector, Rear

$

$

Not available

601

Murray 710271

Screw, 3/8-24 x 1.50

$

$

Currently unavailable

610

Murray 071833

Door, Rear

$

$

Not available

611

Murray 672049

Spacer, RR Door

$1.99

$

Usually ships in 2-12 days

0

612

Murray 710273

Screw, 10-16x.50

$

$

Currently unavailable

613

Murray 672282 Z

Rod, Pivot RR Door

$

$

Currently unavailable

614

Murray 710285

Cap, Push On
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

615

Murray 340823

Spring, Torsion

$

$

Currently unavailable
