21876 T - Toro 76cm eTimeMaster 60V Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

76cm eTimeMaster 60V Walk-Behind Mower

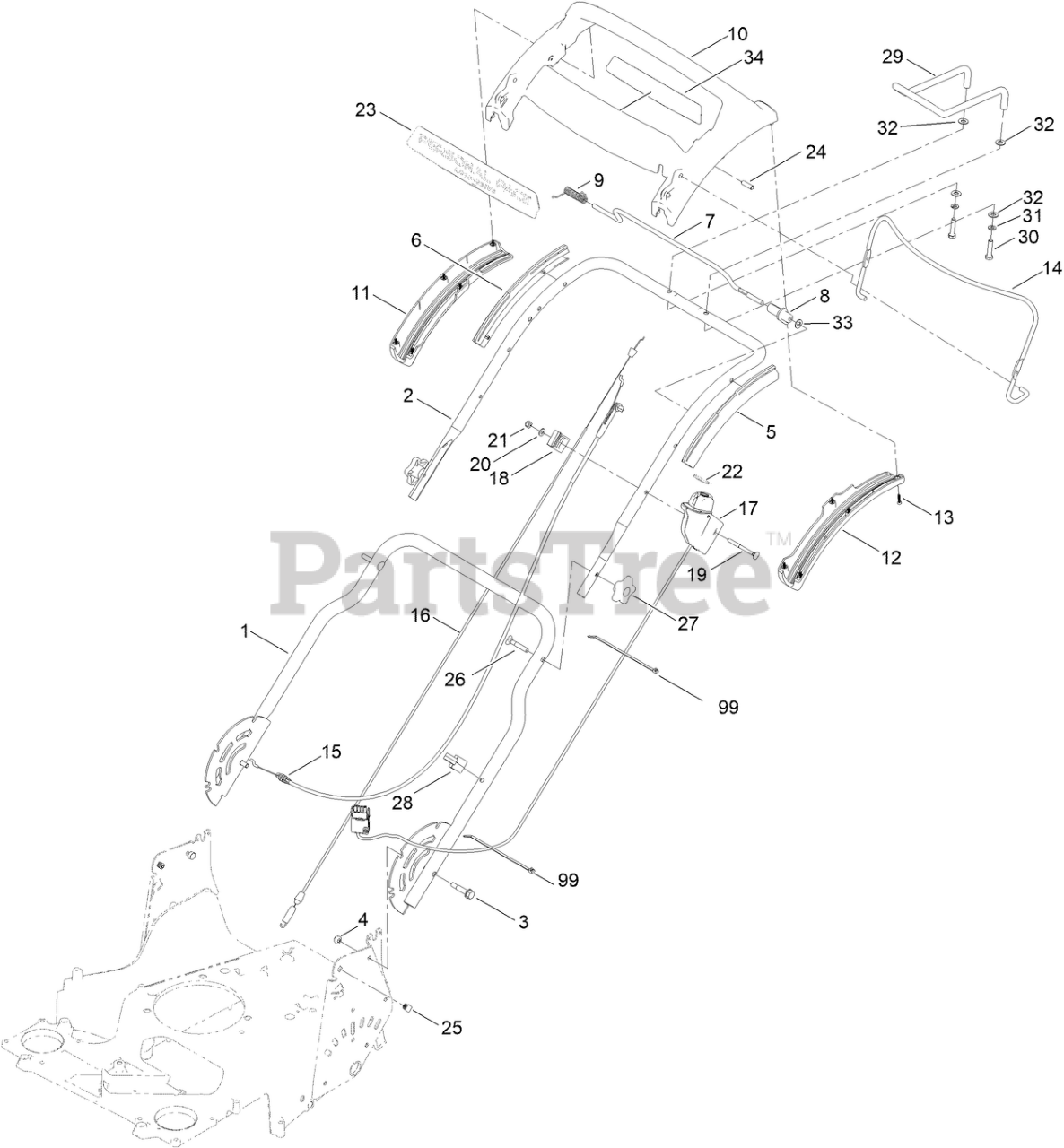

Handle Assembly Parts Diagram

  • Title
1

Toro 145-4021-05

HANDLE-LOWER, ASM

$112.99

$

Usually ships in 3-6 days

0

2

Toro 145-4004-05

HANDLE-UPPER

$56.99

$

Usually ships in 3-6 days

0

3

Toro 139-1694

BOLT-SHOULDER, HHF

$3.49

$

Usually ships in 3-6 days

0

4

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

5

Toro 140-2367

GUIDE-CURVED, LH (RWD)

$5.99

$

In Stock, only 1 left!

0

6

Toro 140-2366

GUIDE-CURVED, RH (RWD)

$5.99

$

In Stock, only 1 left!

0

7

Toro 139-5464

ROD-CONTROL, TRACTION

$7.49

$

In Stock, only 1 left!

0

8

Toro 139-6554

LEVER-TRACTION, RWD

$2.99

$

In Stock, only 2 left!

0

9

Toro 140-4194

SPRING-TORSION

$1.99

$

In Stock, Qty 20+

0

10

Toro 139-6569

HANDLE-PERSONAL PACE, CURVED

$31.99

$

In Stock, Qty 11

0

11

Toro 139-6567

BOTTOM-HANDLE, RH

$3.99

$

In Stock, only 1 left!

0

12

Toro 139-6568

BOTTOM-HANDLE, LH

$3.99

$

In Stock, only 1 left!

0

13

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14

Toro 145-5879-03

BAIL-BRAKE

$14.99

$

In Stock, Qty 20+

0

15

Toro 139-6594

CABLE-BRAKE, PP BS

$15.99

$

In Stock, Qty 20+

0

16

Toro 145-4007

CABLE-TRACTION

$19.99

$

Usually ships in 3-6 days

0

17

Toro 144-3179

STARTER SWITCH ASM

$41.99

$

Usually ships in 3-6 days

0

18

Toro 140-4128

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

19

Toro 92-2267

SCREW-HANDLE

$6.49

$

In Stock, only 4 left!

0

20

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

21

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

22

Toro 145-4009

DECAL-CONTROLS

$2.99

$

Usually ships in 0 days

0

23

Toro 145-5601

DECAL-HANDLE, PP

$7.99

$

Usually ships in 3-6 days

0

24

Toro 139-6577

PIN-HANDLE, PP

$1.49

$

In Stock, Qty 10

0

25

Toro 132-4516

PLUG-SQUARE

$1.49

$

Usually ships in 3-6 days

0

26

Toro 137-3107

SCREW-HANDLE

$1.99

$

In Stock, Qty 13

0

27

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 13

0

28

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

29

Toro 144-0249

HANDLE-ASSIST, STEEL

$

$

Currently unavailable

30

Toro 137-3051

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

31

Toro 136-8682

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

32

Toro 107-0279

WASHER

$1.99

$

Usually ships in 3-6 days

0

33

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

34

Toro 140-1324

DECAL-CONTROLS (60V, START)

$7.49

$

Usually ships in 3-6 days

0

99

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0
