2187520 (7800946-01) - Snapper 21" Walk-Behind Mower, 8.75hp Handle Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

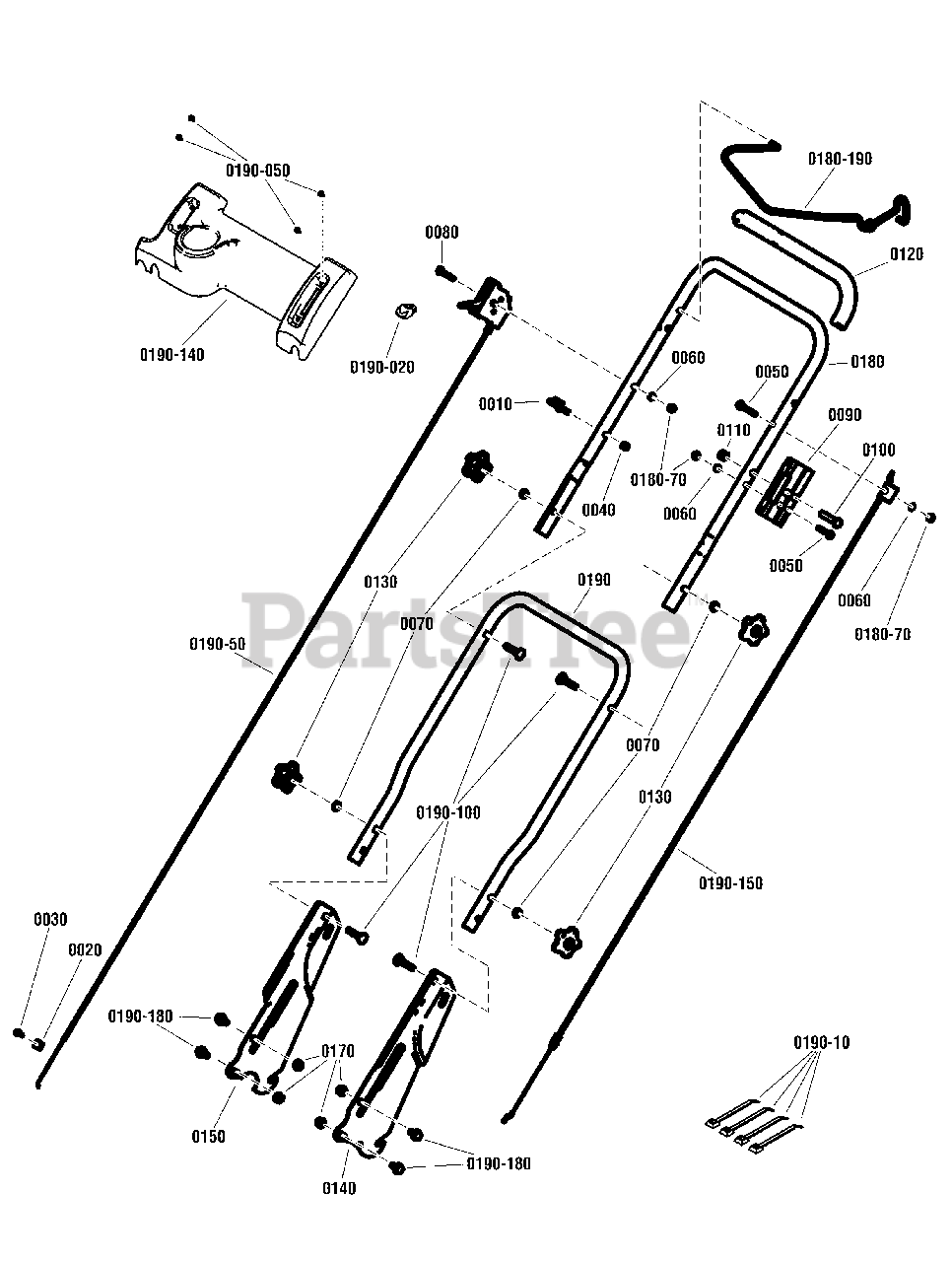

Handle Group Parts Diagram

  • Title

0010

Snapper 7028488MA

GUIDE, 1/4-20, Rope, CL/ZC

$6.49

$

In Stock, only 1 left!

0

0020

Snapper 690798

CLAMP, Casing

$5.49

$

In Stock, only 1 left!

0

0030

Snapper 704324

SCREW, #10-32 X .615, Hex Head Cap Slotted, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0040

Snapper 703232

NUT, 1/4-20, Nylock, GR A, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 703234

SCREW, 1/4-20 X 1.5, Hex Head Cap, GR5, ZC/CL

$4.49

$

In Stock, only 4 left!

0

0060

Snapper 703462

WASHER, 1/4 Internal Tooth Lock, YZ

$4.49

$

In Stock, Qty 6

0

0070

Snapper 703587

WASHER, 5/16, Internal Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 703588

SCREW, 1/4-20 X 1.75, GR 5 Zinc/Clear

$3.99

$

In Stock, only 1 left!

0

0090

Snapper 7074003YP

BRACKET, Shift, Black Zinc

$6.99

$

Usually ships in 2-12 days

0

0100

Snapper 703589

SCREW, 3/8-16 x 2, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0110

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 2 left!

0

0120

Snapper 7023810YP

FOAM GRIP, 18.75"

$8.49

$

Usually ships in 2-12 days

0

0130

Snapper 7105085YP

KNOB, 5/16-18, Handle, Fluted 5 Prong, Black

$3.99

$

In Stock, Qty 20+

0

0140

Snapper 7033985AYP

HANDLE, Lower, ADJ, LH

$43.99

$

Usually ships in 2-12 days

0

0150

Snapper 7033986AYP

HANDLE, Lower, ADJ, RH

$36.99

$

In Stock, only 4 left!

0

0170

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0180

Snapper 7106258AYP

HANDLE, Upper, 17.53" Wide, Black

$

$

Not available

0180-70

Snapper 703127

NUT, 1/4-20, G5 Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0180-190

Snapper 7106255AYP

BAIL, OPC, Over-the-Top, Black

$47.99

$

Usually ships in 2-12 days

0

0190

Snapper 7106232AYP

HANDLE, Middle, Black

$

$

Not available

0190-10

Snapper 7024641YP

WIRE TIE, 5.5" L

$5.99

$

In Stock, only 1 left!

0

0190-50

Snapper 7102594YP

CONTROL, Throttle, W14, 63.12" L

$41.99

$

Usually ships in 2-12 days

0

0190-020

Snapper 7075308YP

KNOB, Throttle, Red

$11.99

$

In Stock, only 2 left!

0

0190-050

Snapper 703961

SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0190-100

Snapper 703059

BOLT, 5/16-18 X 2.00 Conical Head, SN ZC/CL

$4.49

$

In Stock, Qty 12

0

0190-140

Snapper 7106280YP

CONTROL PANEL, Push W/Throttle

$91.99

$

Usually ships in 2-12 days

0

0190-150

Snapper 7106257YP

CABLE, OPC, 50.56" Long, Z Ends, Snap-in, for Over-the-Top Bail

$24.99

$

In Stock, only 1 left!

0

0190-180

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 10

0
