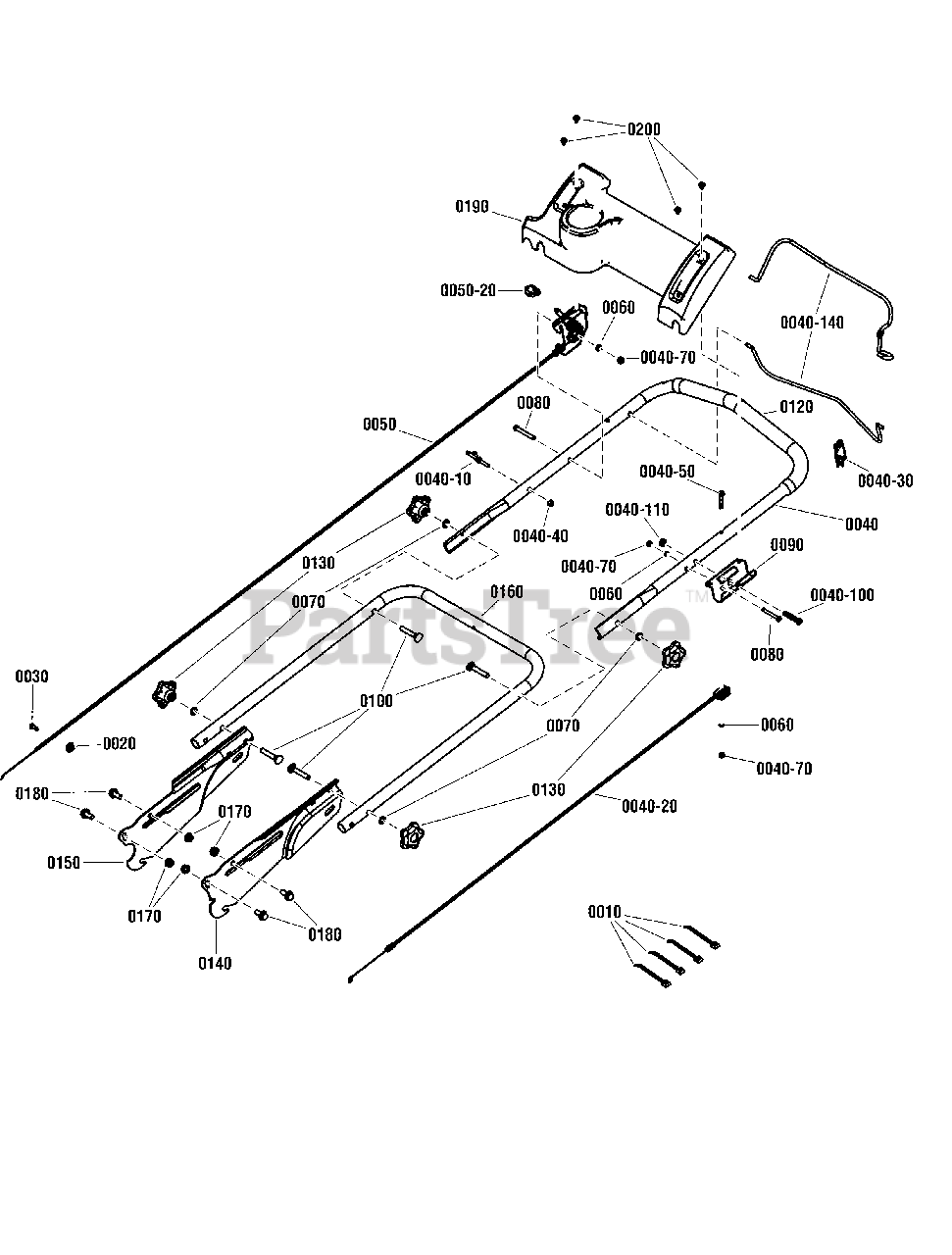

2187520 (7800946-00) - Snapper 21" Walk-Behind Mower, 8.75hp Handle Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

Handle Group Parts Diagram

  • Title

0010

Snapper 7024641YP

WIRE TIE, 5.5" L

$5.99

$

In Stock, only 1 left!

0

0020

Snapper 690798

CLAMP, Casing

$5.49

$

In Stock, only 1 left!

0

0030

Snapper 704324

SCREW, #10-32 X .615, Hex Head Cap Slotted, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0040

Snapper 7106258AYP

HANDLE, Upper

$

$

Not available

0040-10

Snapper 7028488MA

GUIDE, 1/4-20, Rope, CL/ZC

$6.49

$

In Stock, only 1 left!

0

0040-20

Snapper 7102593YP

CABLE, Zone Control, W14, 52.661" L

Note: (Used on 7800946-00)

$21.99

$

In Stock, Qty 15

0

0040-20

Snapper 7106257YP

CABLE, Zone Control, W14, 50.55" L, Over the Top

Note: (Used on 7800946-01)

$24.99

$

In Stock, only 1 left!

0

0040-30

Snapper 7034872YP

CLIP, Zone Control

Note: (Used on 7800946-00)

$5.99

$

In Stock, Qty 5

0

0040-40

Snapper 703232

NUT, 1/4-20, Nylock, GR A, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0040-50

Snapper 703234

SCREW, 1/4-20 X 1.5, Hex Head Cap, GR5, ZC/CL

$4.49

$

In Stock, only 4 left!

0

0040-70

Snapper 703127

NUT, 1/4-20, G5 Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0040-100

Snapper 703589

CAPSCREW, 3/8-16 x 2, G5, Hex Head

$4.49

$

In Stock, only 2 left!

0

0040-110

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 2 left!

0

0040-140

Snapper 7074418AYP

BAIL, OPC Control (16.6" Wide), Black

Note: (Used on 7800946-00)

$34.99

$

In Stock, Qty 7

0

0040-140

Snapper 7106255AYP

BAIL, OPC, Control, Over The Top, Black

Note: (Used on 7800946-01)

$47.99

$

Usually ships in 2-12 days

0

0050

Snapper 7102594YP

CONTROL, Throttle, W14, 63.12" L

$41.99

$

Usually ships in 2-12 days

0

0050-20

Snapper 7075308YP

KNOB, Throttle, Red

$11.99

$

In Stock, only 2 left!

0

0060

Snapper 703462

WASHER, 1/4 Internal Tooth Lock, YZ

$4.49

$

In Stock, Qty 6

0

0070

Snapper 7090391SM

WASHER, 5/16, Internal Lock, Zinc/Clear
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 703163

SCREW, 1/4-20 X 2.0, Hex Head Cap, GR5
(Superseded to 5025010X16FS)

Note: (Used on 7800946-00)

$2.99

$

Usually ships in 2-12 days

0

0080

Snapper 7091003YP

CAPSCREW, 1/4-20 x 1-3/4, G5, Hex Head
(Superseded to 703588)

Note: (Used on 7800946-01)

$3.99

$

In Stock, only 1 left!

0

0090

Snapper 7074003YP

BRACKET, Shift, Black Zinc

$6.99

$

Usually ships in 2-12 days

0

0100

Snapper 703059

BOLT, 5/16-18 X 2.00 Conical Head, SN ZC/CL

$4.49

$

In Stock, Qty 10

0

0120

Snapper 7023810YP

FOAM GRIP, 18.75"

$8.49

$

Usually ships in 2-12 days

0

0130

Snapper 7105085YP

KNOB, 5/16-18, Handle, Fluted 5 Prong, Black

$3.99

$

In Stock, Qty 20+

0

0140

Snapper 7033985AYP

HANDLE, Lower, ADJ, LH

$43.99

$

Usually ships in 2-12 days

0

0150

Snapper 7033986AYP

HANDLE, Lower, ADJ, RH

$36.99

$

In Stock, only 4 left!

0

0160

Snapper 7106232AYP

HANDLE, Middle, Black

$

$

Not available

0170

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0180

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 6

0

0190

Snapper 7073826YP

PANEL, Control (w/o Ground Drive Slot)

Note: (Used on 7800946-00)

$64.99

$

Usually ships in 2-12 days

0

0190

Snapper 7106280YP

PANEL, Control, Push, With Throttle Slot

Note: (Used on 7800946-01)

$91.99

$

Usually ships in 2-12 days

0

0200

Snapper 703961

SCREW, 1/4-20 X .550, Self-Tapping, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0
