21863 - Toro 55cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower (SN: 410000000 - 999999999) Housing and Chute Assembly Parts Diagram

55cm Flex-Force Power System 60V MAX Recycler Walk-Behind Mower

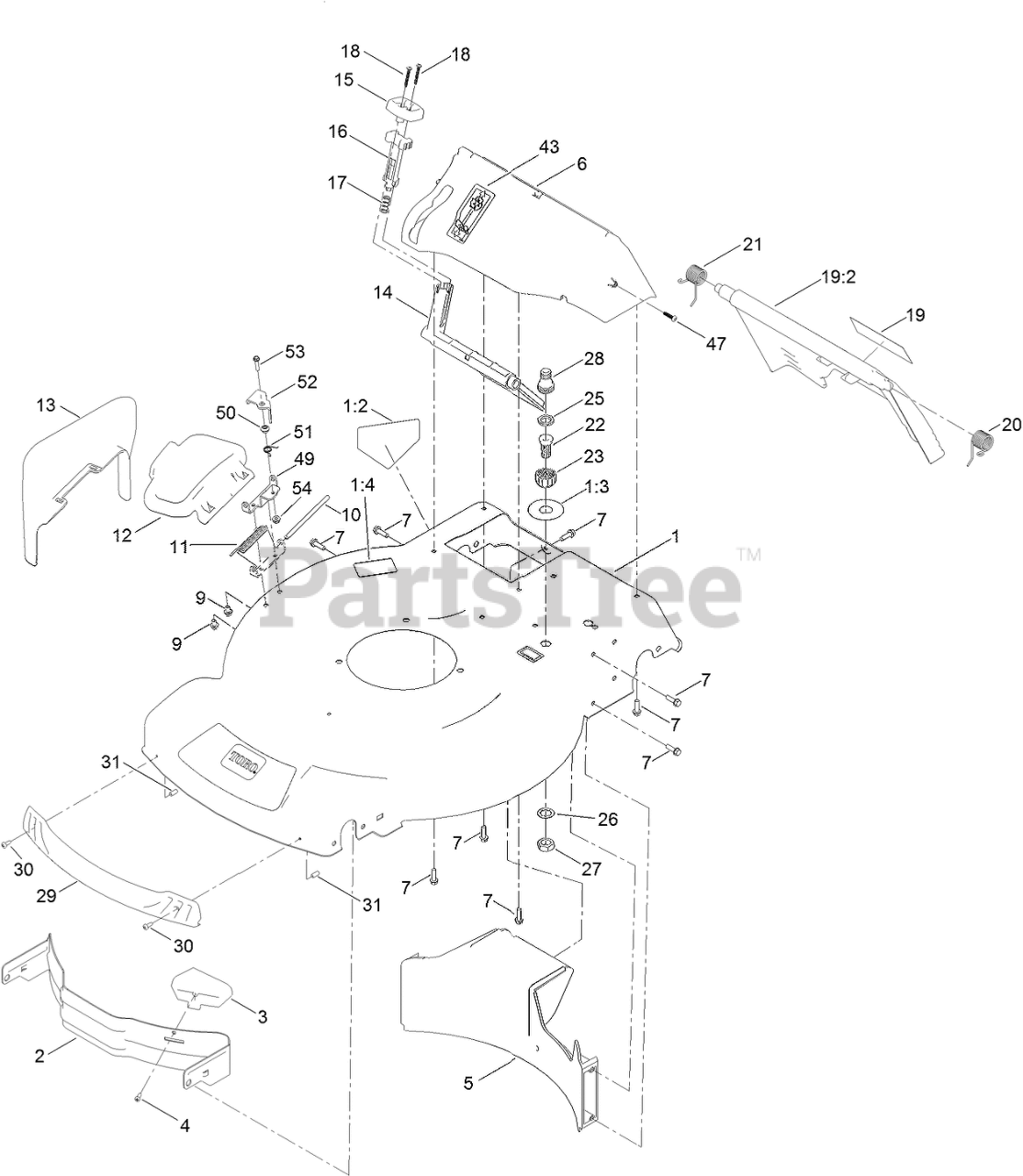

Housing and Chute Assembly Parts Diagram

  • Title

1

Toro 133-1946

HOUSING ASM

$

$

Currently unavailable

1:2

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

1:3

Toro 137-9196

DECAL-QUICK WASH

$2.49

$

In Stock, only 2 left!

0

1:4

Toro 125-5092

DECAL-PLACEMENT, FOOT

$2.49

$

Usually ships in 3-6 days

0

2

Toro 115-4667-01

BAFFLE-FRONT

$25.99

$

Usually ships in 3-6 days

0

3

Toro 115-4672

KICKER-FRONT

$11.99

$

Usually ships in 3-6 days

0

4

Toro 139-1703

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

5

Toro 139-8982

BAFFLE-REAR

$15.99

$

Usually ships in 3-6 days

0

6

Toro 136-5882

CHUTE-RECYCLE

$20.99

$

In Stock, only 1 left!

0

7

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

9

Toro 137-4795

SCREW

$1.49

$

In Stock, Qty 20+

0

10

Toro 99-5291

See Supercession: 136-8672
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 13

0

11

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

12

Toro 138-5316

DEFLECTOR-DISCHARGE, SIDE

$7.99

$

Usually ships in 3-6 days

0

13

Toro 115-8447

CHUTE-DISCHARGE, SIDE

$17.99

$

In Stock, Qty 6

0

14

Toro 114-7960

DEFLECTOR-RECYCLE

$14.99

$

Usually ships in 3-6 days

0

15

Toro 114-7958

KNOB-RECYCLE

$3.99

$

Usually ships in 3-6 days

0

16

Toro 114-7959

LATCH-RECYCLE

$5.49

$

Usually ships in 3-6 days

0

17

Toro 117-1031

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

18

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

19

Toro 137-9139

REAR DOOR ASM

$25.99

$

In Stock, only 3 left!

0

19:2

Toro 131-4514

DECAL-WARNING

$2.49

$

In Stock, only 4 left!

0

20

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

21

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

22

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, only 1 left!

0

23

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, only 1 left!

0

25

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, only 3 left!

0

26

Toro 139-1721

WASHER-LOCK, INT TOOTH

$0.99

$

Usually ships in 3-6 days

0

27

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

28

Toro 112-6437

ADAPTER-CONNECT, QUICK

$12.99

$

Usually ships in 3-6 days

0

29

Toro 114-7987

BUMPER

$12.99

$

In Stock, only 1 left!

0

30

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0

31

Toro 130-6660

CAP-PLUG

$0.99

$

In Stock, Qty 10

0

43

Toro 125-5026

DECAL

$2.49

$

Usually ships in 3-6 days

0

47

Toro 120-9676

SCREW-PLASTITE

$

$

Currently unavailable

49

Toro 138-3293

BRACKET-LOCKOUT

$4.49

$

Usually ships in 3-6 days

0

50

Toro 107-7463

SPACER

$5.49

$

In Stock, Qty 15

0

51

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, only 1 left!

0

52

Toro 138-3292

LEVER-LOCKOUT

$2.99

$

Usually ships in 3-6 days

0

53

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

54

Toro 139-1712

NUT-HEX FLANGE

$0.99

$

Usually ships in 3-6 days

0
