2186 (13A-288L100) - Cub Cadet Garden Tractor Neutral Linkage, Hydraulic Pickup And Return Tubes Parts Diagram

Garden Tractor

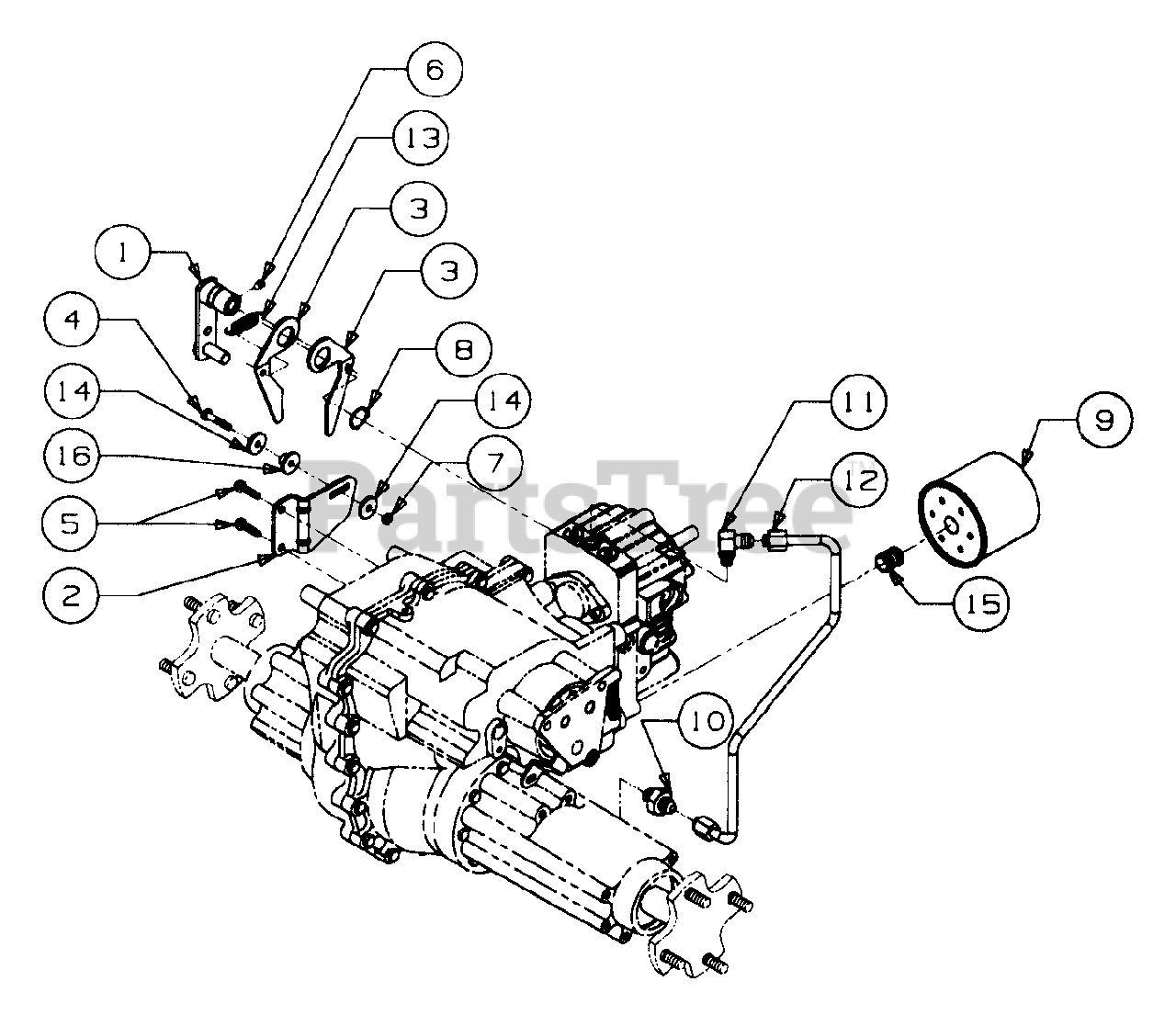

Neutral Linkage, Hydraulic Pickup And Return Tubes Parts Diagram

  • Title

1

Cub Cadet 603-0160

Arm Assembly, Control

$

$

Not available

2

Cub Cadet 703-2440

Bracket, Hydro Neutral

$

$

Not available

3

Cub Cadet 703-2441

Arm, Neutral

$7.49

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0106

Screw, Hex Cap, 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

5

Cub Cadet 710-0809

Screw, Hex Wash TT-Tap, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

6

Cub Cadet 710-3242

Screw w/Patch, Set

$

$

Not available

7

Cub Cadet 712-0324

Nut, Hex Top Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

8

Cub Cadet 716-0111

Ring, Snap, .875 Shaft

$6.99

$

In Stock, only 4 left!

0

9

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

10

Cub Cadet 727-3002

Connector, Tube 37 Deg. w/O-Ring
(Superseded to 927-3002)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.49

$

In Stock, Qty 6

0

11

Cub Cadet 727-3086

Elbow, Adjustable w/O-Ring

$

$

Not available

Cub Cadet 721-3002

O-Ring, 1/4 OD Tube

$

$

Not available

12

Cub Cadet 727-3088

Tube, Pickup

$

$

Not available

13

Cub Cadet 732-3119

Spring, Extension, .5 OD x 1.97 Lg
(Superseded to 732-3119A)

$23.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-0176

Washer, Flat, .25 x .93 x .120 Thk

$4.99

$

In Stock, only 4 left!

0

15

Cub Cadet 737-3022

Nipple, Oil Filter
(Superseded to 937-3022)

$15.99

$

In Stock, only 1 left!

0

16

Cub Cadet 750-0918

Spacer, Centering

$

$

Not available
