21853 (eS52VST) - Toro 52cm Flex-Force Power System eRecycler Walk-Behind Mower (SN: 400000000 - 999999999) Rear Wheel and Height-of-Cut Assembly Parts Diagram

52cm Flex-Force Power System eRecycler Walk-Behind Mower

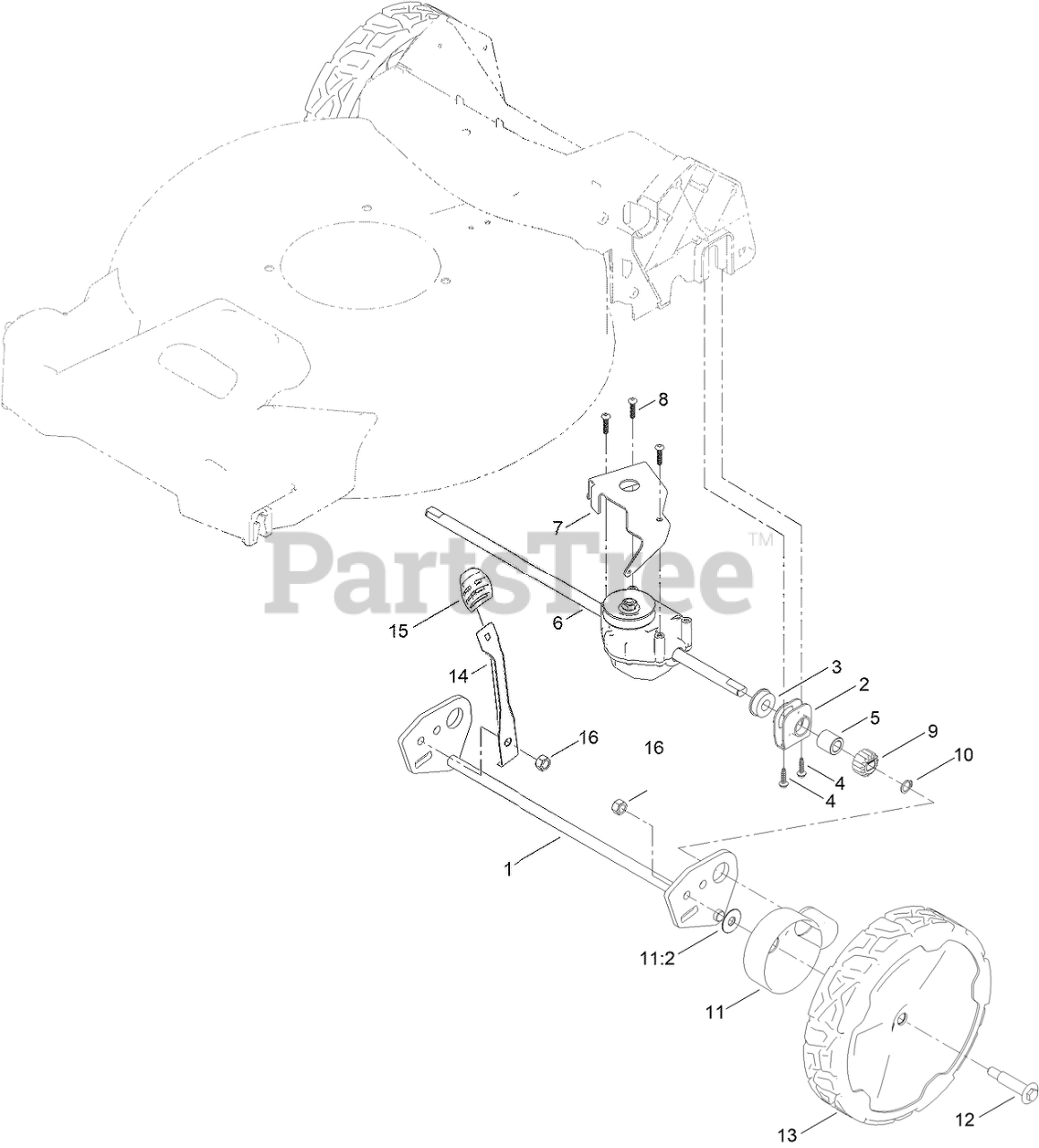

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 145-5501-03

AXLE-REAR, WA

$27.99

$

Usually ships in 0 days

0

2

Toro 138-3234

RETAINER-BEARING

$3.49

$

In Stock, Qty 7

0

3

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 17

0

4

Toro 139-1690

SCREW-PLASTIC, HWH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 127-6896

BUSHING-SLEEVE

$3.49

$

In Stock, only 4 left!

0

6

Toro 145-5515

TRANSMISSION (7:1 RATIO)

$87.99

$

In Stock, only 1 left!

0

7

Toro 145-5513-03

BRACKET-TRANSMISSION

$11.99

$

Usually ships in 0 days

0

8

Toro 120-9676

SCREW-PLASTITE

$

$

Currently unavailable

9

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

10

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

11

Toro 140-2362

ASM-COVER, GEAR (DK GRAY)

$4.49

$

In Stock, Qty 7

0

11:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

12

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 7

0

13

Toro 140-2350

ASM-9.65" WHEEL, GEARED

$34.99

$

In Stock, only 4 left!

0

14

Toro 147-0437

ARM-SPRING

$6.99

$

In Stock, only 1 left!

0

15

Toro 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, only 4 left!

0

16

Toro 603773

LOCKNUT

$2.99

$

In Stock, Qty 6

0
