21853 (eS52VST) - Toro 52cm Flex-Force Power System eRecycler Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

52cm Flex-Force Power System eRecycler Walk-Behind Mower

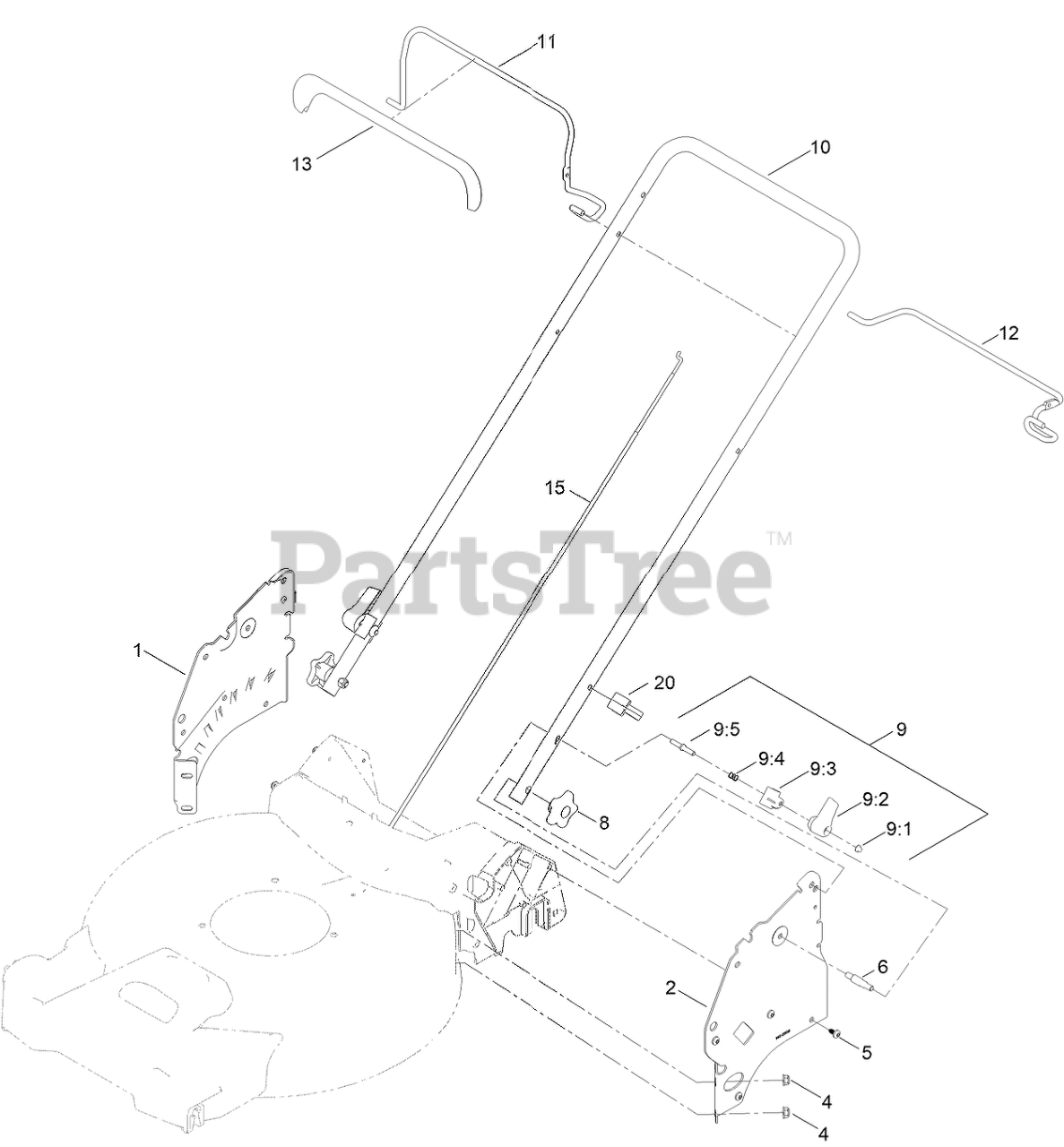

Handle Assembly Parts Diagram

  • Title

1

Toro 145-5507-05

PLATE-HANDLE, RH

$33.99

$

Usually ships in 0 days

0

2

Toro 145-5508-05

PLATE-HANDLE, LH

$33.99

$

Usually ships in 0 days

0

4

Toro 138-8401

NUT-HF

$1.49

$

In Stock, Qty 12

0

5

Toro 139-1679

SCREW-PLASTIC,PH

$0.99

$

In Stock, Qty 5

0

6

Toro 139-6588

BOLT-SHOULDER, HANDLE

$1.99

$

In Stock, only 3 left!

0

8

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, only 3 left!

0

9

Toro 138-3249

QUICK RELEASE ASM

$10.99

$

In Stock, only 2 left!

0

9:1

Toro 140-4157

NUT-PUSH

$1.99

$

Usually ships in 3-6 days

0

9:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

9:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$10.99

$

In Stock, only 2 left!

0

9:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

9:5

Toro 140-4158

ROD-RELEASE

$1.49

$

Usually ships in 3-6 days

0

10

Toro 145-5509-05

HANDLE-UPPER

$52.99

$

Usually ships in 3-6 days

0

11

Toro 138-3270-03

BAIL-BRAKE

$14.99

$

In Stock, only 1 left!

0

12

Toro 137-4799-03

BAIL-TRACTION

$16.99

$

In Stock, only 1 left!

0

13

Toro 137-4797

COVER-BAIL

$4.49

$

In Stock, only 1 left!

0

15

Toro 127-0733

CABLE-TRACTION

$17.99

$

In Stock, only 1 left!

0

20

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 12

0
